White Color Food Grade PTFE Gasket Tape with One Side Adhesive for Industrial Seal
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A3005 |
| Minimum Order Quantity | 10rolls |
| Price | neogation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 100000rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure PTFE Dispersion Resin | Color | White |
|---|---|---|---|
| Quality | Food Grade | Adhesive | One Side Adhesive Or Not |
| Cross | Rectangle Or Round | Hardness | 30-70 Shore A |
| Working Temperature | -168℃-+280℃（maximum+135℃） | ||
| Highlight | ptfe thread sealant,ptfe thread seal tape |
||
Product Description
White PTFE Gasket Tape with One-Side Adhesive
Premium expanded PTFE joint sealant tape designed for industrial sealing applications, featuring excellent flexibility, compression resilience, and superior chemical resistance.
Product Features
- Manufactured from imported Daikin PTFE material
- Excellent flexibility and compression resilience
- Superior creep resistance and non-aging properties
- Outstanding high/low temperature resistance (-168°C to +280°C)
- Excellent corrosion resistance and self-lubricity
- Available with or without backing adhesive
Application Range
- Sealing various enameled linings, glass linings, plastic linings, rubber linings, and graphite linings
- Flange faces of stainless/titanium steel towers, heat exchangers, and reactors
- Flange faces of various pipelines and pipe fittings
- Large-diameter equipment with poor surface machining accuracy
- Strongly corrosive media and fluid systems requiring contamination protection
Technical Specifications
| Material | Pure PTFE dispersion resin |
|---|---|
| Color | White, FDA grade |
| Adhesive | Backing adhesive or not |
| Surface | Smooth |
| Cross Section | Rectangle, round |
| Tensile Strength | 8 MPa |
| Hardness | 30-70 Shore A |
| Density | 0.7-1.0 g/cm³ |
| Creep Relaxation | 70% |
| Volatility | 1.0% |
| PH Range | 0-14 |
| Working Pressure | 1.6 MPa (gas), 6.4 MPa (liquid) |
| Working Temperature | -168°C to +280°C (maximum +315°C) |
| Thickness | 1.5-7.0 mm |
| Width | 2.0-1500 mm |
Standard Sizes
Square Type
| Dimensions (Width x Thickness x Length) |
|---|
| 3mm x 1.5/2.0mm x 25/50m |
| 5mm x 2.0/3.0mm x 25/50m |
| 7mm x 2.0/3.0mm x 15/25m |
| 10mm x 3.0/5.0/7.0mm x 15/25m |
| 12mm x 3.0/5.0/7.0mm x 10/15/25m |
| 15mm x 3.0/5.0/7.0mm x 10/15/25m |
| 17mm x 3.0/5.0/7.0mm x 10/15/25m |
| 20mm x 3.0/5.0/7.0mm x 10/15/25m |
| 25mm x 3.0/5.0/7.0mm x 10/15/25m |
| 30mm x 3.0/5.0mm x 5/10m |
| 35mm x 3.0/5.0mm x 5/10m |
| 40mm x 3.0/5.0mm x 5/10m |
| 45mm x 3.0/5.0mm x 5/10m |
| 50mm x 3.0/5.0mm x 5/10m |
Round Type
Ø2.4mm, Ø3.0mm, Ø4.0mm up to Ø25.0mm
PTFE Expand Sheet
1.5mm x 1500mm x 1500mm
2.0mm x 1500mm x 1500mm
3.0mm x 1500mm x 1500mm
5.0mm x 1500mm x 1500mm
2.0mm x 1500mm x 1500mm
3.0mm x 1500mm x 1500mm
5.0mm x 1500mm x 1500mm
OEM sizes available upon agreement. Packaged in round spools and cartons.
When requesting a quote, please confirm the required size and quantity.

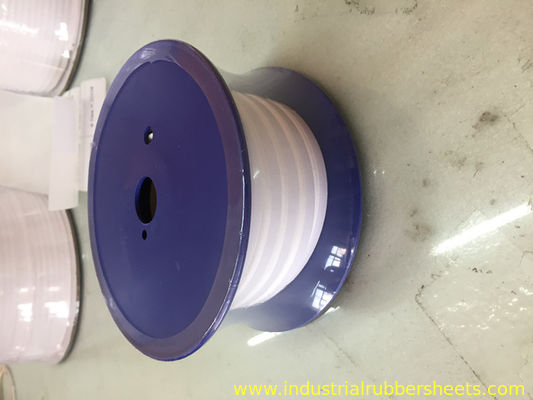

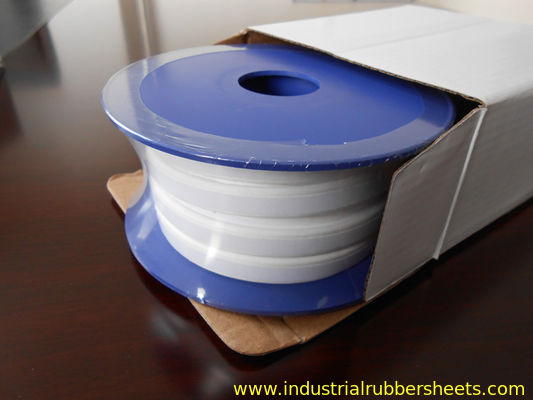

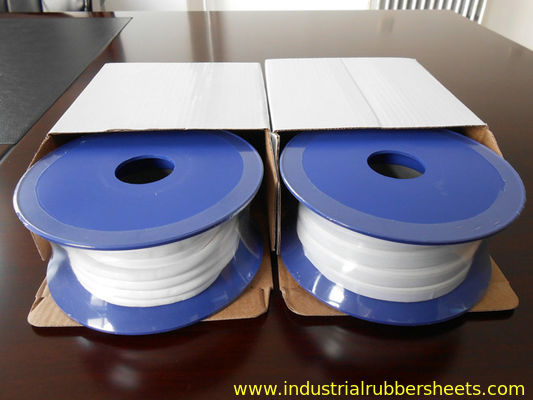

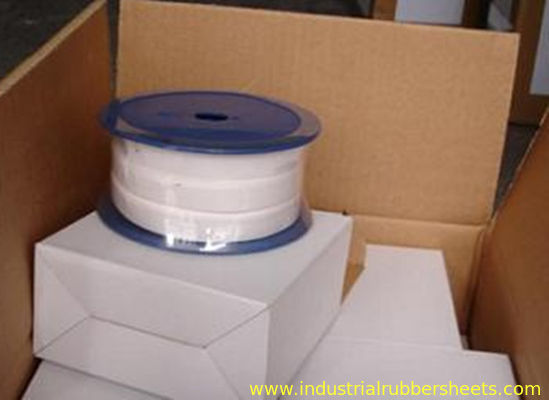

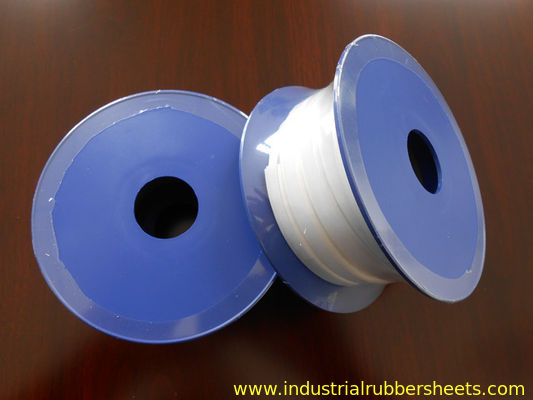

Product Images
