PTFE Expand Tape , PTFE Expand Stripe,PTFE Expand Tape Food Grade
Description:
Made from import Dakin PTFE material, the expanded PTFE joint sealant tape with self-adhesivehas have very good flexibility, compression resilience, creep resistance, high/low temperature resistance, excellent corrosion resistance, non-aging property and self-lubricity.
Application Range:
For sealing various enameled linings, glass linings, plastic linings, rubber linings, graphite linings, and the flange faces of stainless/titanium steel towers, heat exchangers, reactors, etc.;
For sealing the flange faces of various pipelines and pipe fittings;
For sealing the flange faces of large-diameter equipment with bad surface machining accuracy, large uneven area, irregular shape and bolt fastening force difficult to be enough or unsuitable to be too big;
For sealing strongly corrosive media and fluid protected against any pollution.
Specifications:
| material | pure PTFE dispersion resin |
| color | white, FDA grade |
| adhesive | backing adhesive or not |
| surface | smooth |
| cross section | rectangle, round |
| tensile strength | 8Mpa |
| hardness | 30-70shore A |
| density | 0.7-1.0g/cm3 |
| creep relaxation | 70% |
| volatility | 1.0% |
| PH | 0-14 |
| working pressure | 1.6Mpa in gas, 6.4Mpa in liquid |
| working temperature | -168°C ~ +280°C(maximum +315°C) |
| thickness | 1.5-7.0mm |
| width | 2.0-1500mm |
standard size for square type:
| 3mm x 1.5/2.0mm x 25/50m |
| 5mm x 2.0/3.0mm x 25/50m |
| 7mm x 2.0/3.0mm x 15/25m |
| 10mm x 3.0/5.0/7.0mm x 15/25m |
| 12mm x 3.0/5.0/7.0mm x 10/15/25m |
| 15mm x 3.0/5.0/7.0mm x 10/15/25m |
| 17mm x 3.0/5.0/7.0mm x 10/15/25m |
| 20mm x 3.0/5.0/7.0mm x 10/15/25m |
| 25mm x 3.0/5.0/7.0mm x 10/15/25m |
| 30mm x 3.0/5.0mm x 5/10m |
| 35mm x 3.0/5.0mm x 5/10m |
| 40mm x 3.0/5.0mm x 5/10m |
| 45mm x 3.0/5.0mm x 5/10m |
| 50mm x 3.0/5.0mm x 5/10m |
standard size for round type:
Ø2.4mm, Ø3.0mm, Ø4.0mm up to Ø25.0mm
standard size for PTFE expand sheet:
1.5mm x 1500mm x 1500mm
2.0mm x 1500mm x 1500mm
3.0mm x 1500mm x 1500mm
5.0mm x 1500mm x 1500mm
OEM sizes agreed

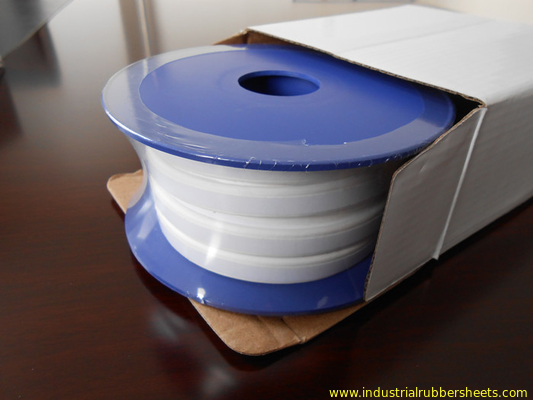

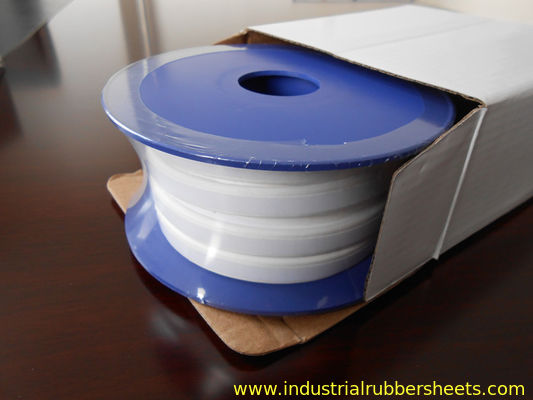

packing in round spool and cartons
***when you enquiry, pls confirm the size and quantity***Specifications:
