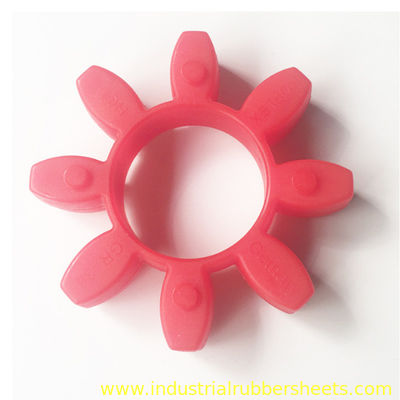

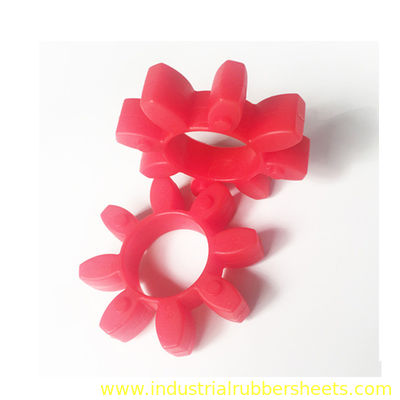

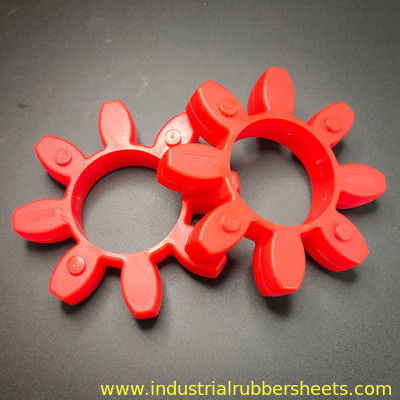

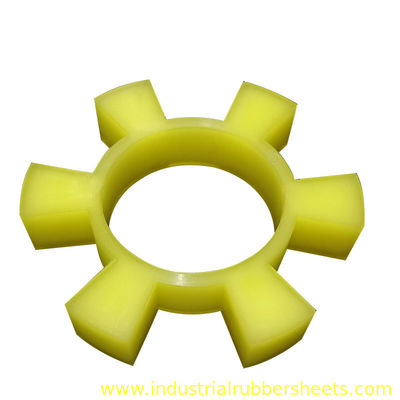

T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes

  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
  • T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 100pieces
Price neogation
Packaging Details Packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type T Type Color Yellow,red,purple,black
Surface Smooth Tensile Strength 12-50Mpa
Hardness 80-98shore A Elongation 650%
Density 1.25g/cm³ Size Standard Size
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description
All Kinds of Type PU Spider 90-98 Shore A Standard Size
Comprehensive range of polyurethane and rubber coupling spiders available in standard sizes with 90-98 Shore A hardness.
Standard Polyurethane Coupling Sizes
  • GR Series: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • MT Series: MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
  • FALK-R Series: 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Standard Rubber Coupling Sizes
  • Hb Series: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
  • NM Series: NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
  • Gear Series: 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Custom sizes available according to buyer's drawings and specifications.
When requesting a quote, please confirm product number and required quantity.
Material Specifications
Material: NBR, CSM/SBR or TPU
Color: Black, Yellow
Hardness: 80-90 Shore A
Size Range: T40-210
Working Temperature: -20°C to +100°C
Product Features
  • T type rubber coupling, T type polyurethane coupling, T type PU coupling
  • High-quality polyurethane or rubber materials
  • Excellent stability and performance
  • Easy to maintain and install
  • ISO9001-2000 certified manufacturing
Coupling Types Available
  • Jaw coupling / SBT coupling
  • Flange cast iron with insert rubber
  • Taper bore universal series
  • Keyway dimensions conform to DIN6885, GB1095-1979 standards
Pricing & Dimensions
Item No. OD (mm) ID (mm) Thickness (mm) USD/Piece (PU) USD/Piece (Rubber)
T40US$0.18
T45452010US$0.18
T5050US$0.18
T55552610US$0.18
T60602611US$0.21
T65653015US$0.21
T70703216US$0.21
T75753617US$0.28US$0.14
T80803618US$0.28US$0.16
T85854118US$0.30US$0.18
T90904118US$0.39US$0.21
T95954518US$0.39US$0.23
T1001005422US$0.49US$0.26
T1051055422US$0.53US$0.28
T1081085222US$0.62US$0.28
T1101105522US$0.71US$0.30
T1151155523US$0.85US$0.34
T1201205524US$0.88US$0.35
T1251256025US$0.97US$0.44
T1301306025US$1.04US$0.49
T1351356025US$1.15US$0.53
T1401407026US$1.18US$0.62
T1451457227US$1.24US$0.71
T1501507627US$1.34US$1.06
T1541547826US$1.76US$1.24
T1701708028US$5.29US$1.59
T18518511340US$5.65
T19019000US$6.18
T21021010036US$7.06US$3.18
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes 0
