TPU Material Polyurethane Oil Seal with 90 Shore A Hardness and Resistant Hot and Cold Temperature for Hydraulic Systems
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A6007 |
| Minimum Order Quantity | 10 sets |
| Price | negotation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 100000sets per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | TPU Material | Color | Blue+black |
|---|---|---|---|
| Type | KDAS | Hardness | 90shore A |
| Application | For Piston | Size | Standard Size |
| Highlight | silicone rubber gasket,silicone rubber seals |
||
Product Description
TPU Polyurethane Oil Seal / Hydraulic Oil Seal Resistant to Hot and Cold Temperatures
KDAS Polyurethane Piston Seal, Polyurethane Oil Seal, and Hydraulic Oil Seal designed for exceptional performance in both hot and cold temperature environments.
What is a Piston Seal
Piston seals, also known as piston packings, are mounted on a piston head that moves through the bore of hydraulic or pneumatic cylinder tubes. The inner diameter of the seal fits into a static housing/groove within the piston head. These seals can be single-acting (designed for pressure from one side only) or double-acting (designed for pressure from both sides) and are typically used in sealing systems with bearings, which may be incorporated into the seal or housed separately. Single-acting seals can also be mounted back-to-back on a piston head in separate grooves to create a double-acting arrangement.
Technical Specifications
| Function | The primary function of a piston seal is to contain pressure on one side of a piston without leakage, enabling maximum force to be applied for moving the piston along the cylinder bore. Design considerations include expected pressures, acceptable friction losses, double-acting capability requirements, and whether the piston head is integral or split. |
|---|---|
| Current Export Markets | Taiwan, Europe, America, Asia, Africa, Middle East, and other global regions |
| Production Equipment | Includes vacuum vulcanizing machines, large-scale flat vacuum vulcanizing machines, rubber processing equipment, CNC machine tools, temperature-controlled ovens, and detection instruments |
| Material Properties (PU) | Polyurethane material exhibits superior mechanical strength, high abrasion and wear resistance, excellent extrusion resistance, high pressure load capacity, along with exceptional tear and elongation at break resistance. PU also offers good flexibility and outstanding aging and ozone resistance. |
Key Advantages
- Excellent sealing performance, suitable for holding cylinders
- Capable of installation in closed grooves for reduced machining costs
- Economical sealing and guiding solution with simple snap installation
Applications
Compact seals are the recommended sealing element for double-acting pistons in hydraulic components including:
- Machine tools
- Truck cranes
- Forklifts and handling machinery
- Agricultural equipment

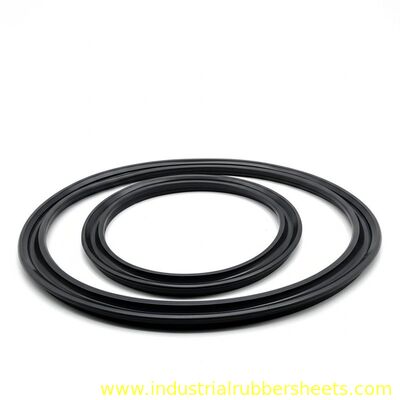

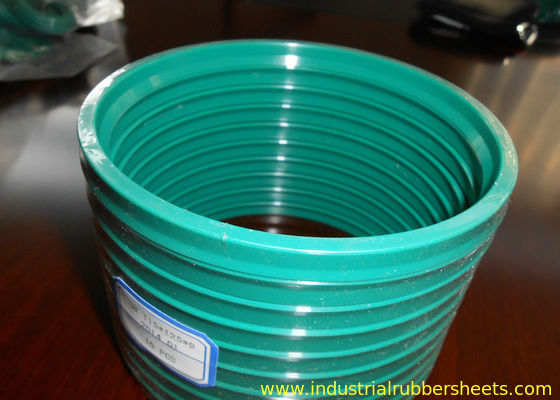

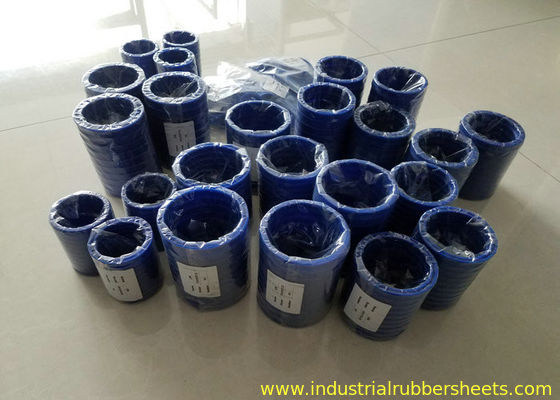

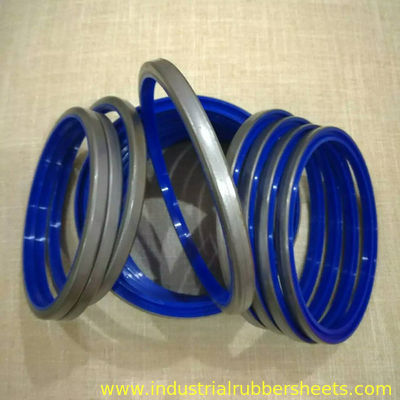

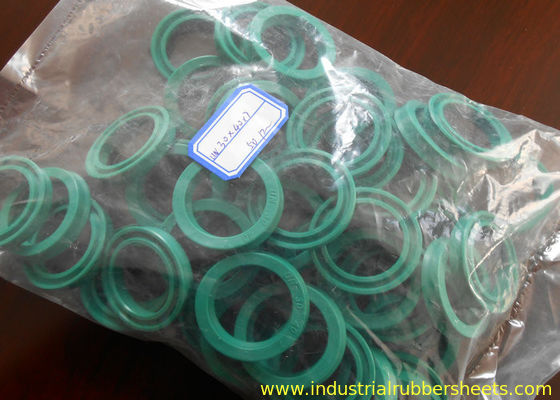

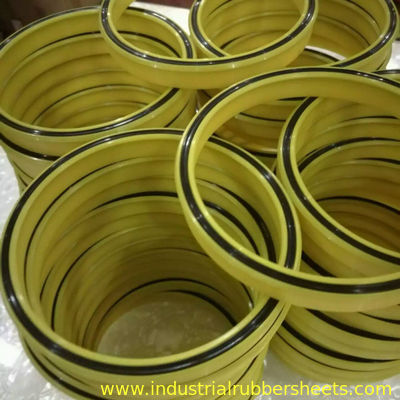

Product Images
