Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed

  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
  • Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A3007
Minimum Order Quantity 10rolls
Price negotation
Packaging Details packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 60%PTFE+40%bronze Color Brown,green
Working Temperature -60℃-+260℃ Working Speed 15m/s
Working Pressure 15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C Tensile Strength 14-16Mpa
Density 2.7-3.3g/cm³ Elongation 170%
Highlight

rubber sheet rolls

,

waterproof rubber sheet
Leave a Message
Product Description
Brown PTFE Packing Guide Stripe Tape (GST)

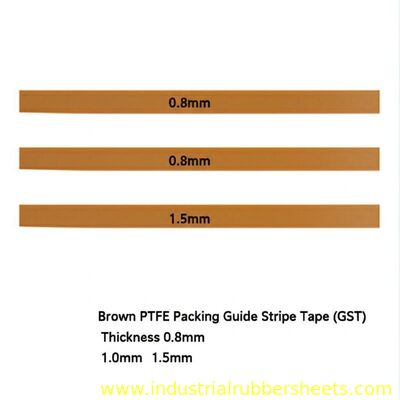

PTFE Guide Stripe Tape (GST) is a high-performance nano-polymer composite material available in thicknesses of 0.8mm, 1.0mm, and 1.5mm with brown coloration. This advanced material is specifically engineered for precision machine tools requiring high accuracy, CNC equipment, and high-end guide band applications in processing centers.
Product Overview
The guide bands contain rich solid lubricant particles that provide excellent friction and wear properties. Through advanced nano super-fine formulation, uniform and dense material structure, and superior wear resistance, these soft bands are widely used across various industries including common machine tools, textiles, printing, paper manufacturing, food processing, chemical engineering, woodworking, and other mechanical sliding guide applications, particularly in precision machine tool manufacturing and maintenance.
Technical Specifications
Material Composition 60% PTFE + 40% Bronze
Pressure Rating 15Mpa @ 25°C, 12Mpa @ 80°C, 8Mpa @ 120°C
Temperature Range -60°C to +260°C
Speed Capacity 15m/s
Wear Resistance Approximately 10 times that of cast iron guide, maintaining excellent accuracy
Creep Resistance Moves steadily without creeping
Shock Absorption Improves processing accuracy through superior vibration damping
Friction Coefficient <0.04 (only 1/3 of cast iron guide), reducing driving energy consumption
Key Features
  • Excellent lubrication suitable for dry use (depending on load conditions)
  • Superior temperature resistance across wide operating range
  • Compatible with most industrial fluids
  • Easy assembly with low friction coefficient
  • Simplified maintenance - lower hardness than metal means friction primarily affects the bands, allowing easy replacement while preventing machine tool body wear
Available Dimensions

Thickness: 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm

Width: 3.2, 4.2, 5.0, 5.6, 6.0, 6.3, 8.0, 8.1, 9.7, 10, 12, 12.7, 13, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 120, 150, 200, 300mm

Length: 10-20 meters

Custom Sizes: OEM dimensions available upon agreement

Special Options: Phenolic guide tape reinforced fabric available in red and green colors

Important: When requesting a quotation, please specify the material, color, size, and quantity requirements.
Product Gallery

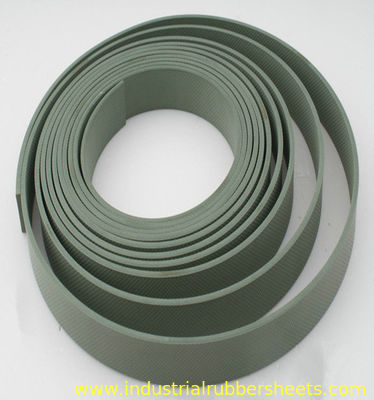

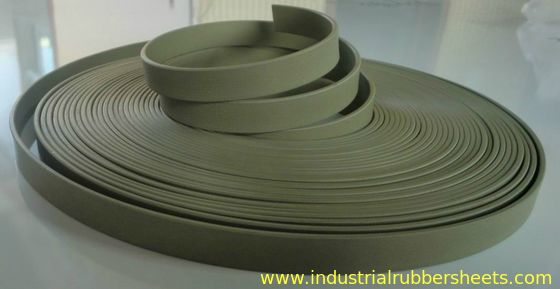

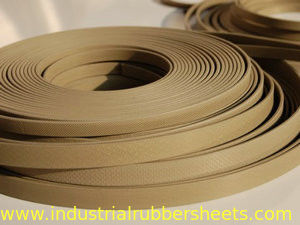

Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed 0 Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed 1 Brown PTFE Guide Stripe Tape (GST) with 60%PTFE+40%bronze for High Wearing Resistance and 15m/s Working Speed 2
