Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature

  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
  • Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A2003
Minimum Order Quantity 10rolls
Price negotation
Packaging Details packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin Polyester,polyether Or TPU Color Clear Yellow,transparent,orange,red,blue,black
Surface Smooth/smooth Tensile Strength 25-50Mpa
Elasticity Impact ＞25% Hardness 80-90shore A
Elongation 400%-600% Density 1.15-1.25g/cm³
Tear Strength 35-155kn/m Akron Abrasion Loss ＜0.05cm3/1.61km
Working Temperature 120℃
Highlight

solid plastic rods

,

hdpe bar
Leave a Message
Product Description
Red / Yellow Wear Resistant Silicone Tube Extrusion, Polyurethane Hose

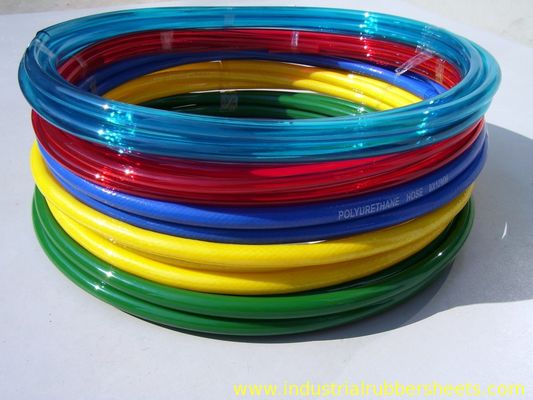

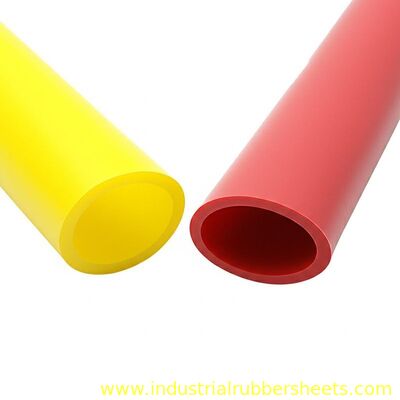

Extruded Wear Resistant Polyurethane Tube, Polyurethane Hose With Red, Yellow Color
Specifications
Material Virgin CPU or TPU
Color Transparent, orange, blue, black etc.
Surface Smooth/smooth
Tensile strength 20-50Mpa
Elasticity impact >25%
Hardness 80-95 Shore A
Elongation 650%-850%
Density 1.12-1.25g/cm³
Tear strength 35-155KN/m
Akron abrasion loss <0.05cm³/1.61km
Compression set (22h*70°C) <10%
Working temperature 120°C
Standard Sizes
Ø 8, 12mm x Ø 20-300mm x 500mm
Ø 2mm x Ø 4mm x 200m
Ø 3mm x Ø 5mm x 200m
Ø 4mm x Ø 6mm x 200m
Ø 5mm x Ø 8mm x 200m
Ø 6mm x Ø 9mm x 200m
Ø 7mm x Ø 10mm x 100m
Ø 8mm x Ø 12mm x 100m
Ø 9mm x Ø 12mm x 100m
Ø 10mm x Ø 14mm x 50m
Ø 12mm x Ø 16mm x 50m
Ø 14mm x Ø 18mm x 50m
Ø 16mm x Ø 20mm x 50m
OEM Size is available upon agreement
When you inquire, please confirm color, hardness, size and quantity
Physical Characteristics
Molded or extruded with high quality polyester, polyether or TPU. Features excellent performance in chemical erosion resistance, impregnation resistance, ozone resistance, radiation resistance, aging resistance, hydrolysis resistance, along with high tensile strength, tear resistance, high impact resistance, high bend strength and low compression set. The abrasion resistance is 5 times greater than pure natural rubber, and oil resistance is 3-5 times greater than NBR rubber, with high elasticity of 65% and prominent compression resistance at high temperatures. Wide hardness range of 80-95 Shore A, excellent adhesion with metal materials. This is a rapidly evolving new polymer material suitable for military, mining, oil fields, chemical, printing, punching, paper making, spinning, automotive industries and more.
Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature 0 Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature 1 Wear Resistant Extruded Polyurethane Hose with High Tensile Strength and 120℃ Working Temperature 2
