High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation

  • High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation
  • High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation
  • High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation
  • High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A6011
Minimum Order Quantity 100kgs
Price neogation
Packaging Details packing in pallets
Delivery Time 10-20 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 100000kgs/per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Phenolic Resin+cotton Fabric Or Paper Color Brown,beige,yellow,red
Surface Smooth Tensile Strength 78Mpa
Flexural Strength 90-110Mpa Compression Strength 138Mpa
Breakdown Voltage 10KV Density 1.25-1.40g/cm3
Heat-resistant B Class 130 Size Od8-200mm X 1m
Highlight

solid plastic rods

,

hdpe bar
Leave a Message
Product Description
High-Performance Phenolic Resin Rods for Electrical Insulation
Premium phenolic cotton fabric and paper rods engineered for superior electrical insulation performance in demanding industrial applications.
Product Specifications
Material Phenolic resin + cotton fabric or paper
Color Brown, beige, yellow, red
Surface Smooth
Tensile Strength 78 MPa
Flexural Strength 90-110 MPa
Compression Strength 138 MPa
Breakdown Voltage 10 KV
Density 1.25-1.40 g/cm³
Heat Resistance B Class 130
Size OD 8-200mm × 1m
Manufacturing Process
Phenolic cotton fabric laminated rods are manufactured using cotton fabric impregnated with phenolic resin. The material is heated into prepreg and rolled into rod shapes, then placed into molds of various diameters. The final curing process occurs under high temperature and pressure to produce rigid laminated rods suitable for mechanical and electrical applications.

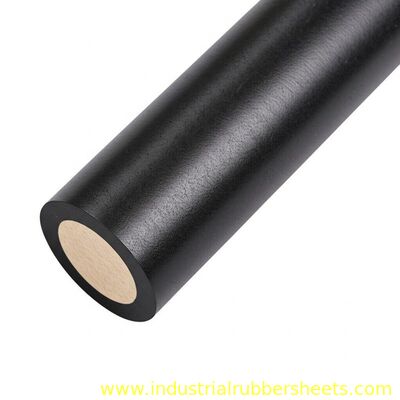

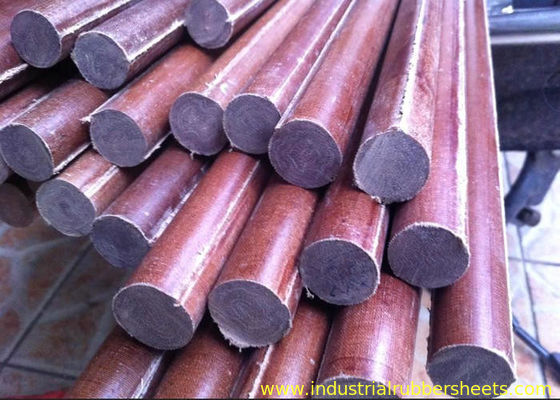

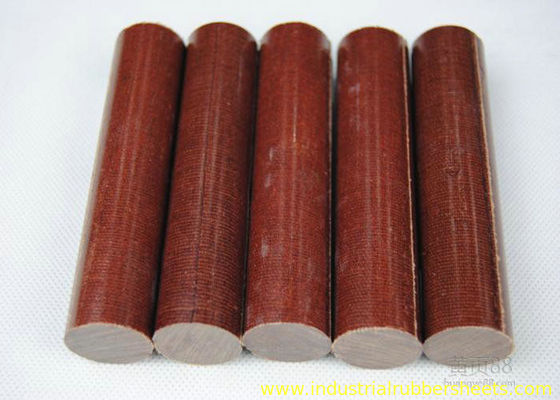

Product Images
High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation 0 High Performance Phenolic Resin Rod with 10KV Breakdown Voltage, B Class 130 Heat-Resistant and 90-110Mpa Flexural Strength for Electric Insulation 1
