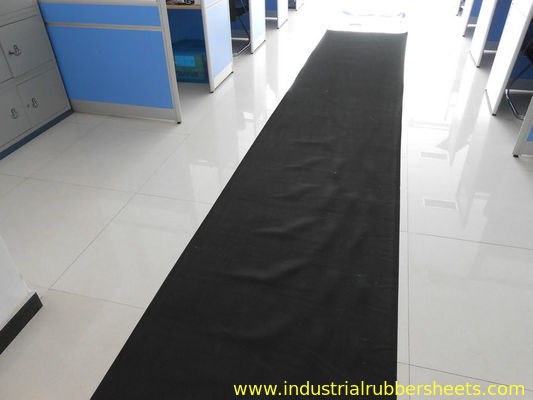

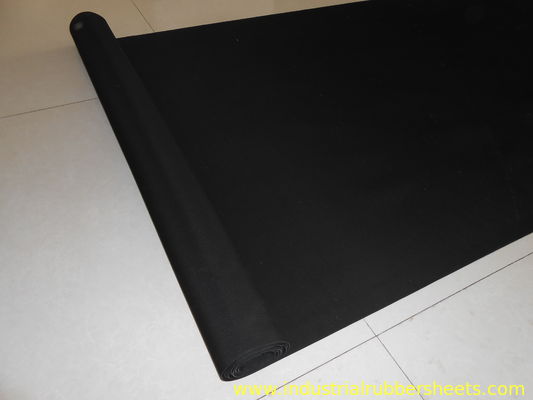

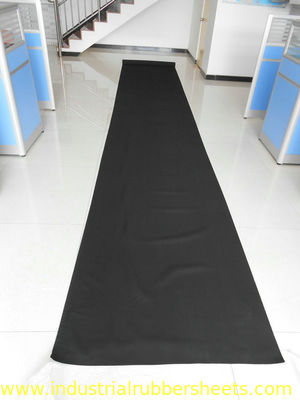

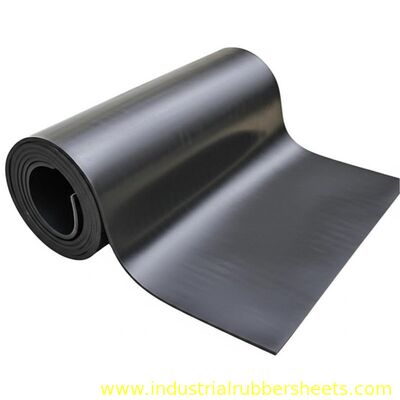

20m Length Industrial Rubber Sheet with Virgin Nitrile Rubber and EP Fabric Insertion for Gasket Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5004 |
| Minimum Order Quantity | 200kgs |
| Price | negotation |
| Packaging Details | Packed in rolls or pallets |
| Delivery Time | 10-20 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 100000kgs per month |
Product Details
| Material | Virgin Nitrile+EP Fabric Or Polyester Fabric | Quality | Premiun Grade |
|---|---|---|---|
| Color | Black | Surface | Smooth |
| Tensile Strength | 9+16Mpa | Hardness | 60+/-5 Shore A |
| Elongation | 350% | Density | 1.4g/cm³ |
| Working Temperature | -30℃-+100℃ | Thickness | 1.0-6.0mm |
| Width | 1-2.0m | Length | 1-20m |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description
20m Length Industrial Rubber Sheet / Virgin Nitrile Rubber Gasket Sheet
Premium quality nitrile rubber sheet and gasket material manufactured for industrial applications. Engineered with virgin nitrile rubber reinforced with 1-3 ply EP fabric or polyester fabrics, delivering medium hardness with high tensile strength and exceptional resistance to fuel oil, lubricating oil, and transformer oil.
Key Features & Benefits
- Excellent fuel oil and lubricating oil resistance
- Safety certified and non-toxic without odor
- High tensile strength with optimal elongation properties
- Temperature range: -30°C to +100°C
- Food grade white NBR rubber sheet option available
- Reinforced with 1-3 ply polyester or EP fabric insertion
Manufacturing Process
Sheets with 1-6mm thickness are produced using drum-type vulcanizing press (ROTOCURE) for superior surface finish, while 7-80mm thickness sheets utilize standard vulcanizing press technology to achieve higher thickness specifications.
Technical Specifications
| Material Composition | Virgin nitrile rubber + EP fabrics or polyester fabrics |
| Quality Grade | Premium grade |
| Color | Black |
| Surface Finish | Smooth/Smooth |
| Tensile Strength | 9-16 MPa |
| Hardness | 60±5 Shore A |
| Elongation | 350% |
| Density | 1.40 g/cm³ |
| Working Temperature | -30°C to +100°C |
| Thickness Range | 0.5-6.0mm |
| Width Range | 1.0-2.0m |
| Length Range | 1-20m |
Applications
Ideal for punching various seals, gaskets, and custom shapes. Suitable for covering mechanical equipment and industrial applications involving lubricating oil, transformer oil, and gasoline environments. White NBR rubber sheet variant meets food grade requirements.
Industrial Applications: Oil-resistant gaskets, mechanical seals, equipment covers, industrial machinery components, fuel system seals, transformer insulation, food processing equipment
