Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength

  • Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength
  • Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength
  • Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength
  • Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength
  • Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 100pieces
Price neogation
Packaging Details Packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Hb Type Color Yellow, Red,blask,purple
Surface Smooth Tensile Strength 12Mpa
Hardness 80shore A Elongation 350%
Density 1.25g/cm³ Size Standard Size
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description

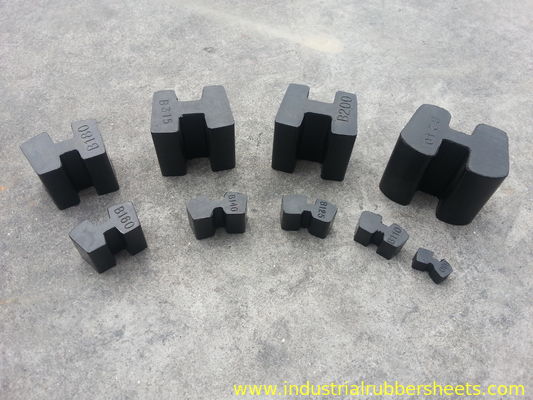

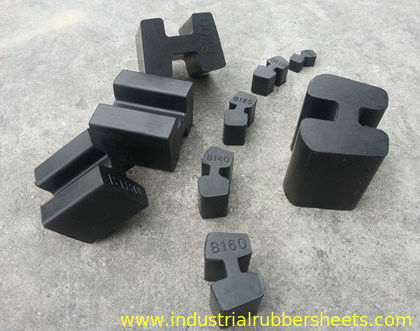

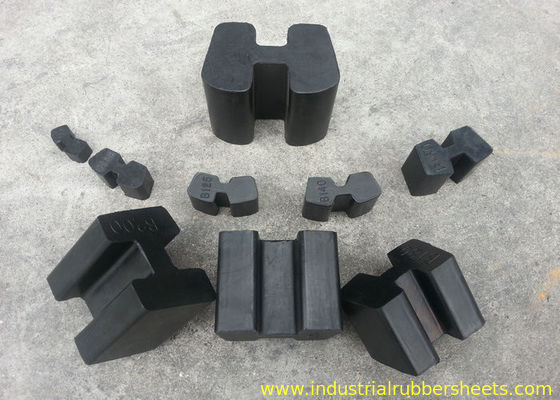

Hb Type Smooth Surface CSM and SBR Rubber Coupling
High quality Hb Type rubber coupling manufactured with black CSM and SBR rubber materials. These couplings are designed specifically for all types of metal shaft couplings, offering exceptional performance characteristics including high tensile strength, superior wear resistance, excellent elastic resilience, water resistance, oil resistance, outstanding fatigue resilience, and high impact resistance.
Material Composition & Manufacturing
Produced through injection molding using high-quality polyester or CSM/SBR materials. We maintain comprehensive mold sets and supply a full range of coupling series including GR, GS, MT, Hb, HRC, L, NM, and Gear J series with exceptional quality and manufacturing expertise.
Technical Specifications
Material Polyester, CSM/SBR
Color Yellow, Red, Purple, Green, Black, etc.
Surface Smooth
Tensile Strength 12-55 MPa
Hardness 80-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 KN/m
Akron Abrasion Loss <0.05 cm³/1.61 km
Compression Set (22h*70°C) <10%
Working Temperature 120℃
Standard Polyurethane Coupling Sizes
GR14
GR19
GR24
GR28
GR38
GR42
GR48
GR55
GR65
GR75
GR90
GR100
GR110
GR125
GR140
GR160
GR180
MT1
MT2
MT3
MT4
MT5
MT6
MT7
MT8
MT9
MT10
MT11
MT12
MT13
HRC70
HRC90
HRC110
HRC130
HRC150
HRC180
HRC230
HRC280
L35
L50
L70
L75
L90/95
L99/100
L110
L150
L190
L225
L276
FALK-R 10R
FALK-R 20R
FALK-R 30R
FALK-R 40R
FALK-R 50R
FALK-R 60R
FALK-R 70R
FALK-R 80R
Standard Rubber Coupling Sizes
Hb80
Hb95
Hb110
Hb125
Hb140
Hb160
Hb180
Hb200
Hb240
Hb280
Hb315
HRC70
HRC90
HRC110
HRC130
HRC150
HRC180
HRC230
HRC280
L35
L50
L70
L75
L90/95
L99/100
L110
L150
L190
L225
NM50
NM67
NM82
NM97
NM112
NM128
NM148
NM168
NM194
NM214
NM240
NM265
Gear 3J
Gear 4J
Gear 5J
Gear 6J
Gear 7J
Gear 8J
Gear 9J
Gear 10J
Gear 11J
Custom Manufacturing
Special sizes can be manufactured according to buyer's drawings and specifications.
Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength 0 Hb Type Smooth Surface Rubber Coupling with 1.25g/cm3 Density and High Tensile Strength 1
When submitting an inquiry, please confirm the specific product number and required quantity.
