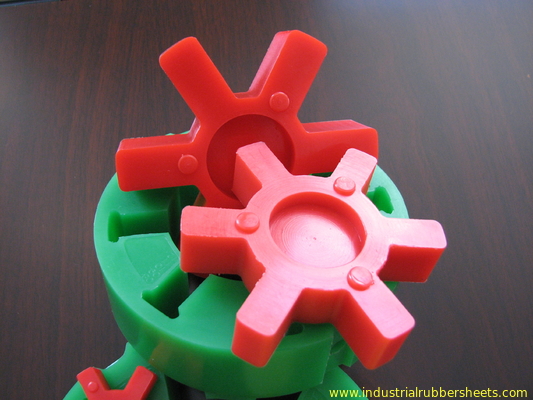

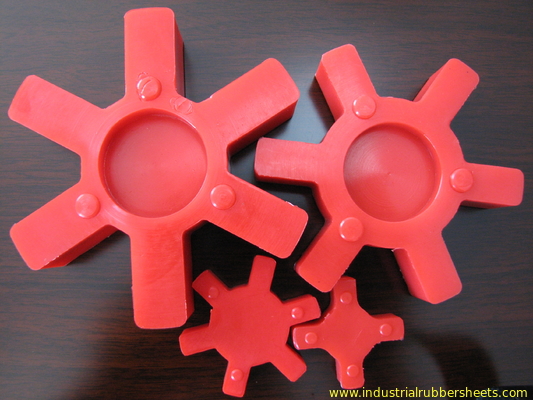

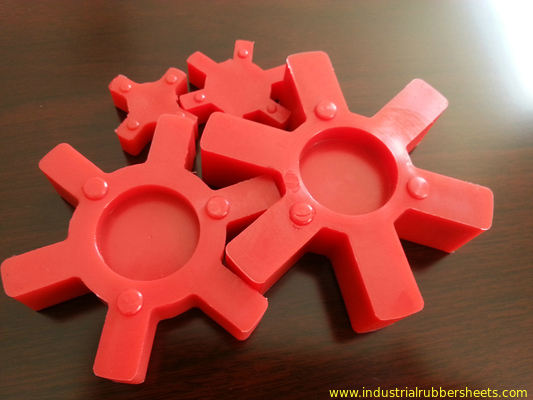

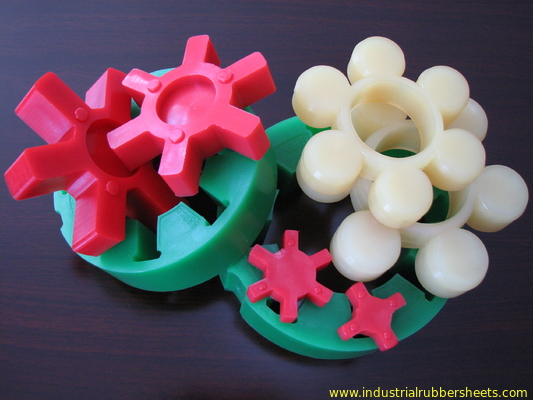

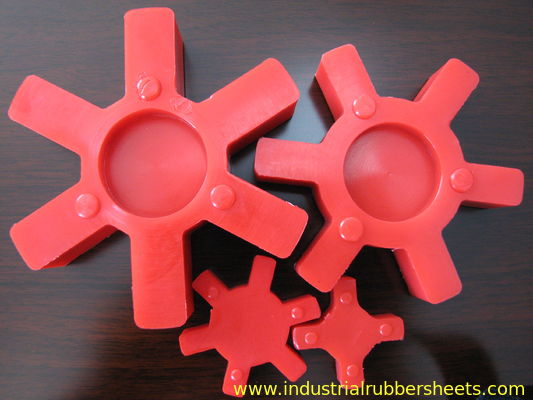

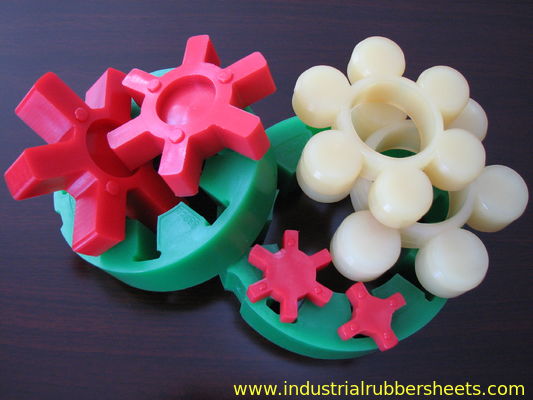

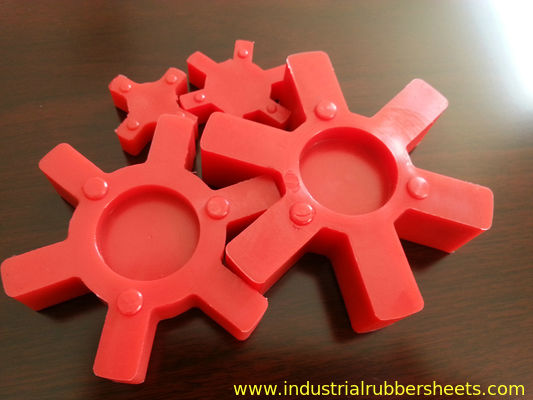

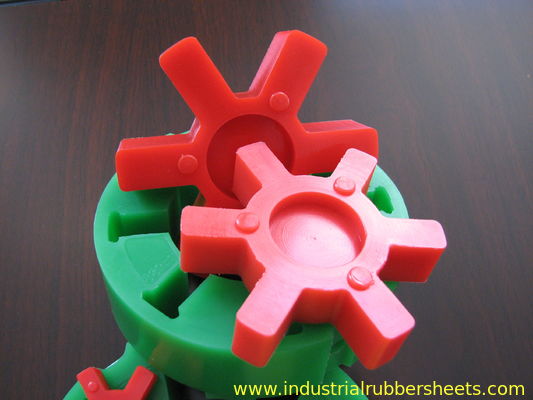

L Type PU Coupling, Polyurethane Coupling WIth All Kinds Of Color
Material: |
NBR, CSM/SBR Or TPU | Color: | Black, Red |
| Hardness: | 80-98shore A | Size: | L035-225 |
| Working Temperature: | -20oC - +100oC |
L type rubber coupling , L polyurethane coupling , L PU coupling
Specifications
1. Material :Cast iron GG25
2. Good stability
3. Easy to maintain
4. ISO9001-2000 certificate
Coupling:
1. Jaw coupling/ HRC coupling / KC coupling / FL coupling
2. Flange cast iron, Insert Bubber
3. Taper bore universal series
4. Keyway dimensions conform to DIN6885,GB1095-1979 standards.
Size |
Type | A | B | D | E | Standard | Metric Bore | Inch Bore | ||
| Bore | Min | Max | Min | Max | ||||||
| L035 | 1 | 16 | 20.5 | 6.6 | -- | 3 | 3 | 8 | 1/8" | 3/8" |
| L050 | 1 | 28 | 43.2 | 15.6 | -- | 6 | 6 | 15 | 3/16" | 5/8" |
| L070 | 1 | 35 | 50.8 | 19 | -- | 9 | 9 | 19 | 3/16" | 3/4" |
| L075 | 1 | 45 | 54.7 | 21 | -- | 9 | 9 | 25 | 3/16" | 1" |
| L090 | 1 | 54 | 54.7 | 21 | -- | 9 | 9 | 28 | 3/16" | 1 1/8" |
| L095 | 1 | 54 | 63.7 | 25.5 | -- | 9 | 9 | 28 | 3/8" | 1 1/8" |
| L099 | 1 | 64.5 | 72.5 | 27 | -- | 12 | 12 | 35 | 7/16" | 1 3/8" |
| L100 | 1 | 64.5 | 88.5 | 35 | -- | 12 | 12 | 35 | 7/16" | 1 3/8" |
| L110 | 1 | 85 | 108 | 43 | -- | 15 | 15 | 48 | 1/2" | 1 7/8" |
| L150 | 1 | 96 | 115.4 | 45 | -- | 15 | 15 | 48 | 5/8" | 1 7/8" |
| L190 | 1 | 115 | 133.4 | 54 | 101.6 | 19 | 19 | 55 | 5/8" | 2 1/4" |
| L225 | 1 | 127 | 153.4 | 64 | 108 | 19 | 19 | 65 | 3/4" | 2 5/8" |
Others standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity**
