Smooth Surface Polyurethane Coupling 35-155KN/M Tear Strength , 400%-650% Elongation

1piece
MOQ
USD1-10.00 per piece
Price
Smooth Surface Polyurethane Coupling 35-155KN/M Tear Strength , 400%-650% Elongation
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Rubber, Polyurethane
Color: Black Color
Type: HRC Type
Hardness: Rubber 70Shore A, Polyurethane 90Shore A
Tensile Strength: 8Mpa
Elongation: 300%
Density: 1.4g/cm3
Size: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
Moq: 1piece
High Light:

pu coupling

,

rubber coupling

Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Model Number: 3A2006
Payment & Shipping Terms
Packaging Details: Packing in Cartons
Delivery Time: 5-10days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram, Paypal, Western Union
Supply Ability: 10000pieces/month
Product Description

HRC Rubber Coupling , HRC Coupling , Polyurethane Coupling , PU Coupling of HRC70, HRC90, HRC110, HRC130, HRC150, HRC180



Item HRC280 HRC230 HRC180 HRC150 HRC130 HRC110 HRC90 HRC70
OD(mm) 252 201 160 133 115.3 95.8 72.4 58.3
ID(mm) 119.4 97 76 62 49.4 43.7 31.2 29.6
Thickness(mm) 50.4 42.3 32 28 22 19.4 15.4 11.9
Weight(g) 1500 780 400 270 155 90 55 20

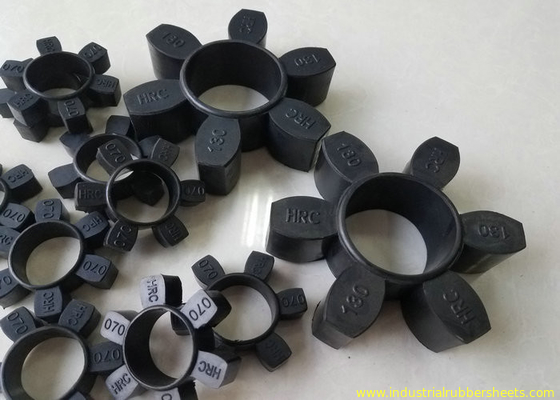

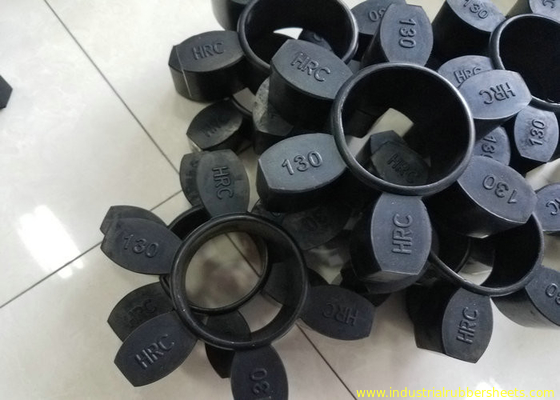

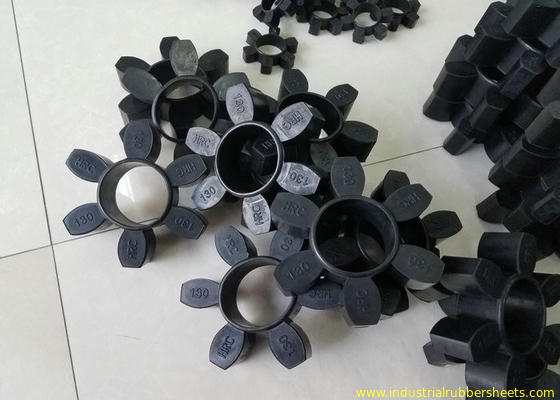

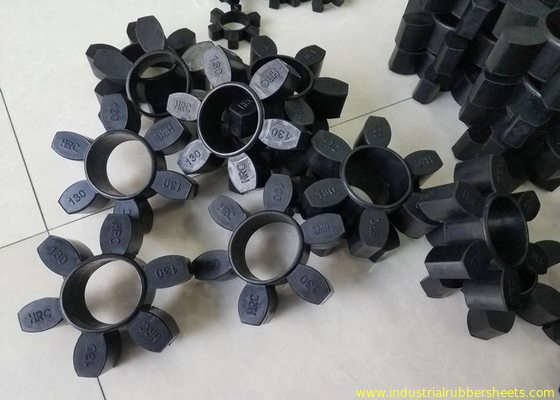

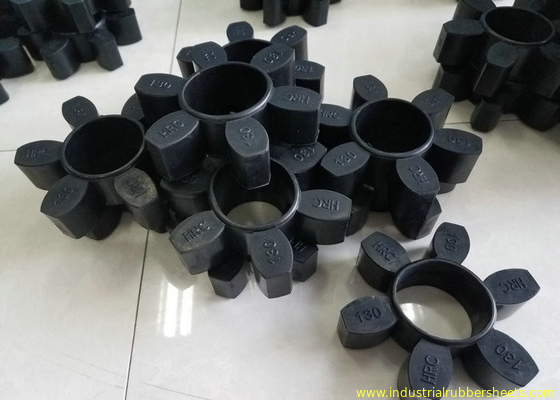

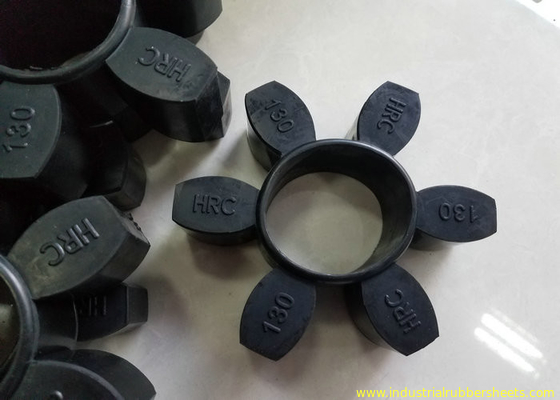

Smooth Surface Polyurethane Coupling 35-155KN/M Tear Strength , 400%-650% Elongation 0

Smooth Surface Polyurethane Coupling 35-155KN/M Tear Strength , 400%-650% Elongation 1

Smooth Surface Polyurethane Coupling 35-155KN/M Tear Strength , 400%-650% Elongation 2

Description: the polyurethane coupling, rubber coupling are made by injection with high quality TPU material or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of GR, GS, MT, ML, MH, Hb, HRC, L, T, NM and Gear J series couplings etc. with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.



Specifications:
material: TPU, CSM/SBR, NBR, nylon etc.
color: yellow, red, purple, green, black, beige etc.
surface: smooth
tensile strength: 8-55Mpa
hardness: 70-98Shore A
elongation: 400%-650%
density: 1.25g/cm3
elasticity impact: >25%
tear strength: 35-155KN/m
akron abrasion loss: <0.05cm3/1.61km
compression set (22h*70oC): <10%
working temperature: 120oC
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
SBT T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210



standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10
FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#
FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 13J, 14J
Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H
Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160
SBT T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T210

standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
M28, M32, M38, M42, M48, M58, M65
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
