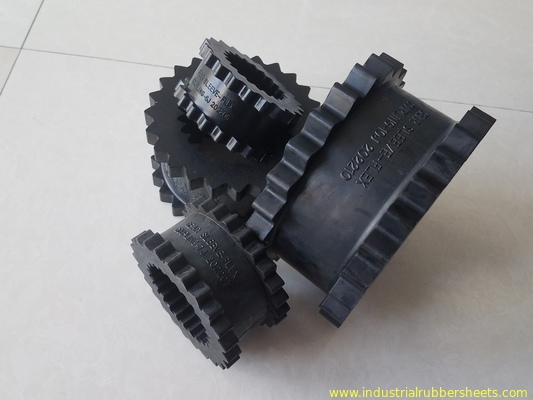

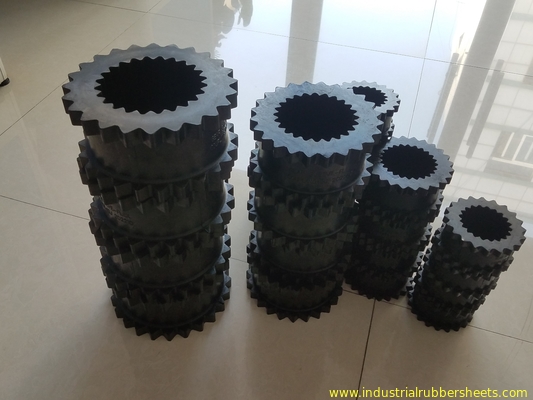

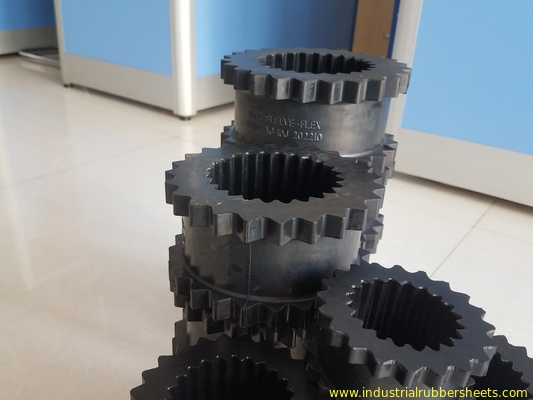

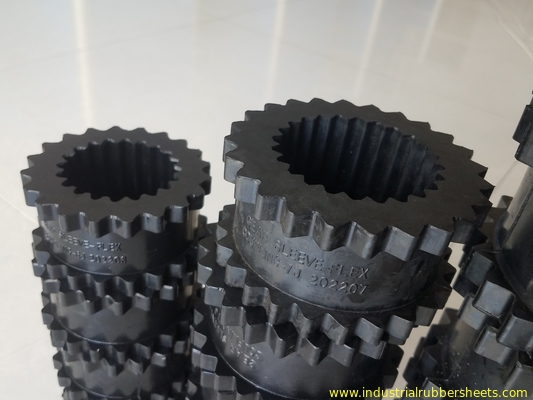

Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications

  • Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications
  • Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications
  • Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications
  • Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications
  • Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications
Place of Origin China
Brand Name 3Arubber
Certification RoHS/FCC/SGS
Model Number 3A2006
Minimum Order Quantity 10pieces
Price negotation
Packaging Details packed in cartons
Delivery Time 10 working days after recieved your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 10000kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material NBR,CSM/SBR ,Polyurethane Color Black,red
Tensile Strength 12-55Mpa Hardness 80-98 Shore A
Elongation 350% Density 1.25g/cm³
Size 3J,4J,5J,6J,7J,8J,9J,10J,11J
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description
Black Color 3J - 11J Gear Rubber Polyurethane Coupling For Air Compressor
High-performance black color 3J - 11J gear rubber coupling and polyurethane coupling specifically designed for air compressor applications.
Key Features
  • Couplings for Air Compressors
  • Serious Production Lines
  • Top quality with reasonable price
  • Personalized packaging
  • OEM provided, A&V Checked
Technical Design
Claw type surface-to-surface design provides protection functions, with vibration and shock absorption capabilities that produce effective damping and reduce running-in process. The claw type teeth two sleeves are offset circumferentially, with quincunx elastic body of involute in the gap. When small installation deviations occur, the elastic body prevents stress concentration. Effectively compensates for axial, radial, and angular displacement. Compared to traditional column pin coupling elastomers with large volume and shear effects that are prone to damage, the new claw type couplings operate under extrusion pressure only, enabling greater load capacity, superior wear resistance, and extended service life. Suitable for both horizontal and vertical installation.
Specifications
Material Polyester, CSM/SBR
Color Yellow, red, purple, green, black etc.
Surface Smooth
Tensile Strength 12-55 Mpa
Hardness 80-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 KN/m
Akron Abrasion Loss <0.05 cm³/1.61 km
Compression Set (22h*70°C) <10%
Working Temperature 120°C
Standard Sizes Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Special sizes can be custom manufactured according to buyer's drawings. Please confirm product number and quantity when making an enquiry.
Product Gallery

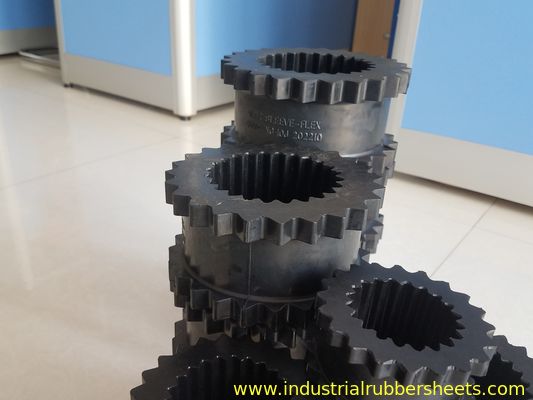

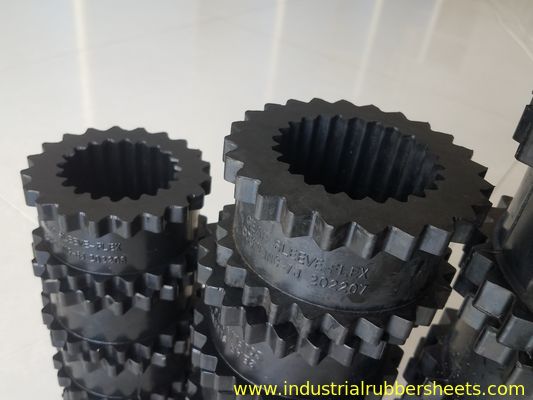

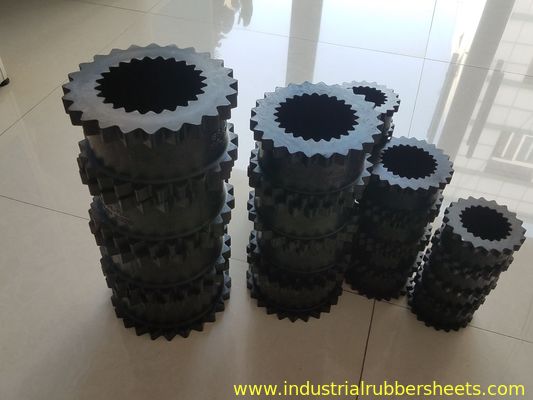

Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications 0 Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications 1 Black Color 3J - 11J Size Range Polyurethane Gear Coupling for Air Compressor Applications 2
