Product Details
Material TPU Color Green
Hardness 97shore A Size Falk 10R-80R
Standard Falk USA Working Temperature -20oC - +100oC
Highlight

pu coupling

,

rubber coupling
Leave a Message
Product Description

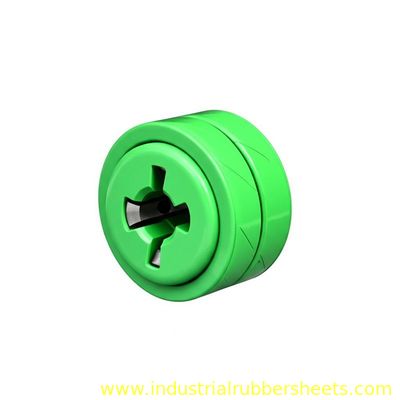

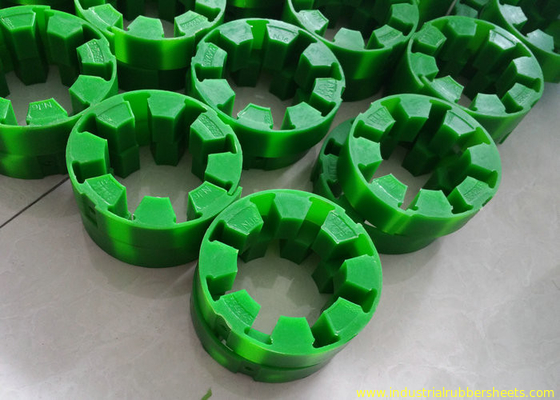

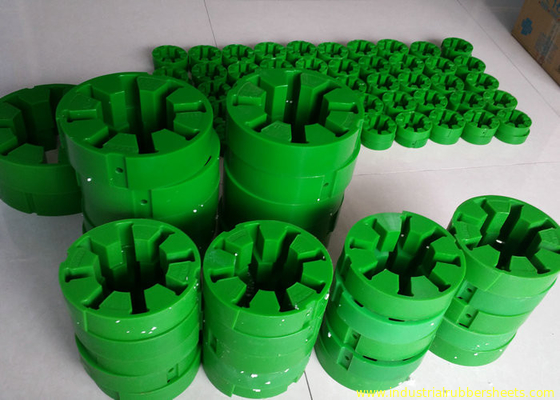

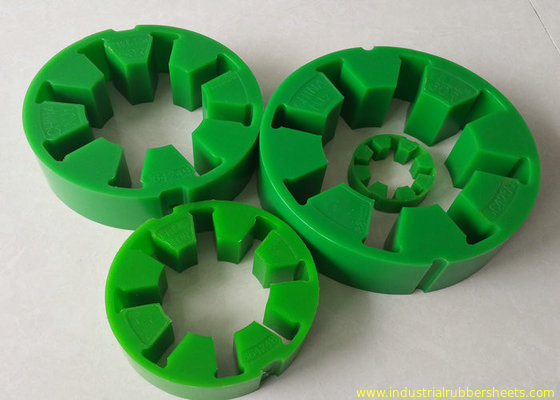

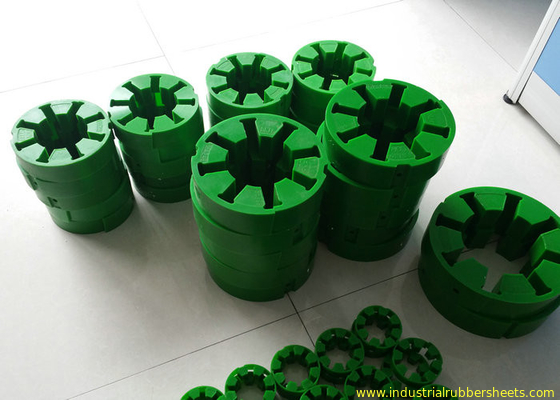

High Tensile Strength Falk Coupling R10 - R80 With Green Polyurethane 97 Shore A

High Tensile Strength Green Polyurethane Coupling 97 Shore A Falk 10R - 80R is manufactured through injection molding using high-quality polyester. Designed specifically for all types of metal shaft couplings, it delivers exceptional performance with high tensile strength, superior wear resistance, excellent elastic resilience, and resistance to water and oil. The coupling also features outstanding fatigue resilience and high impact resistance.

We maintain complete mold sets and supply the full range of Falk R couplings with consistent high quality and extensive manufacturing experience. Suitable for all industrial metal shaft coupling applications.

Key Specifications
  • Material: Polyester
  • Color: Green
  • Surface: Smooth
  • Tensile Strength: 55Mpa
  • Hardness: 97Shore A
  • Elongation: 650%
  • Density: 1.25g/cm³
  • Elasticity Impact: >25%
  • Tear Strength: 155KN/m
  • Akron Abrasion Loss: <0.05cm³/1.61km
  • Compression Set (22h*70°C): <10%
  • Working Temperature: 100°C
Standard Sizes
Size OD (mm) ID (mm) Thickness (mm) Gear Qty Color Hardness
Falk 10R 80 49 23 8 Green 97Shore A
Falk 20R 114 61 31 8 Green 97Shore A
Falk 30R 131 74 35 8 Green 97Shore A
Falk 40R 164 82 47 8 Green 97Shore A
Falk 50R 210 106 60 8 Green 97Shore A
Falk 60R 250 140 65 8 Green 97Shore A
Falk 70R 293 164 72 8 Green 97Shore A
High Tensile Strength Green Polyurethane Falk Coupling 10R-80R with 97 Shore A Hardness 0
Additional Standard Sizes Available
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Custom sizes can be manufactured according to buyer's specifications. Please confirm product number and quantity when inquiring.
