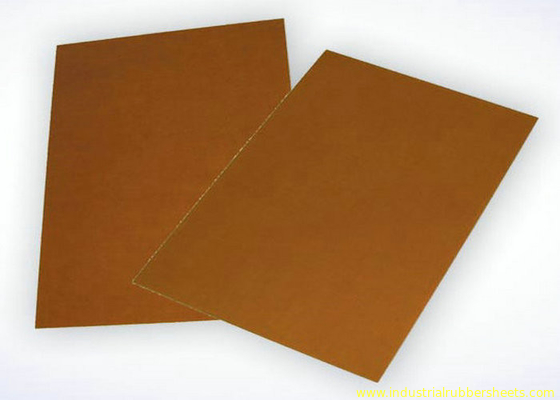

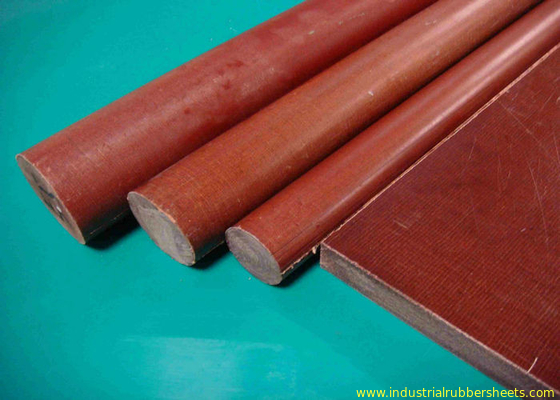

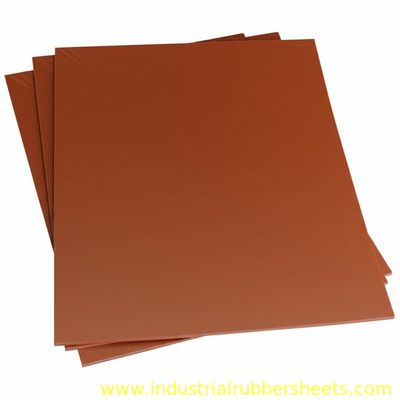

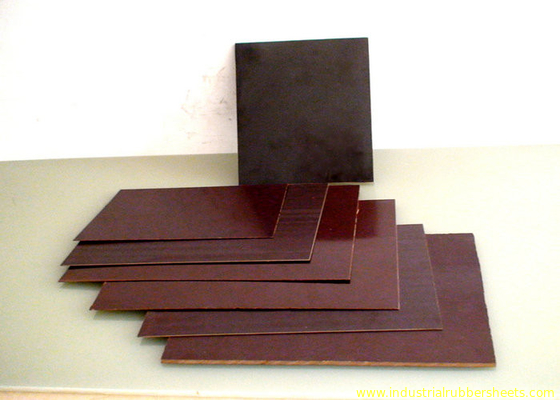

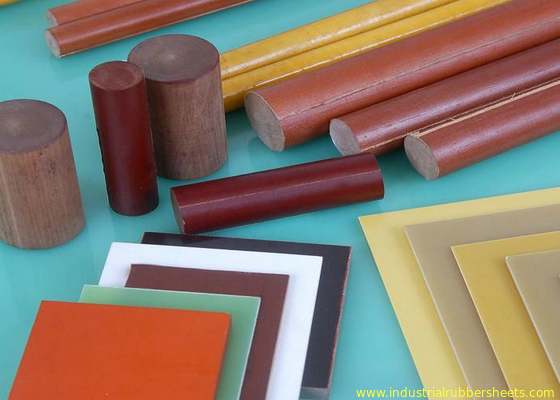

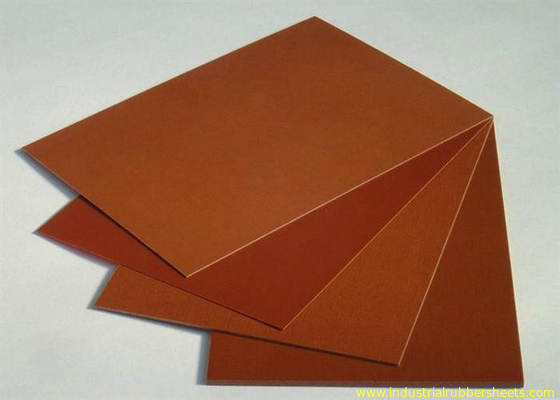

78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m

  • 78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m
  • 78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m
  • 78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m
  • 78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m
  • 78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A6011
Minimum Order Quantity 100kgs
Price USD2.80/kg
Packaging Details packing in pallets
Delivery Time 10-20days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability 100000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Phenolic+cotton Color Brown, Red, Beige, Yellow
Surface Smooth Tensile Strength 78Mpa
Breakdown Voltage 10KV Size 1-80mm X 1m X 2m
Highlight

coloured plastic sheets

,

translucent colored plastic sheets
Leave a Message
Product Description

phenolic cotton sheet , bakelite cotton sheet , insulation cotton sheet , cotton laminate sheet



Description: phenolic cotton sheet. A hard, dense material made by applying heat and pressure to layers of paper or glass cloth impregnated with phenolic resin with good electrical properties, good mechanical properties, no water absorption, high heat resistance, good surface hardness, abrasion resistance, good insulation. These layers of laminations are usually of cellulose paper, cotton fabrics, synthetic yarn fabrics, glass fabrics or unwoven fabrics. When heat and pressure are applied to the layers, a chemical reaction (polymerization) transforms the layers into a high-pressure thermosetting industrial laminated plastic. Apply to PCB fixture, ICT fixture, pads of drilling machine, gear, motor, generator, transformer, fixture inverter, switch, electric insulation part, generator, transformer, fixture, inverter, motor and electric insulation component.

Specification:
materuial: phenolic resin+cotton fabric
color: brown, beige, yellow, red
surface: smooth
tensile strength: 78Mpa
flexural strength: 90-110Mpa
compression strength: 138Mpa
breakdown voltage: 10KV
density: 1.25-1.40g/cm3
heat-resistant: B class 130
size: 1-80mm x 1m x 2m



Properties

Grade

insulation bakelite rod

Properties

Units

3723

3724

3725

3726

Density

　

Dia(mm)

g/cm3

1.25-1.40

1.25-1.40

1.25-1.40

1.25-1.40

Water absorption rate (D-24/23)

≤

6

%

1.7

1

1.2

1

13

1.3

(Φ13mm)

(Φ13mm)

(Φ13mm)

25

1

　

　

　

>

25~51

1.2

　

　

　

Flexural strength

≥

　

MPa

90

95

110

95

Tensile strengh

≥

　

MPa

78







Compression strength (Axial)

≥

　

MPa

138

138

138

138

Insulation resistance parallel to laminations

　







A: Under normal condition

≥

　

W

1.0×108

　

　

　

D-24/23: Immersion in water

≥

　

W









Breakdown voltage parallel to laminations (in transformer oil)

≥

　

KV

10

10

10

10

　

(20±5°C)

(20±5°C)

(20±5°C)

(20±5°C)

Flammability

　

　

-

-

-

-

-

Color

　

　

-

Natural

Natural

Natural

Natural

Reference standard

　

　

-

Enterprise Standard



78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m 078Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m 1

78Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m 278Mpa Insulation Phenolic Cotton Sheet / Bakelite Cotton Sheets 1-80mm X 1m X 2m 3
