High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet

Name: High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet
Brand: 3A Rubber
SKU: 3A6013
Price: 2.80 USD
Availability: InStock
Rating: 4.6 (107 reviews)
ISBN: 7589961

Large Image : High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet

Product Details:

Place of Origin:	China
Brand Name:	3A Rubber
Certification:	ISO9001
Model Number:	3A6013

Payment & Shipping Terms:

Minimum Order Quantity:	50kgs
Price:	USD2.80/kg
Packaging Details:	packing in crates
Delivery Time:	2-3weeks
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000kgs/month

Contact Now

Detailed Product Description

Material:	Phenolic+cotton	Color:	Brown, Orange, Black
Surface:	Smooth	Tensile Strength:	78Mpa
Compression Strength:	138Mpa	Density:	1.25-1.40g/cm3
Rated Voltage:	10KV
High Light:	coloured plastic sheets , translucent colored plastic sheets

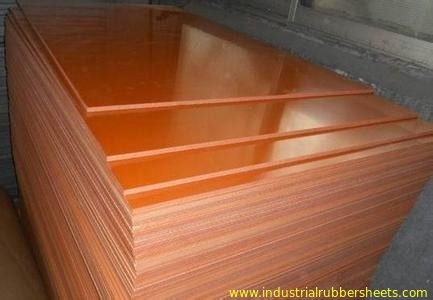

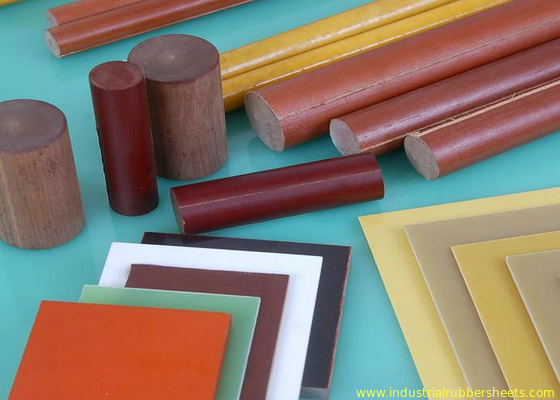

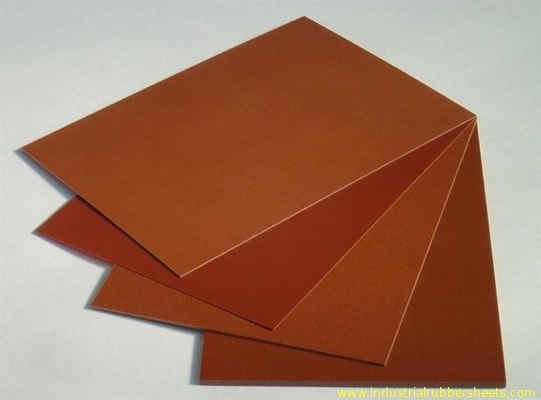

Phenolic Sheet, Bakelite Sheet, Cotton Sheet, Insulation Sheet for High Voltage Application

Bakelite is called phenolic paper laminated sheet. A hard, dense material made by applying heat and pressure to layers of paper or glass cloth impregnated with phenolic resin. These layers of laminations are usually of cellulose paper, cotton fabrics, synthetic yarn fabrics, glass fabrics or unwoven fabrics. When heat and pressure are applied to the layers, a chemical reaction (polymerization) transforms the layers into a high-pressure thermosetting industrial laminated plastic.

Color: orange red / Black

Good electrical properties
Good mechanical properties
No water absorption
High heat resistance
Good surface hardness
Abrasion resistance
Good insulation

Application
PCB fixture, ICT fixture, pads of drilling machine
Gear, motor, generator, transformer, fixture inverter
Switch, electric insulation part
Generator, transformer, fixture, inverter, motor and electric insulation component.

Properties				Grade

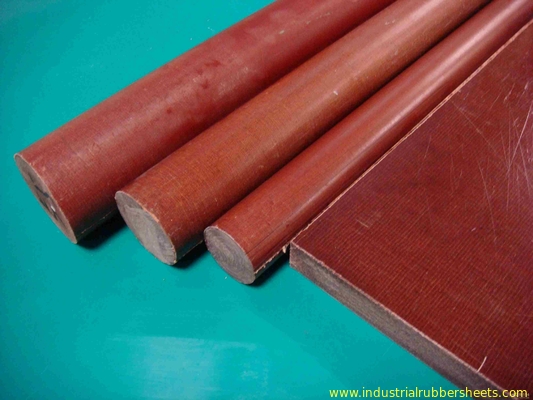

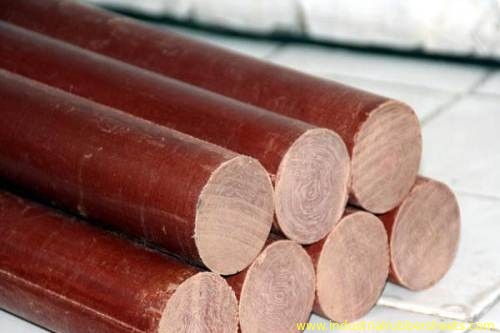

Properties				Phenolic Cotton Cloth laminated Rod
Properties	Units			3723	3725	3726
Density		Dia(mm)	g/cm3	1.25-1.40	1.25-1.40	1.25-1.40
Water absorption rate (D-24/23)	≤	6	%	1.7	1.2	1
		13		1.3	(Φ13mm)	(Φ13mm)
		25		1
	>	25~51		1.2
Flexural strength	≥		MPa	90	110	95
Tensile strengh	≥		MPa	78
Compression strength (Axial)	≥		MPa	138	138	138
Insulation resistance parallel to laminations
A: Under normal condition	≥		W	1.0×108
D-24/23: Immersion in water	≥		W
Breakdown voltage parallel to laminations (in transformer oil)	≥		KV	10	10	10
	≥		KV	(20±5°C)	(20±5°C)	(20±5°C)
Flammability			-	-	-	-
Color			-	Natural	Natural	Natural
Reference standard			-	Enterprise Standard

High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet 0

High Voltage Coloured Phenolic Sheet, Bakelite Sheet , Cotton Sheet , Insulation Sheet 1
