Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength

  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
  • Bakelite Rod Phenolic Rod with 1.25-1.40g/cm3 Density 78Mpa Tensile Strength and 138Mpa Compression Strength
Place of Origin China
Brand Name 3A Rubber
Certification ISO9001
Model Number 3A6013
Minimum Order Quantity 50kgs
Price USD2.80/kg
Packaging Details packing in crates
Delivery Time 2-3weeks
Payment Terms L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability 1000000kgs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Brown, Orange, Black Surface Smooth
Material Phenolic+cotton Tensile Strength 78Mpa
Compression Strength 138Mpa Density 1.25-1.40g/cm3
Rated Voltage 10KV OD 10-200mm
Length 1-3m
Highlight

nylon round bar

,

hdpe bar
Leave a Message
Product Description

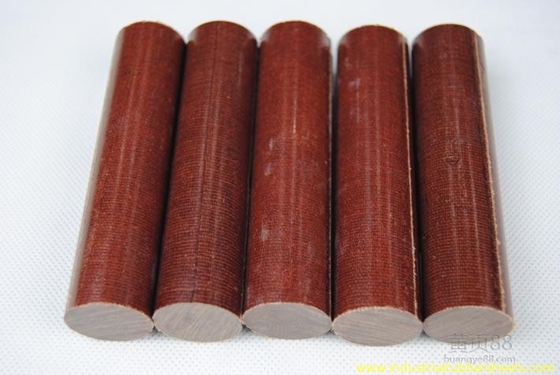

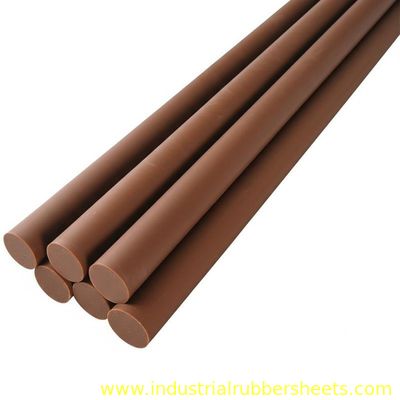

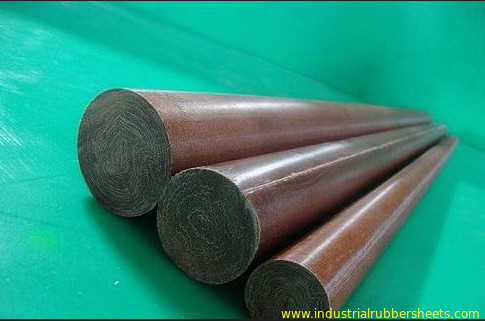

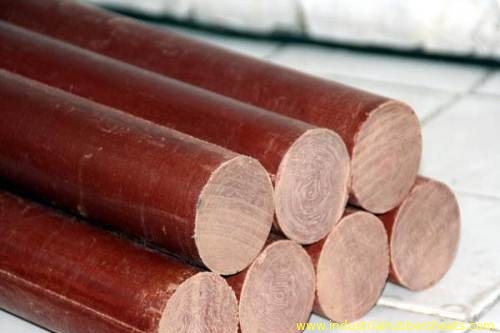

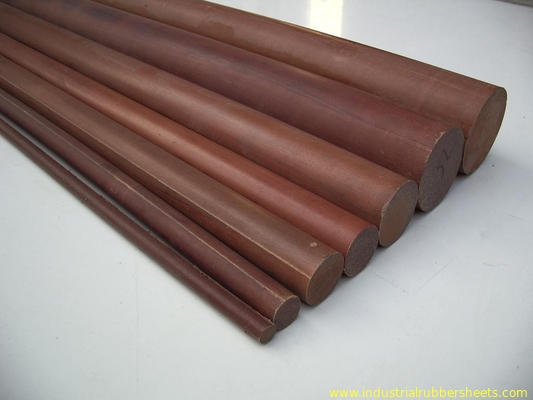

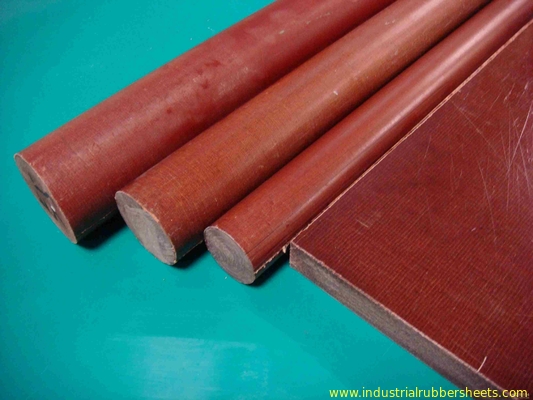

Bakelite Insulation Cotton Rod / Brown Phenolic Rod 1.25-1.40g/Cm3 Density
What is Bakelite?
A. Bakelite:
  • Bakelite (sometimes spelled Baekelite) is a combination of phenol, formaldehyde, and wood flour. The mixture is put under pressure, and after curing, a hard plastic material forms.
  • Bakelite 3021: Also called Paper-based phenolic laminated sheet, consists of impregnated paper dipped in resin by baking and hot pressing. 3021 is the most commonly seen laminate, with the widest applications and largest usage.
  • Bakelite 3025: Also called Phenolic cotton cloth laminated sheet, consists of cotton cloth dipped in phenolic resin by baking hot pressing. 3025 is manufactured by modified phenolic resin as binder and pure cotton fabric as reinforcement. They have exceptionally good heat resistance and will not creep under high temperature conditions.
B. Bakelite Sheet / Rod Features
  • Excellent physical, mechanical and dielectric properties
  • Withstand all kinds of machining
  • Surface smooth, no bubbles, hemp eye and impurities
  • Edges cutting tidiness, Surface without delamination and crack
C. Bakelite Sheet / Rod Applications
  • In insulating structural parts
  • Electric equipments
  • Aeronautical industries
Specification of Our Bakelite Sheet / Rod
A. The Size We Can Produce of Bakelite Sheet
Item 3021 3025
Color Brown, Orange Black, Red, Coffee
Thickness 3-100mm
Width*Length 1220*2440mm, 2000*1000mm, or customized
B. The Size We Can Produce of Bakelite Rod
Item 3025 Bakelite Rod
Color Black, Red, Coffee
Diameter 20-150mm
Length 1000mm, 2000mm, or customized
C. The Technical Parameters of Our Bakelite Rod
Item Unit Value
Density g/cm3 1.45
Heat resistance ℃ 140
Water absorption % < 1.5
Flammability class UL94 HB
Bending strength MPa ≥ 120
Compression strength MPa ≥ 250
Tensile strength MPa ≥ 100
Insulation resistance (After flooding) Ω 1.0*107
Packaging & Shipping
Packaging
  • Pallet with carton
  • Plastic pallet with carton
  • Wooden pallet with wooden case
  • According to customer requirements
Delivery
  • Stock size: 3-5 working days
  • Custom size: 8-15 working days
