TYPES |
OUTSIDE DIAMETER MM |
WALL THICKNESS MM |
LENGTH MM |
|
pressed pipe |
1~25 |
0.1~2.5 |
produced under requirements |
|
extruded pipe |
25~200 |
1.5~8 |
produced under requirements |
|
die pressed pipe |
25~1200 |
5~500 |
100~300 |
1. Use virgin ptfe resin to make
2. The size is :
a) OD1mm~25mm,wall thickness 0.1mm~2.5mm
b) OD25mm~400mm,wall thickness1.5mm~8mm
c) OD25~1200mm,wall thickness5mm~500mm
3. tolerance : -0.1~+0.1mm
4. Color: natural white,red,yellow,black.
5. Surfact: smooth,no impurities,no black spot.
6. Wall thickness is uniform.
7. Perfect package : inside is plastic paper ,outside is fumigation wooden box.
8. Delivery time is usually 10days,as can according to the fact quantity to deliver.
|
PROPERTIES |
UNIT |
RESULT |
|
apparent density |
g/cm3 |
2.10~2.30 |
|
tensile strength(min) |
Mpa |
18 |
|
crack elongation(min) |
% |
230 |

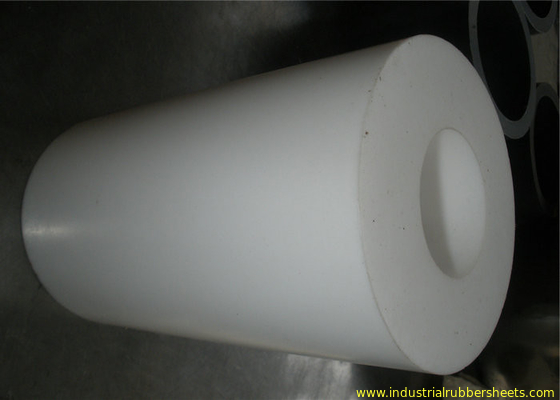

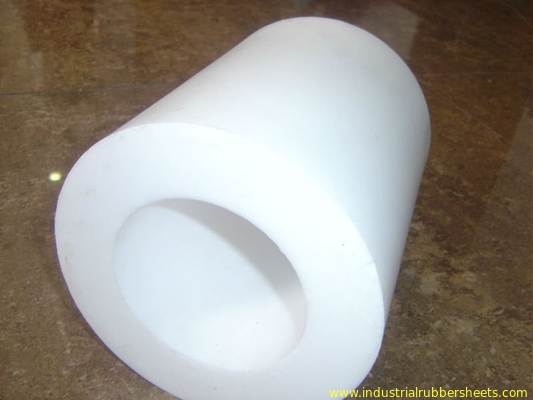

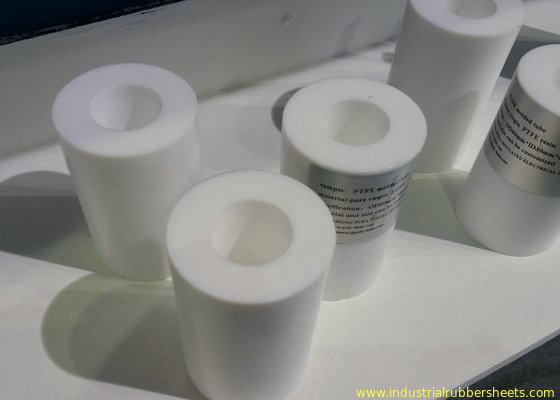

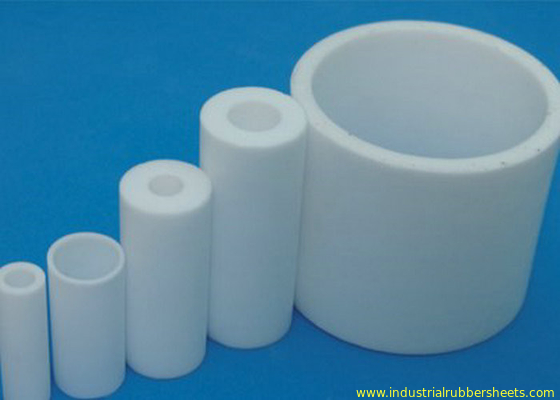

There are three types of PTFE pipes:for a pipe with outside diameter 1~25mm and thickness
of wall 0.1~2.5mm,we choose imported polymized ptfe resin and process it by pressing:for a pipe
with outside diameter25~200mm and thickness of wall 1.5~8mm,we choose suspended ptfe resin
and process it by extruding;for a pipe with outside diameter25~1200mm and thickness of wall 5~500mm,
we process it by die pressing.
