Virgin Fluorubber FKM Rubber Sheet with High Temperature and Chemical Resistance for Industrial Use
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A5007 |
| Minimum Order Quantity | 100kgs |
| Price | USD12-18.00/kg |
| Packaging Details | Packing in rolls and pallets |
| Delivery Time | 7-15days |
| Payment Terms | T/T,L/C,Paypal,Western Union,D/P,Alipay,Wechat |
| Supply Ability | 10000kgs per month |
Product Details
| Material | Virgin Fluorubber | Color | Black, Green, Red, White |
|---|---|---|---|
| Surface | Smooth | Tensile Strength | 8Mpa |
| Hardness | 75shore A | Size | 1-10mm X 0.5-2m X 0.5-20m |
| Highlight | PTFE mesh screen,PTFE mesh conveyor belt |
||
Product Description

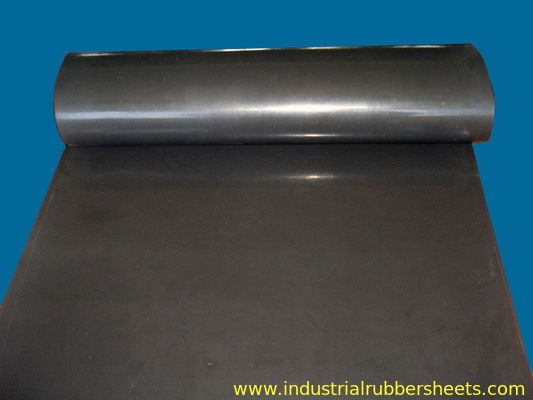

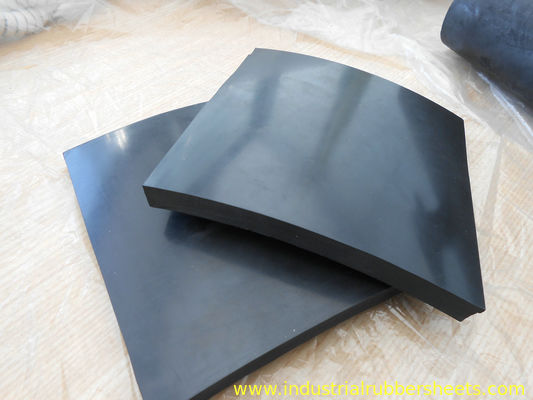

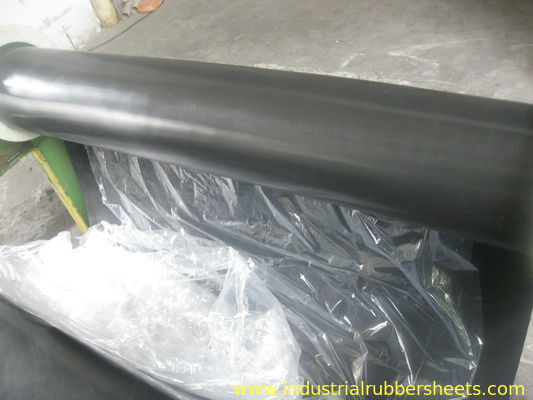

FKM Rubber Sheet / FPM Rubber Sheet / Fluorubber Sheet
Product Overview
FKM Rubber is a globally recognized high-performance synthetic rubber sheet engineered for demanding industrial applications. These sheets offer exceptional resistance to hydrocarbons, chemicals, oils, and high temperatures, making them suitable for critical sealing and gasket applications across various industries.
Key Features
- Excellent chemical resistance
- Superior heat resistance up to 250°C
- Exceptional sealing capability
- Heavy-duty performance
- Excellent pressure resistance
- Resistance to acids, alkalis, and harsh chemicals
- Fire resistance properties
- High flexibility and fair impact resistance
Physical Properties
| Property | Value |
|---|---|
| Density | 1.95 g/cm³ |
| Hardness Range | 75 ± 5 Shore A |
| Tensile Strength Range | 7 MPa |
| Elongation at Tear Point | 250% |
| Compression Return | 45% |
| Flexibility | Flexible |
| Impact Resistance | Good Flexibility |
| Bounce Tolerance | 18 kgf/cm |
Temperature Performance
| Temperature Parameter | Range |
|---|---|
| Low Temperature Range | -30°C to -0°C |
| Continuous Low Temperature Use | -30°C |
| High Temperature Range | 250°C to 260°C |
| Continuous High Temperature Use | 230°C |
Environmental Performance
| Environmental Factor | Performance Rating |
|---|---|
| Ignition Resistance | Excellent |
| Gas Permeability | Excellent |
| Ozone Resistance | Excellent |
| Oxidation Resistance | Excellent |
| Weather Resistance | Excellent |
| Water Resistance | Excellent |
Applications
FKM Rubber Sheets are ideal for use in:
- Aviation industry seals and gaskets
- Liquid and petrochemical energy systems
- Couplings containing harsh hydrocarbons
- High and low temperature applications
- Automotive industry components
- Industrial chemical processing
- Aerospace and space systems
- Fluid power systems
- Railway energy systems
- Safety management equipment
- Fuel systems
- Mechanical equipment
