high temperature resistance double - sided silicone coated glass fiber fabric with high voltage
Product Description

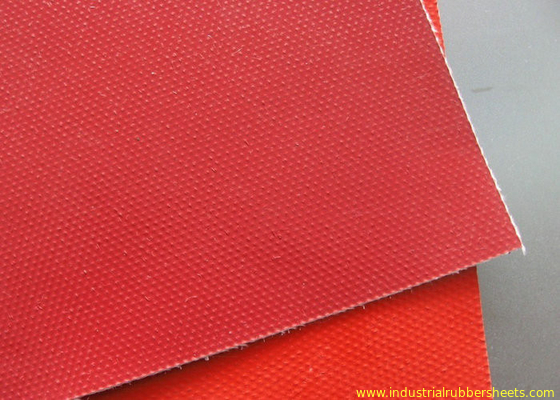

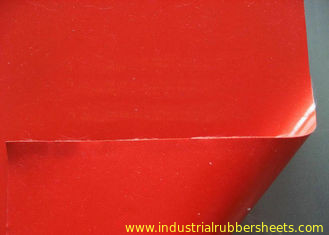

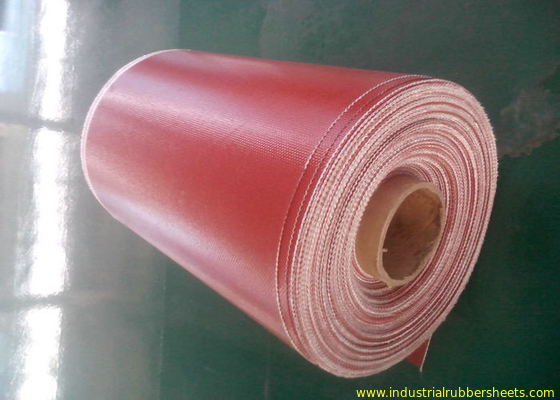

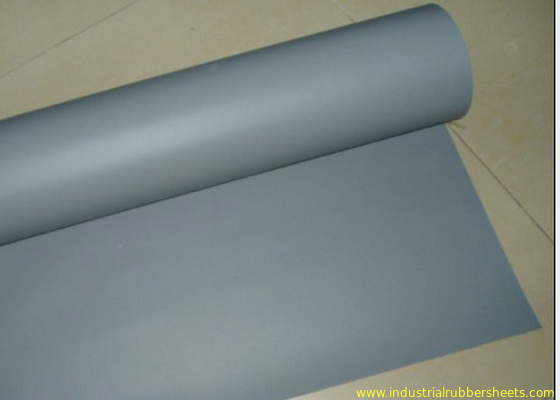

Silicone coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature
resistance, anti-corrosion, high strength and is coated with organic silicone rubber.
Properties:
1, Good performance on resisting high temperature and low temperature, -70°C-280°C;
2, High strength;
3, Ozone, oxide, light and weather aging resistance;
4, High insulation: dielectric constant:3-3.2, breakdown voltage: 20-50KV/MM;
5, Chemical corrosion resistant, oil-proofing, waterproofing (washable)
Physical and chemical index of fiberglass fabric coated with silicone rubber:
|
Product code |
1 |
2 |
3 |
4 |
|
|
High temperature resistant(°C) |
≤280 |
≤280 |
≤280 |
≤280 |
|
|
Low temperature resistant(°C) |
≥-40 |
≥-40 |
≥-40 |
≥-40 |
|
|
Tensile intensity (N/50mm) |
Warp |
≥1750 |
≥1750 |
≥2500 |
≥3500 |
|
Weft |
≥1280 |
≥1280 |
≥2100 |
≥3000 |
|
|
Inflating burst intensity(Mpa) |
≥2.0 |
≥2.0 |
≥2.2 |
≥2.6 |
|
|
Peeling intensity(N/m) |
≥450 |
≥450 |
≥520 |
≥600 |
|
|
Insulation (kv/mm) |
16 |
16 |
18 |
18 |
|
|
Weight (g/m*m) |
550-650 |
550-650 |
750-800 |
1500-1800 |
|
|
Width(mm) |
1000±20 |
1000±20 |
1000±20 |
1000±20 |
|
|
Thickness(mm) |
0.3-0.4 |
0.3-0.4 |
0.05-0.55 |
1.0-1.1 |
|
|
color |
Silver-gray, gray, red |
lucency |
Silver-gray, gray, red |
Black, gray, red |
|
Four methods to weave the fabric:
a). Plain weave: it can be used in electricity insulation materials and reinforced materials in industry,
because of inseparable structure, plain and clear lines.
b).Twill weave: compared with plain weave, it is of high density, high intensity, with a soft and loose
structural weave. It can be used in ordinary reinforced materials, filter materials, and painting cloth.
c) Satin weave: compared with plain weave and twill weave, it is of high density,high intensity, with a
soft and loose structural weave with a good texture. It is applicable for use as a higher reinforced
material in machinery.
d). Gauze weave: said lattice twist weave. It can be used in spread model curtain,resin reinforced emery
wheel gray cloth and lattice embed belt.
fiberglass fabric general properties:
1. Outstanding temperature resistance(from -70°C to +260°C)
2. Excellent chemical resistance
3. Superior non-stick surface, easy to clean
4. High dielectric strength
5. Dimensional stability
6. Resistance to UV, IR and HF
7. Non-toxic
