Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal

10sets
MOQ
negotiation
Price
Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal
Features Gallery Product Description Request A Quote
Features
Specifications
Material: NBR Fabric, FKM Fabric
Color: Black
Type: V Packing
Quantity: 5in1, 7in1
Tensile Strength: 8-12Mpa
Hardness: 70-80shore A
High Light:

silicone rubber gasket

,

silicone rubber seals
Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A6007
Payment & Shipping Terms
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 1000000sets per month
Product Description
hydraulic Vee packing seal , V packing seal made with NBR FKM PTFE for industrial seal

Product Description
(Chevron Packing, V-Packings, Vee-packs) consist of three parts,which are seal ring, support ring and pressing ring. It has long working life and can operate under adverse mechanical situations.It is the seal used for piston rod of tank.Vee Packings are multiple-lip (chevron) seals comprised of a group of endless rings and are popular for sealing rods and pistons. They can be used for low or high pressure applications and with single or double acting cylinders.


1) Pressure: 0-40 MPa;
2)Temperature: -35~+200°C
3) Speed: below 0.5 m/s;
4) Medium: hydraulic oil,emulsion and water



Special design

POM/PTFE/PA, PTFE/UHMW-PE, POM/PTFE/PA



Temperature(°C)



Pressure Max Gap E Temperature(°C) Speed(m/s) Medium
160bar E≤0.8mm -45~110 ≤0.5 Mineral Oil
250bar E≤0.6mm -30~60 HFC Water Glycol
400bar E≤0.4mm
700bar E≤0.2mm +5~60 HFA 5/95 Water base fluid Water



Medium:  Minderal oil, HFC Water Glycol , HFA 5/95 Water base fluid Water





Application



Steel hydraulic

Ceramic machine

Heavy duty cylinders

Presses

Mills



Advantage

1. It has very good elasticity and be enlongated easily

2. It has strong adaptive load against axial and radial viberation

3. It is easily to be installed or uploaded

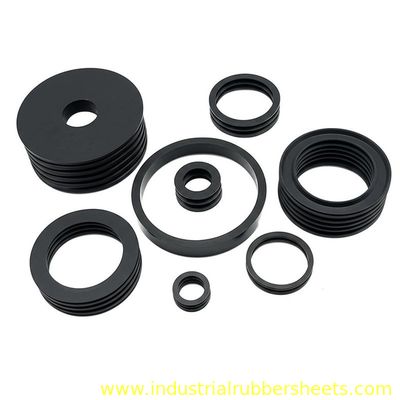

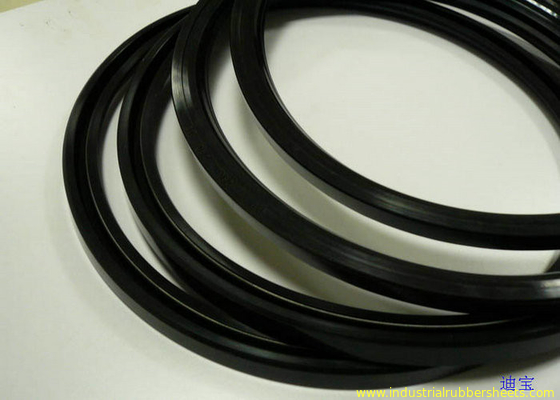

Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal 0

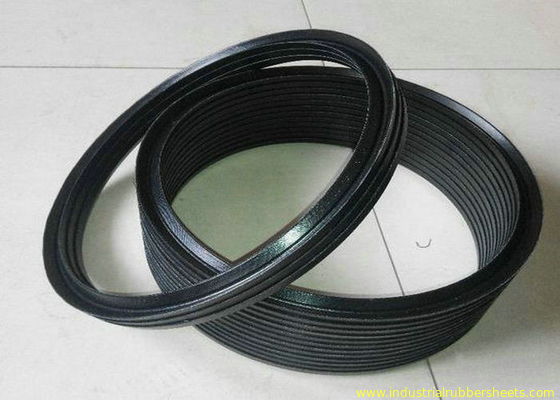

Black NBR FKM PTFE Silicone Rubber Washers / Hydraulic Vee Packing Seal 1
