Weathering Resistance Low Extractable PTFE Tubing with Density 2.1 - 2.3g/cm3
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3003 |
| Minimum Order Quantity | 1roll |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | 100% Virgin PTFE Material | Produced | Extruded |
|---|---|---|---|
| Quality | Industrial Grade, Food Grade | Color | Transparent |
| Surface | Smooth | Working Temperature | -180°C - +260°C |
| Hardness | 55shore D | Density | 2.1-2.3g/cm3 |
| Highlight | ptfe tube,ptfe pipe |
||
Product Description

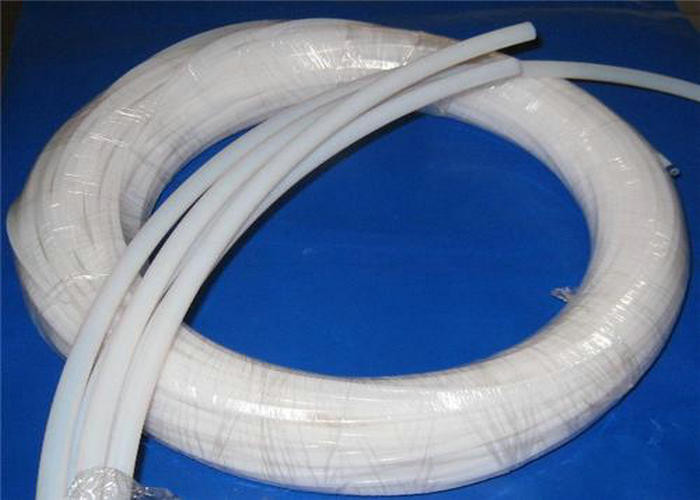

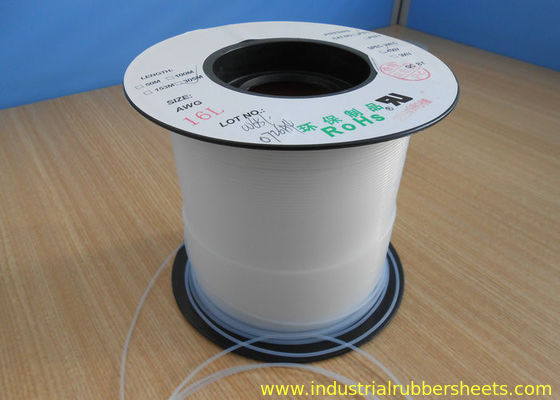

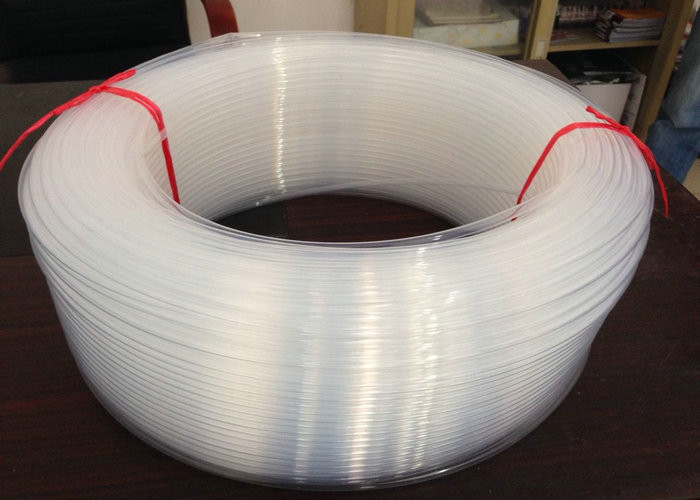

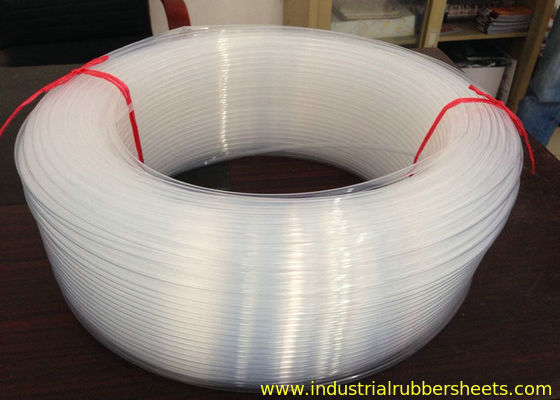

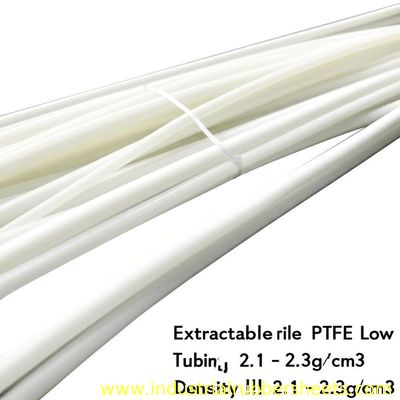

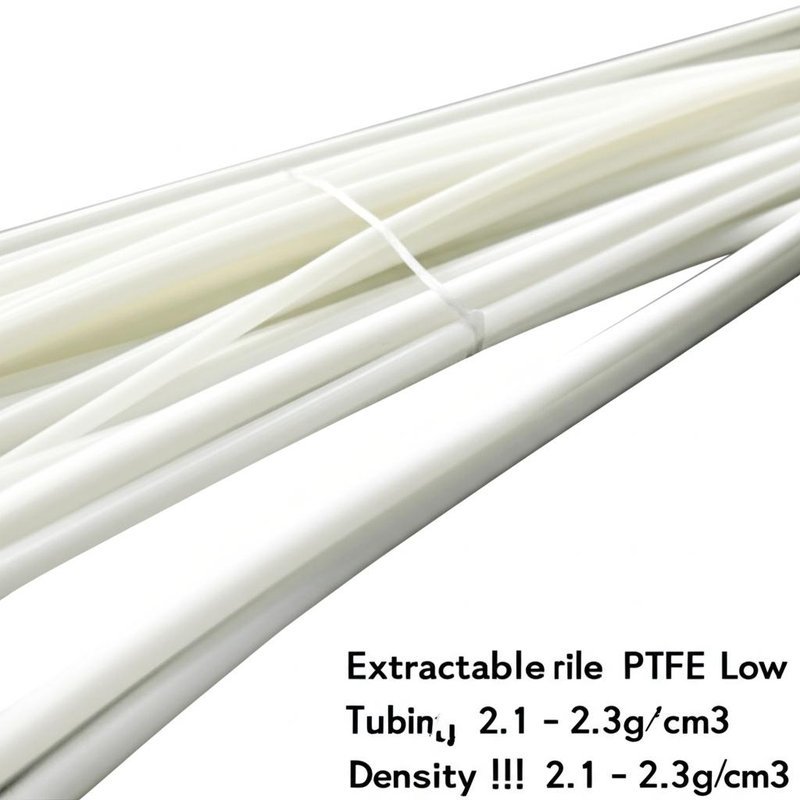

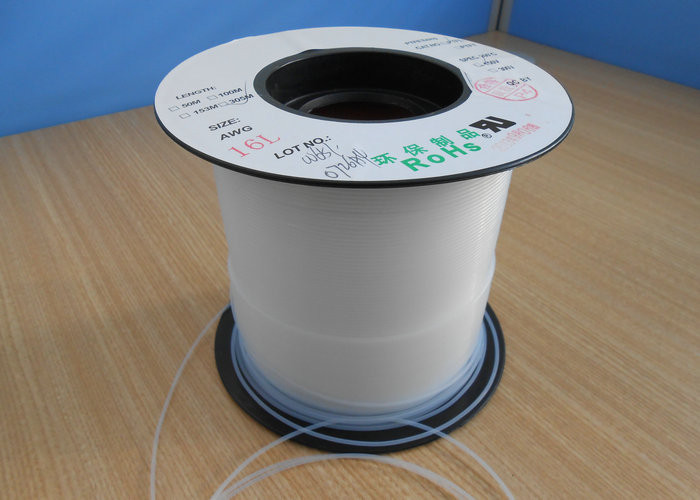

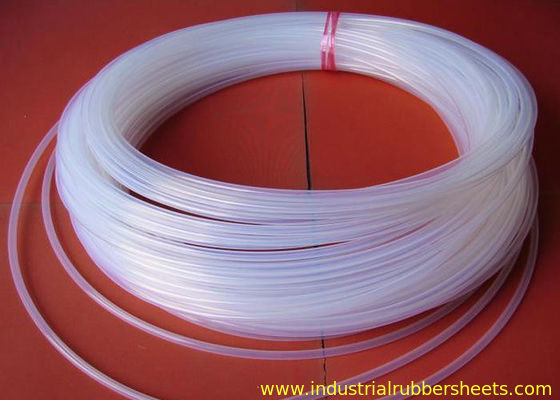

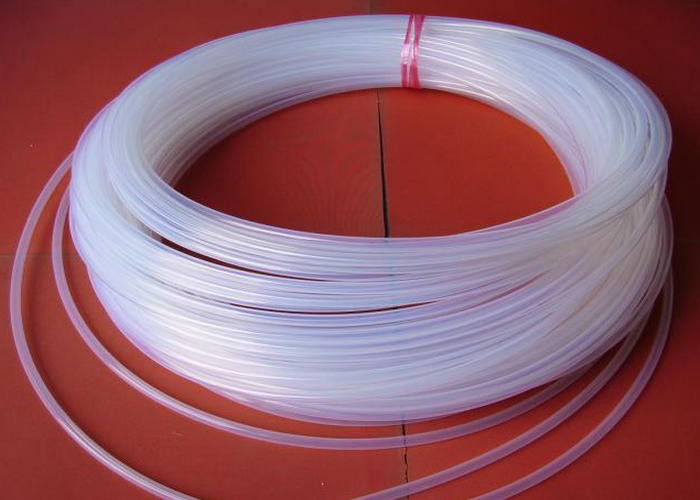

Weathering Resistance Low Extractable PTFE Tubing
Heat temperature transparent PTFE hose, PTFE tube, and PTFE tubing produced by extrusion. Manufactured using high-quality polytetrafluoroethylene (PTFE) material through molding or extrusion processes.
PTFE is recognized as the best polymer material for chemical resistance among all known plastics. It features excellent characteristics including corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials. Suitable for a wide temperature range from -180°C to +260°C, with a wax-like surface that prevents substances from adhering.
Production methods vary by diameter: Ø4-9mm is paste extruded, Ø10-50mm is ram extruded, and Ø50-300mm is molded. PTFE offers the best electrical properties of all plastics, making it ideal for electrical insulation across various frequencies, seal liners for corrosive media, anti-sticking applications, and lubrication purposes.
Material Specifications
Material:
100% Virgin PTFE
Quality:
Premium Grade
Color:
White, Black
Surface:
Smooth
Tensile Strength:
20 MPa
Hardness:
55±5 Shore D
Elongation at Break:
200%
Density:
2.1-2.3 g/cm³
Breakdown Voltage:
10 KV/mm
Temperature Resistance:
-180°C to +260°C
Key Properties
- Very Lubricious - Lowest coefficient of friction of any polymer
- Working temperature range: 500°F (260°C) to -454°F (-270°C)
- Chemically Resistant (all common solvents, acids and bases)
- Chemically Inert
- Low Extractable
- Excellent Dielectric Insulation Properties
PTFE Tube Specifications & Tolerances
| Item | ID (Inner Diameter) (mm) | Tolerance of ID (mm) | Wall Thickness (mm) | Tolerance of Wall Thickness (mm) | Length (mm) |
|---|---|---|---|---|---|
| SFG-1 | 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 | ±0.05 | 0.2 | ±0.05 | ≥200 |
| 1.2, 1.4, 1.5, 1.6, 1.8 | ±0.08 | 0.2, 0.3, 0.4 | ±0.05, ±0.08 | ||
| 2.0 - 4.0 | ±0.10 | 0.2, 0.3, 0.4, 0.5, 1.0 | ±0.05, ±0.08, ±0.10, ±0.15 | ||
| SFG-2 | 5, 6, 7, 8 | ±0.10 | 0.5, 1.0, 1.5, 2.0 | ±0.08, ±0.10 | According to customer demand |
| 9 - 25 | ±0.10 - ±0.20 | 1.0, 1.5, 2.0 | ±0.10 - ±0.15 | ≥200 | |
| ≥25 | ±0.25 | 1.5 - 2.0 | ±0.20 | ≥200 |
Note: The information above is for reference only. Final products depend on customer technical requirements.
