Product Details:
Payment & Shipping Terms:
|
Material: | Silicone Sponge | Color: | Red, Black, White, Grey |
---|---|---|---|
Cell: | Close Cell | Hardness: | 10-40shore A |
Tensile Strength: | 100-200psi | Size: | As Per The Buyer's Drawing |
Density: | 0.5-1.0g/cm3 | Produced: | Cutting From Sheet |
High Light: | silicone rubber gasket,silicone rubber seals |

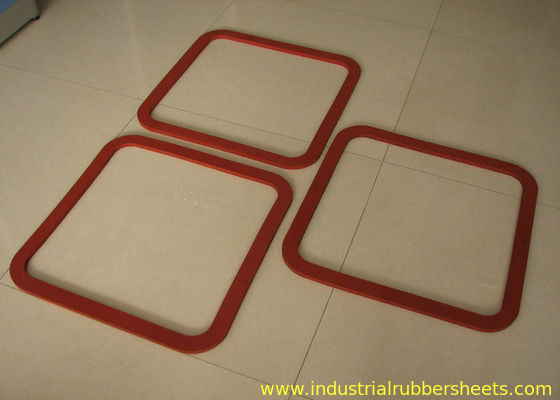

close sell silicone sponge gasket , silicone foam gasket , silicone sponge seal , silicone foam seal cutting from sheet
Advantage
1. Wide operating temperature: silicone foam has a temperature range of -67°F to 392°F (-55°C to 200°C), short periods up to +260°C with several hours.
2. Water sealing: the closed cell products offer good water sealing with relatively low compressive forces.
3. Dust sealing: open cell and closed cell products can be used for sealing out dust with low compressive forces.
4. Compression set resistance: silicone foam offers excellent compression set resistance (ability to rebound to original thickness).
5. UV and ozone resistance: silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long term performance.
6. UL gasketing: most silicone foam products carried by UL 94 flame rated for gasketing.
Performance of Silicone foam
Item |
Unit |
Test Standard |
Performance |
Foam Hardness |
Shore A |
HG/T2489-93 |
10-30±5 |
Elongation |
% |
GB/T 528-1998 |
≥200 |
Tensile strength |
MPa |
GB/T 528-1998 |
≥1.5 |
Density |
g/cm3 |
GB/T 533-1991 |
0.5-1.0 |
Compression 10% |
% |
GB/T 6669-2008 |
≥4.3 |
Compression 50% |
% |
GB/T 6669-2008 |
≥38 |
Compression 90% |
% |
GB/T 6669-2008 |
≥75 |
