Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications

  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
  • Moulded or Skived PTFE Sheet with Virgin PTFE Material for Anti Corrosion Applications
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A3001
Minimum Order Quantity 100kgs
Price negotiation
Packaging Details Packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 1000000pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 100% Virgin PTFE Material Color White, Black
Tensile Strength 20-30Mpa Hardness 50-60shore D
Elongation 200-300% Density 2.1-2.3g/cm3
Temperature Resist -180°C - +260°C Break Down Voltage 10KV/mm
Highlight

coloured plastic sheets

,

thick plastic sheets
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

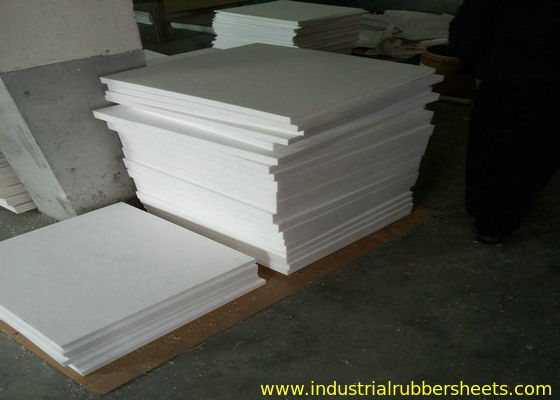

Moulded or Skived PTFE Sheet - Anti-Corrosion Plastic Sheet for Seals & Gaskets

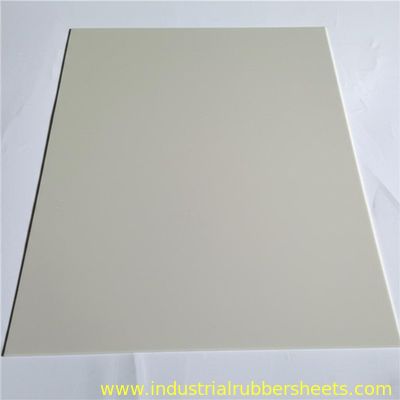

Premium Grade PTFE Sheet
High-quality polytetrafluoroethylene (PTFE) sheets available in white or black, manufactured through moulding or skiving processes. PTFE is recognized as the most chemically resistant polymer among all known plastic materials.
Key Characteristics
  • Exceptional corrosion and weathering resistance
  • Superior dielectric properties
  • Lowest coefficient of friction among solid materials
  • Does not age or degrade over time
Applications
Ideal for corrosion-resistant linings, seals, gaskets, guides, electrical insulation components, and bridge bearing pads.
Technical Specifications
Material 100% virgin PTFE
Quality Premium grade
Color White, Black
Surface Smooth
Tensile Strength 20-30Mpa
Hardness 55±5 Shore D
Elongation at Break 200%-320%
Density 2.1-2.3g/cm³
Breakdown Voltage 10KV/mm
Temperature Resistance -180°C to +260°C
Available Sizes

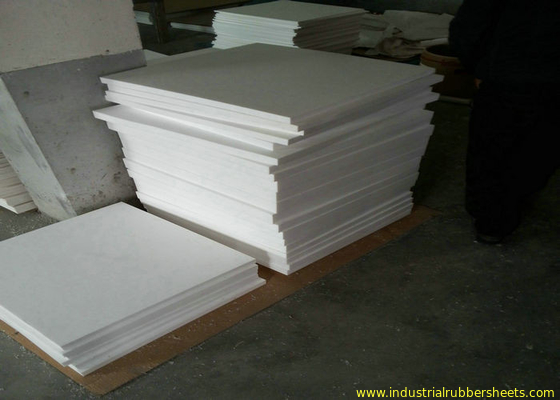

Moulded PTFE Sheets
  • 1.0-60mm * 150mm * 150mm
  • 1.0-60mm * 250mm * 250mm
  • 1.0-60mm * 300mm * 300mm
  • 1.0-60mm * 450mm * 450mm
  • 1.0-60mm * 600mm * 600mm
  • 2.0-60mm * 800mm * 800mm
  • 2.0-60mm * 1000mm * 1000mm
  • 2.0-60mm * 1200mm * 1200mm
  • 2.0-60mm * 1500mm * 1500mm
  • 2.0-60mm * 1000mm * 2000mm

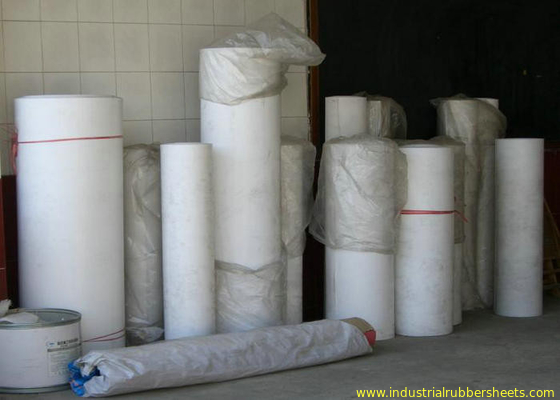

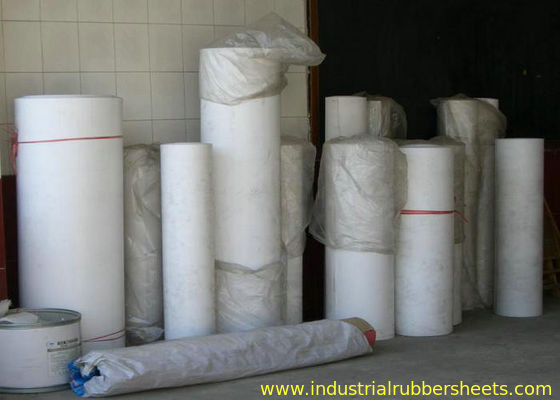

Skived PTFE Sheets
  • 0.3-6.0mm * 300mm * 10, 15, 20m
  • 0.3-6.0mm * 600mm * 10, 15, 20m
  • 0.3-6.0mm * 1000mm * 10, 15, 20m
  • 0.3-6.0mm * 1200mm * 10, 15, 20m
  • 0.3-6.0mm * 1500mm * 10, 15, 20m
  • 0.3-6.0mm * 2000mm * 10, 15, 20m
Packing options available in rolls and pallets.
Please specify material, size, and quantity when making inquiries.
