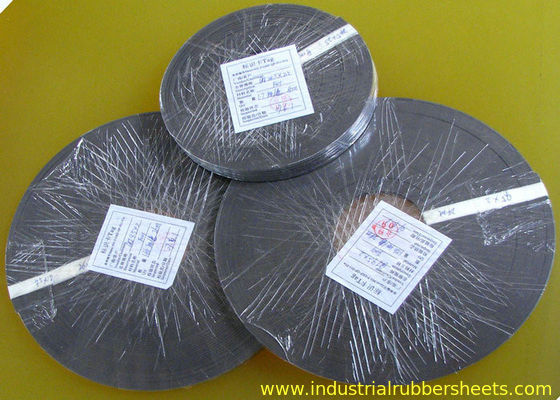

Brown PTFE Guide Stripe Tape (GST) with 60%PTFE + 40%bronze for High Wearing Resistance and Low Friction Coefficient
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3007 |
| Minimum Order Quantity | 10rolls |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | 60%PTFE + 40%bronze | Color | Brown, Green |
|---|---|---|---|
| Working Temperature | -60°C - +260°C | Working Speed | 15m/s |
| Working Pressure | 15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C | Tensile Strength | 14-16Mpa |
| Density | 2.7-3.3g/cm3 | Elongation | 170% |
| Highlight | ptfe packing material,ptfe graphite packing |
||
Product Description

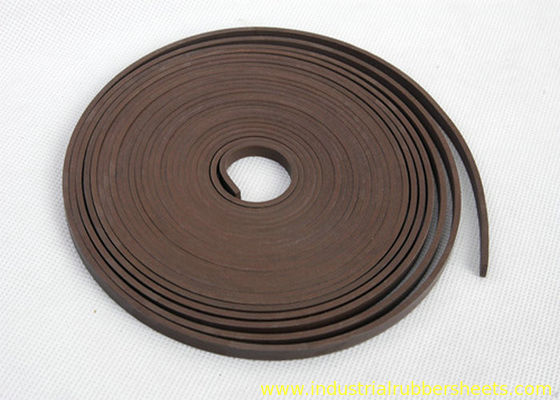

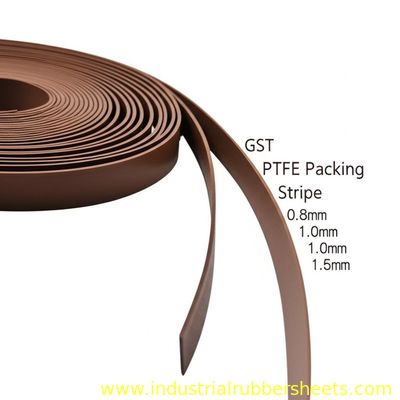

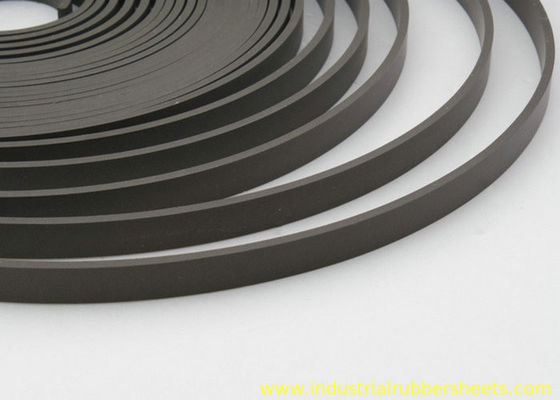

Brown PTFE Packing Guide Stripe Tape (GST)
Available in thicknesses: 0.8mm, 1.0mm, 1.5mm
Product Overview
Brown PTFE guide stripe tape (GST) is composed of 60% PTFE + 40% bronze. This nano-polymer composite material is designed for precision machine tools requiring high accuracy, CNC equipment, and high-end guide band products in processing centers.
Key Features
- Rich solid lubricant particles for excellent friction and wearing properties
- Nano super fine recipe with uniform, dense material structure
- Strong wearing resistance
- Suitable for common machine tools, textiles, printing, paper manufacturing, food, chemical engineering, woodworking, and other mechanical sliding guide applications
Technical Specifications
- Material: 60% PTFE + 40% bronze
- Pressure: 15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C
- Temperature Range: -60°C to +260°C
- Speed: 15m/s
- High wearing resistance: Normally 10 times that of cast iron guide
- Low friction: Coefficient <0.04 (only 1/3 of cast iron guide)
- No creeping: Moves steadily
- Good shock-absorbing ability: Improves processing accuracy
- Good lubrication suitable for dry use (depending on load)
- Good temperature resistance
- Compatible with most fluids in contact
- Easy assembly with low friction coefficient
- Easy maintenance: Lower hardness than metal allows simple band replacement
Available Dimensions
- Thickness: 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm
- Width: 3.2, 4.2, 5.0, 5.6, 6.0, 6.3, 8.0, 8.1, 9.7, 10, 12, 12.7, 13, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 120, 150, 200, 300mm
- Length: 10-20 meters
- OEM sizes available upon agreement
Material Properties Comparison

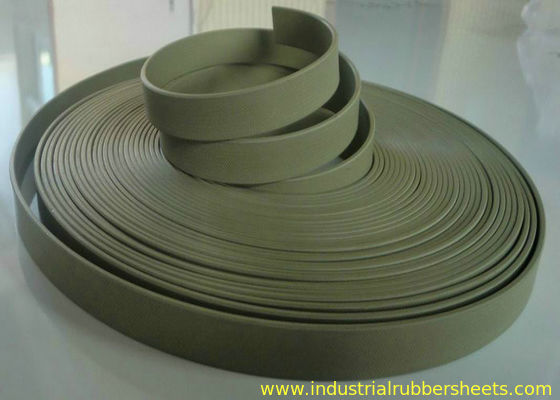

| Property | PTFE + Bronze (Brown) | Reinforced Fabric (Green) |
|---|---|---|
| Density (g/cm³) | 2.9-3.3 | 2.7-3.2 |
| Coefficient of linear expansion (40-120°C) | 7.62 | 7.5 |
| Tensile strength (Mpa) | 16 | 14 |
| Elongation (%) | 170 | 150 |
| Compressive strength (Mpa) | 30-40 | 28-38 |
| Bending strength (Mpa) | 25-30 | 23-29 |
| Non-notched impact strength (KJ/m²) | >15 | >14 |
| Friction coefficient (μ) | 0.15-0.21 | 0.16-0.23 |
| Trace width of friction (m) | <6 | <7.5 |
| Friction loss (mm³) | 6.0-10.5 | 6.5-11.2 |
Special Options
Special supply phenolic guide tape reinforced fabric available in red and green colors.
When requesting a quote, please confirm the material, color, size, and quantity requirements.
