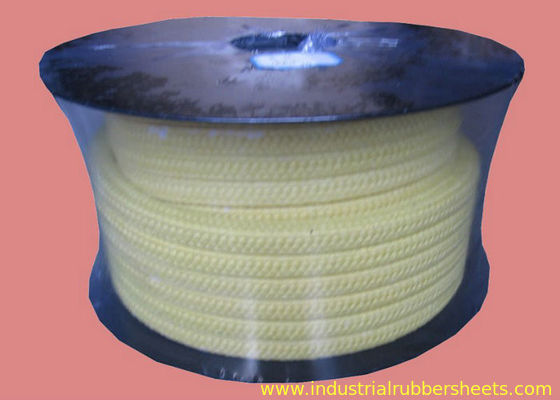

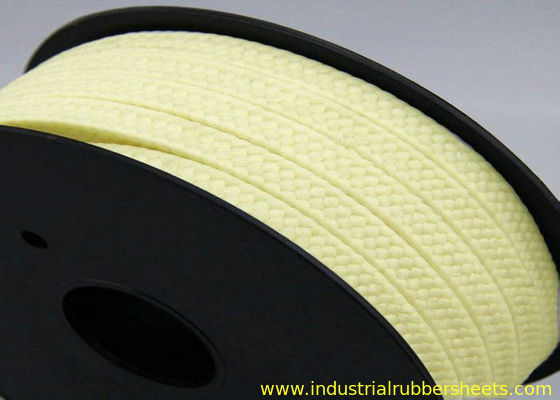

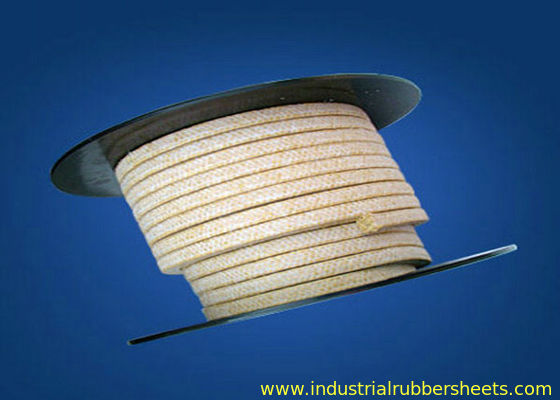

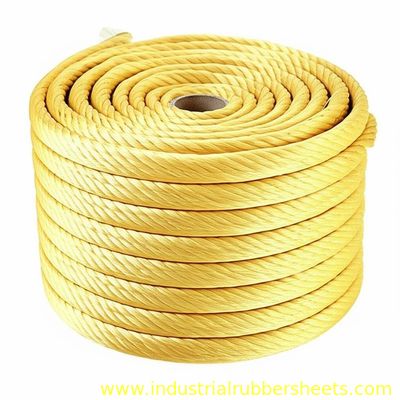

Durable Aramid Fiber Braided Gland Packing with High Temperature Resistance and Chemical Resistance for Valves & Pumps
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3004 |
| Minimum Order Quantity | 10pieces |
| Price | negotiation |
| Packaging Details | Packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000kgs per month |
Product Details
| Material | PTFE And Aramid Yarn Fiber | Color | Yellow |
|---|---|---|---|
| Structure | Lattice Braid | PH Range | 0-14 |
| Working Temperature | -150 ~ +650°C | Size | 3-50mm X 3-50mm X 5, 10, 15kgs |
| Highlight | ptfe packing material,graphite rope packing |
||
Product Description

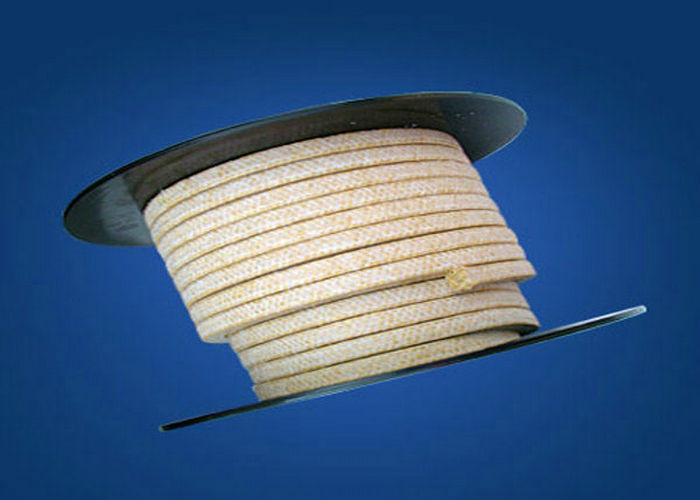

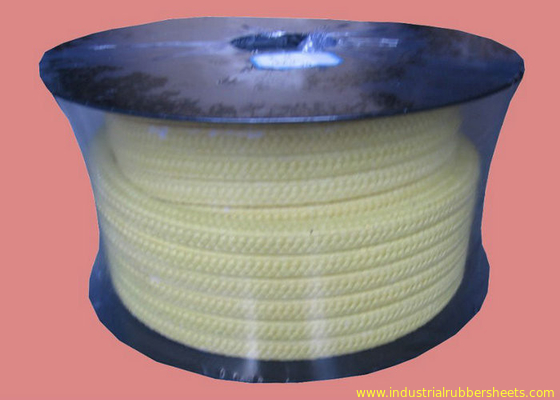

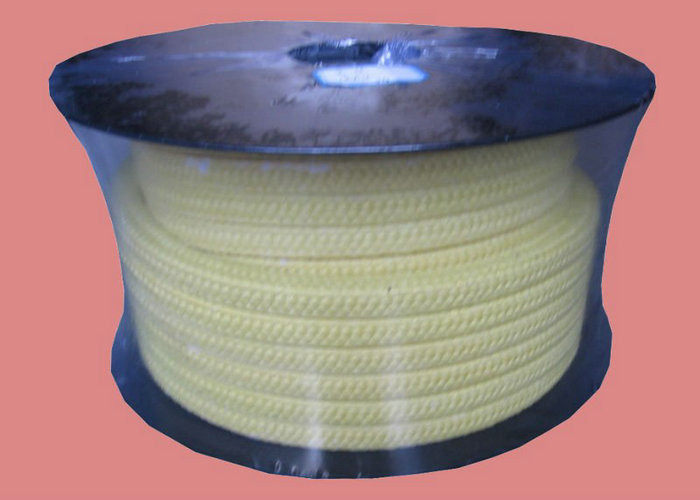

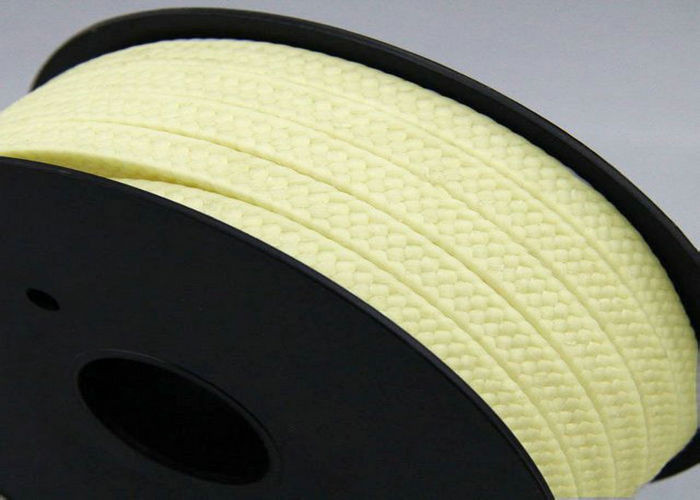

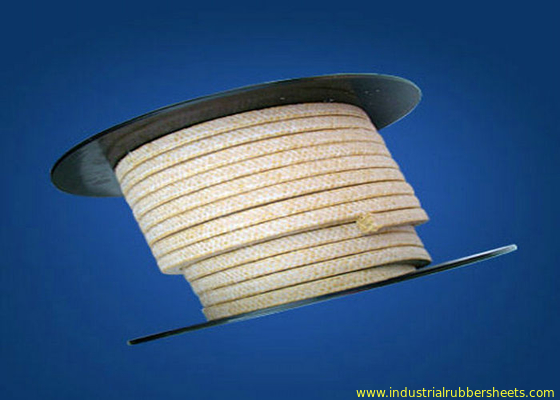

Durable Aramid Fiber Braided Gland Packing For Valves & Pumps Seal
Product Overview
Aramid fiber braided gland packing for valves & pumps provides reliable sealing solutions for demanding industrial applications.
Packaging & Delivery
| Packaging Details | Per 5 or 10 kgs in one roll, carton box, export wooden box or pallets |
| Delivery Detail | Against purchase quantity |
Specifications
- Material: PTFE & aramid fiber
- Temperature resistance: -50 ~ +650°C
- PH range: 2~12
- Application: Pumps in all industries
Detailed Introduction
Aramid fiber packing is braided from high quality Dupont aramid fiber with PTFE impregnated and lubricant additive. It shows good chemical resistance, high elasticity and very low cold flow. It can resist severe media and higher pressure. The packing is lubricated with silicone based compound for quick and easy break-in.
Product Features
- Wear resistant but may damage the shaft if not used properly
- A minimum shaft hardness of 60HRC is recommended
- Superior performance
- Lower frictional factor
Technical Specifications
| Material | Aramid Fiber (with or without PTFE impregnated) |
| Temperature Range | -100 up to +280°C |
| Rotating | 25 bar |
| Reciprocating | 100 bar |
| Static | 250 bar |
| Shaft Speed | 25m/s |
| PH | 2~12 |
| Density | Approx. 1.4g/cm³ |
Typical Applications
- Universal packing for pumps in all types of industry
- Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
- Durable packing able to withstand granular and abrasive applications
