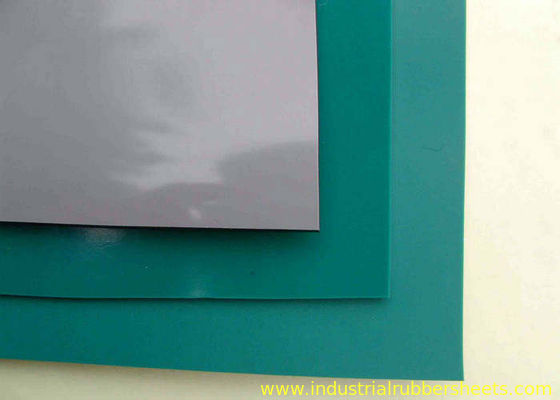

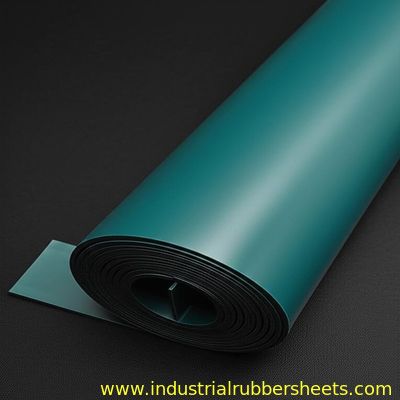

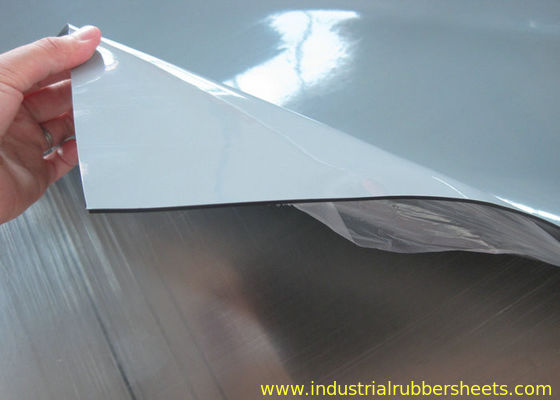

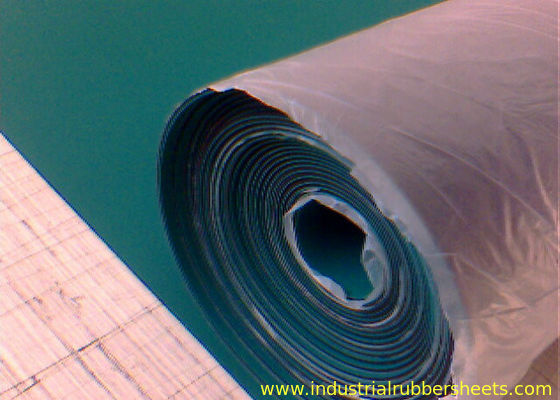

NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat

  • NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat
  • NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat
  • NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat
  • NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat
  • NBR Rubber Industrial Rubber Sheet 2-3mm Thickness 10-20m Length Anti Static ESD Mat
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A5011
Minimum Order Quantity 10rolls
Price negotiation
Packaging Details Packed in rolls and pallets
Delivery Time 10-20 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 1000000SQM per month
Product Details
Material NBR Rubber Quality Industrial Grade
Color Green, Grey, Blue, Black Surface Smooth, Sand
Thickness 2.0, 3.0mm Width 1-1.2m
Length 1-10m
Highlight

rubber sheet rolls

,

waterproof rubber sheet
Leave a Message
Product Description
Anti Static Industrial Rubber Sheet 10-20m Length, ESD Mat For Table
antistatic sheet, antistatic mat, ESD sheet, ESD mat for table and flooring

Manufactured using drum-type vulcanizing press (ROTOCURE) with high-quality nitrile-butadiene rubber (NBR), special prescription, and advanced production technology, this ESD rubber sheet delivers superior antistatic performance. Also known as antistatic rubber sheet, it represents Electro-Static Discharge (ESD) protection with moderate hardness and high tensile strength.

The sheet features no odor, excellent abrasion resistance, oil resistance, and elasticity. It operates effectively under moderate pressure conditions at temperatures ranging from -35°C to +100°C in air. Ideal for electronics, textile, printing, dyeing, and other industries with similar or higher requirements.

Specifications
Material 100% virgin NBR Rubber
Color Green/Black, Blue/Black, Grey/Black
Surface Shiny/Smooth or Sand/Smooth
Top Resistance 10⁷-10⁹ ohm
Bottom Resistance 10³-10⁵ ohm
Electrostatic Pressure Attenuation Time 0.1S
Tensile Strength 6-8 MPa
Hardness 70±5 Shore A
Elongation 300%
Density 1.4 g/cm³
Working Temperature -35°C to +100°C
Thickness 2-3 mm
Width 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2 m
Length 10-20 m
Important: When making an inquiry, please confirm the color, size, and quantity requirements.

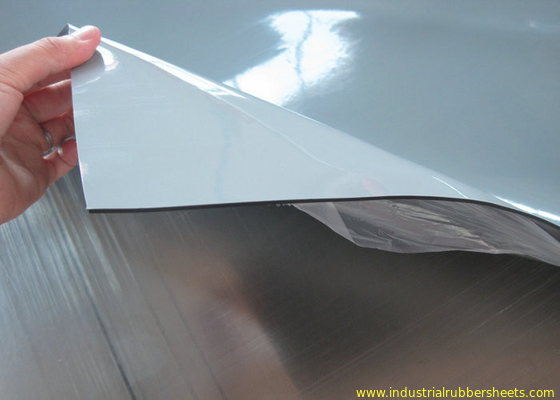

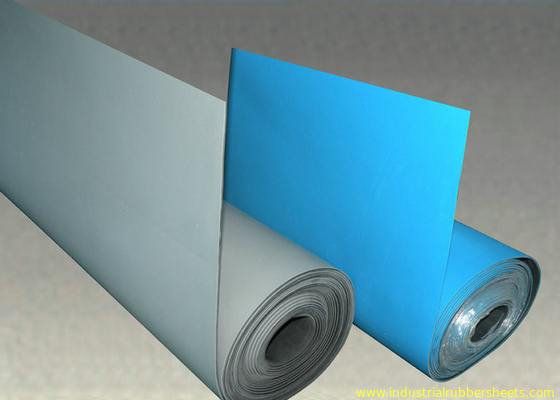

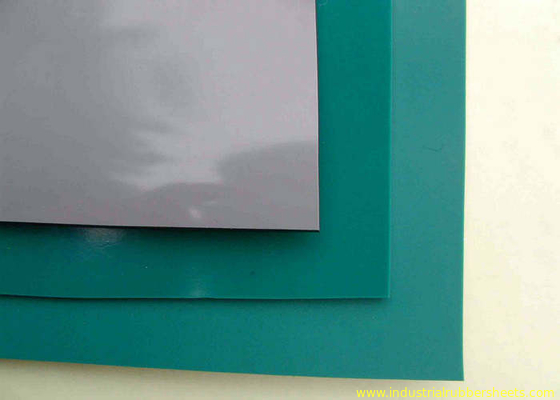

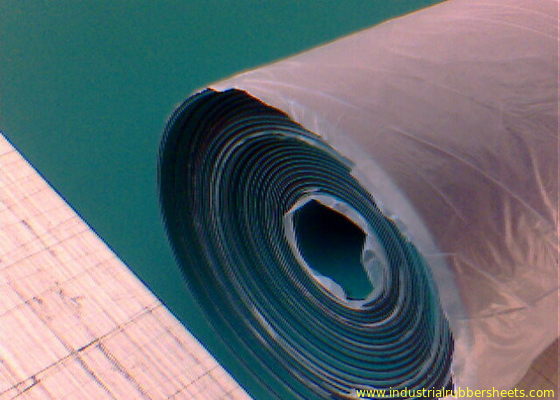

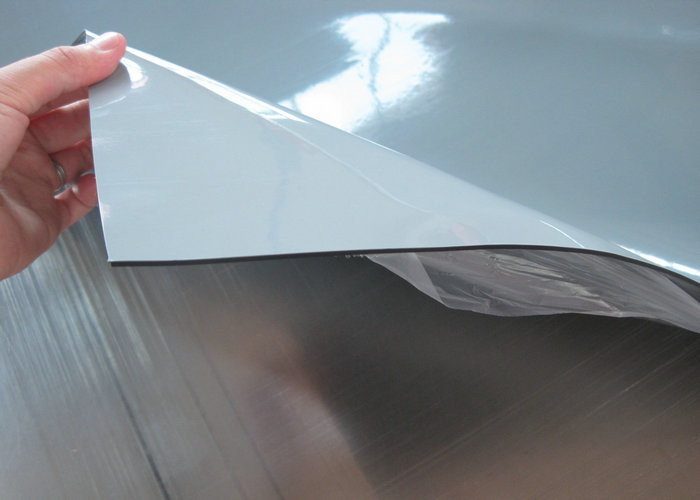

Anti Static Industrial Rubber Sheet product display showing surface texture and color options
ESD Rubber Mat application in industrial setting for electrostatic discharge protection
