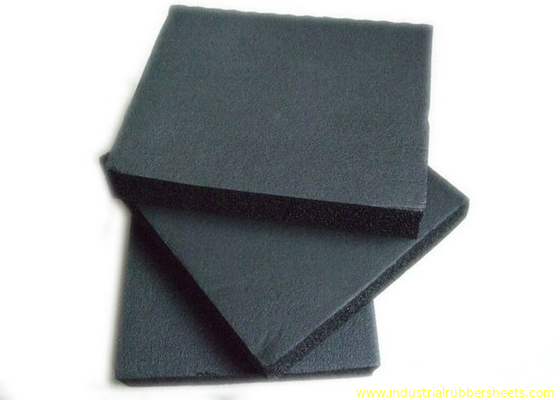

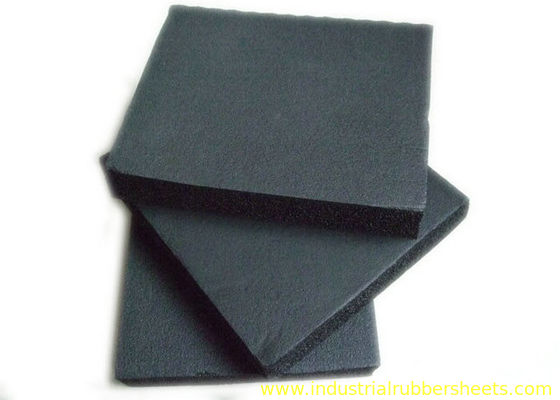

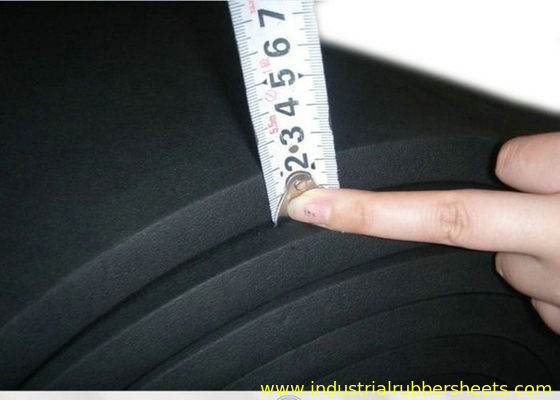

Fire Resistant B1 Closed-cell Structure Low Thermal Conductivity Rubber Sponge Sheet for Air Condition Insulation
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A6004 |
| Minimum Order Quantity | 30CBM/1x20' container |
| Price | negotiation |
| Packaging Details | Packed in rolls |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 1000000CBM per month |
Product Details
| Material | NBR+PVC Sponge | Quality | Fire Resistant B0, B1 |
|---|---|---|---|
| Color | Black | Surface | Smooth |

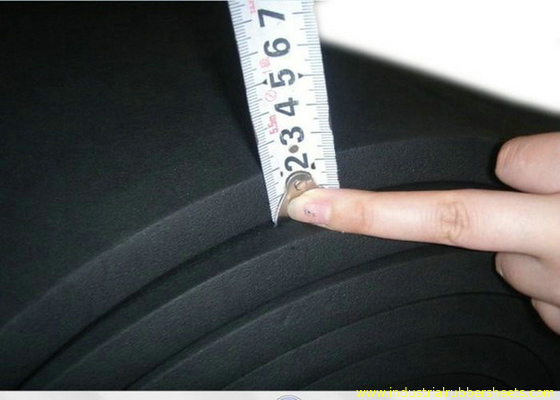

| Density | 40-50kgs/m3 | Thickness | 10-30mm |
| Width | 1m | Length | 10-20m |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description
Armaflex Insulation Equivalent Insulation Rubber Sponge Sheet For Air Condition
Packaging & Delivery
| Packaging Details: | Rubber foam insulation roll PE bag packing, 250rolls/20FCL; 500rolls/40FCL |
| Delivery Detail: | within 15 days after order confirm |
Product Characteristics
- Closed-cell Structure
- Low and Stable Thermal Conductivity
- Low Water Absorption Rate
- Good Fireproof and Soundproof Performance
- Good Aging Resistance Performance
- Simple and Easy Installation
- Environmental friendly & Improved IAQ
Applications
Be used to retard heat transmission and control condensation from chilled-water and refrigeration systems. It also efficiently reduces heat transfer for hot-water plumbing and liquid-heating and dual-temperature piping.
Ideal for applications in:
- Ductwork
- Dual temperature and low pressure steam lines
- Process piping
- Air-conditioner, including hot gas piping
Technical Specifications
| Property | Unit | Value |
|---|---|---|
| Density range | kg/m³ | 50~100 |
| Flammability | - | B1 |
| Oxygen index | % | ≥33 |
| Thermal conductivity | ||
| Average temperature -20°C | w(m.k) | ≤0.032 |
| Average temperature 0°C | w(m.k) | ≤0.035 |
| Average temperature 40°C | w(m.k) | ≤0.037 |
| Moisture resistance factor | - | ≥5x10³ |
| Water absorption ratio in vacuum | % | ≤10 |
| Dimension stability (105°C ±3°C, 7d) | - | ≤10 |
| Ozone resistance (200h) | % | Good, not cracking |
| Compress resilience ratio (Compression ratio 50%, Compression time 72h) | % | ≥70 |
| Aging resistance | - | 150 hours, slight wrinkles, no cracks, holes or distortion |

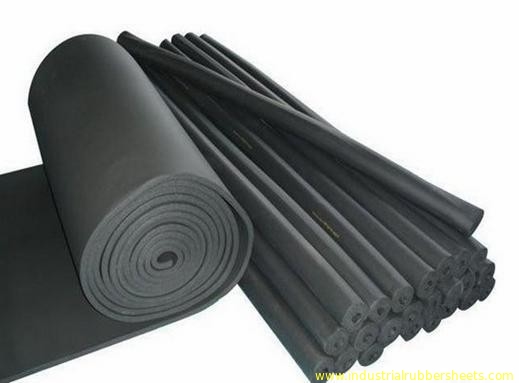

| Dimensions | - | Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width |
Product Overview
Insulation rubber sheet is made by rubber-plastic sponge material which has low thermal conductivity, full-closed structure, and excellent continuous heat insulation. The material is completely isolated with vapor, so it has the properties of water-proof, anti-condensation and long lifetime. After SGS testing, its measured value is much lower than EU standard value on materials without toxic substances, so it is safe and healthy. Moreover, with beautiful appearance, it is easy for bending and construction, and no need of other accessories.
Distinctive Advantages
- Closed structure can effectively prevent thermal conduction
- Thermal conductivity 0.034W/m•k while 0°C
- High heat emission coefficient of surface, up to 9W/m²k
- Excellent anti-steam permeated ability; moisture resistance 5000; "built-in" steam-proof coating; the insulation board is insulating layer and moisture-proof coating as well
- Excellent fireproofing; oxygen index is above 32
- Easy for installation
- No CFC, HFC, HCFC or other materials containing fluorine, also no formaldehyde, dust or fiber
Fire Performance & Temperature Range
The rubber plastic insulation board has excellent fireproof performance. According to international GB/T17794-1999 (Division Methods of construction material burning performance), it meets Chinese standard GB/T17794-1999 Grade "B1" difficult-flammable material after testing, and working temperature is from -50°C to +110°C.
Application Areas
- Refrigeration unit and equipment for air-conditioning system
- Frozen water pipe
- Condensing water pipe
- Air duct and hot water pipeline
Product Specifications

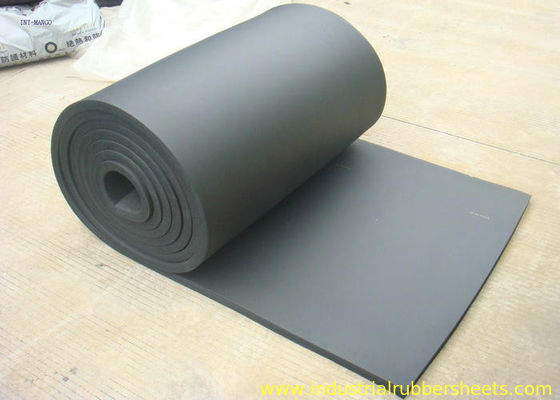

Rubber plastic board (1m wide)
| Thickness | Length per piece |
|---|---|
| 10mm | 20m |
| 13mm | 20m |
| 15mm | 20m |
| 18mm | 10m |
| 20mm | 10m |
| 23mm | 10m |
| 25mm | 10m |
| 28mm | 10m |
| 30mm | 10m |
