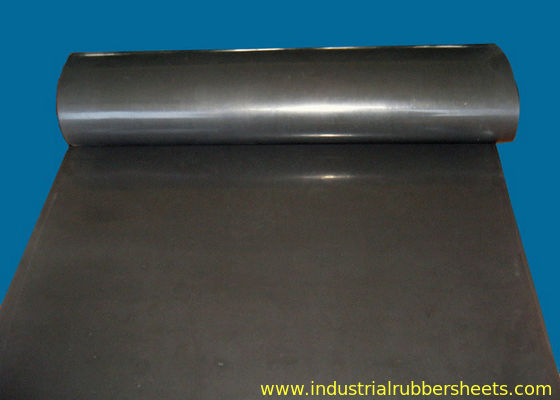

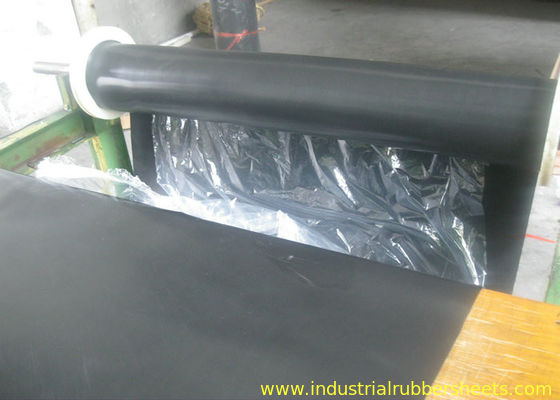

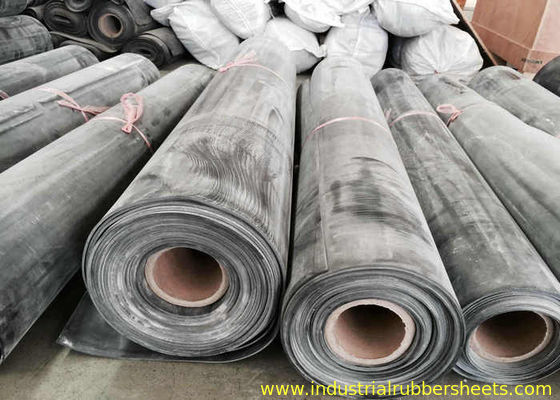

Oil Resistant High Temperature Resistant FKM Industrial Rubber Sheet with 0.5-20mm Thickness
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5007 |
| Minimum Order Quantity | 200kgs |
| Price | negotiation |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 100000kgs per month |
Product Details
| Material | Virgin FKM Rubber | Quality | Premium Grade, Economic Grade, Commercial Grade |
|---|---|---|---|
| Color | Black, White, Red, Green Etc. | Surface | Smooth Or Impression Fabric |
| Tensile Strength | 6-12Mpa | Hardness | 60, 70, 80+/-5shore A |
| Elongation | 200% | Density | 1.9-2.1g/cm3 |
| Working Temperature | -40°C - +320°C | Thickness | 0.5-20mm |
| Width | 1-3.6m | Length | 1-20m |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description
Oil Resistant FKM Industrial Rubber Sheet
High-performance FKM rubber sheets, rolls, and industrial sealing materials with excellent tensile strength (6-12 MPa). Ideal for demanding industrial applications requiring superior chemical and temperature resistance.
Product Specifications
| Material | Virgin fluorubber |
| Quality Grades | Industrial grade, FDA grade (postcure) |
| Available Colors | Black, grey, brown, red, green, etc. |
| Surface Types | Smooth/smooth, smooth/impression fabric, double impression fabric |
| Tensile Strength | 7-12 MPa |
| Hardness | 60, 70 ±5 Shore A |
| Elongation | 200% |
| Density | 1.9-2.1 g/cm³ |
| Working Temperature | -40°C to +320°C |
| Thickness Range | 0.5-20.0 mm |
| Width Range | 0.1-2.0 m |
| Length Range | 0.1-20 m |
| Reinforcement Options | 1PLY fabric insertion available |
When requesting a quote, please confirm the required size and quantity specifications.
Manufacturing Process
Produced using drum-type vulcanizing press (ROTOCURE) or standard vulcanizing press. Thinner sheets (1-6mm) feature shiny surfaces from ROTOCURE process, while thicker sheets (7-20mm) are manufactured using conventional vulcanizing presses.
Key Performance Features
- Exceptional heat aging resistance
- High temperature resistance up to 320°C
- Superior ozone resistance
- Excellent oil and chemical resistance
- Vacuum resistant properties
- Strong acid and alkali resistance
- Chemical corrosion resistance
Applications
Suitable for operation in air, oil, acid, alkali, and various chemical solutions containing corrosive materials. Ideal for punching seals and gaskets in aerospace, chemical industry, and other high-tech applications requiring superior performance.
Customization Options
We accommodate specific technical requirements including insulation properties, textile insertion, metal mesh insertion, and mat surface finishes. Custom manufacturing available based on contractual specifications.
Related Products
Also available: FKM cord, FKM hose, FKM gaskets, FKM rings, and other fluorubber components.
