Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range

  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
  • Low Temperature Resistant EPDM Rubber Sheet with High Tensile Strength and Wide Temperature Range
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A5005
Minimum Order Quantity 200kgs
Price negotiation
Packaging Details Packed in rolls and pallets
Delivery Time 10-20 working days after received your payment
Payment Terms T/T,L/C,Paypal,Western Union
Supply Ability 100000kgs per month
Product Details
Material Virgin EPDM Or EPDM/SBR Quality Commercial Grade, Industrial Grade, Premium Grade
Color Black, White, Red, Grey Etc. Surface Smooth Or Impression Fabric
Tensile Strength 4-14Mpa Hardness 40, 50, 60, 70, 80+/-5shore A
Elongation 250%-380% Density 1.2-1.4g/cm3
Working Temperature -30°C - +130°C Thickness 0.5-50mm
Width 1-3.6m Length 1-20m
Highlight

rubber sheet rolls

,

waterproof rubber sheet
Leave a Message
Product Description
SBR / EPDM Industrial Rubber Sheet With Low Temperature Resistant

EPDM Rubber Sheet, EPDM Sheets, EPDM Rolls, Industrial Rubber Sheet, Tensile Strength 4-14Mpa

EPDM rubber sheet, EPDM sheets, EPDM rolls, industrial rubber sheet for industrial seal

Technical Specifications
Material Virgin EPDM or EPDM/SBR
Quality Industrial grade, food grade
Color Black, white, red, grey etc.
Surface Smooth/smooth, smooth/impression fabric, double impression fabric
Tensile Strength 4-14 Mpa
Hardness 40, 50, 60, 70, 80+/-5 shore A
Elongation 250%-380%
Density 1.20-1.40 g/cm³
Working Temperature -40°C - +130°C
Thickness 0.5-50.0 mm
Width 0.1-3.6 m
Length 0.1-20 m
Insertion Reinforce and insert 1-3PLY cotton, polyester or EP fabric
Important: When you enquire, please confirm the tensile strength, hardness, color, size and quantity.
Manufacturing & Applications

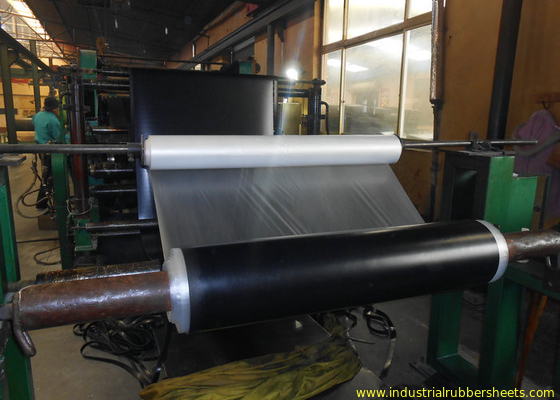

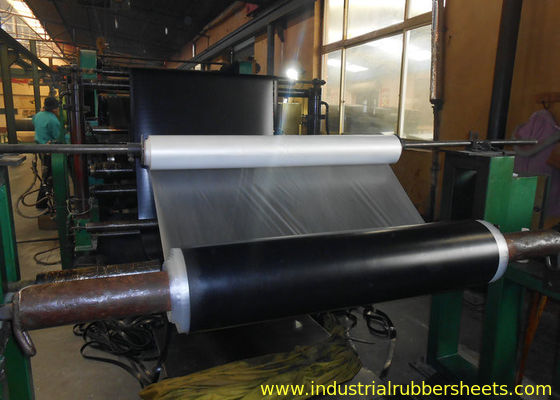

Manufactured using drum-type vulcanizing press (ROTOCURE) or vulcanizing press with high quality Ethylene-Propylene-Diene Monomer Rubber (EPDM, one of synthetic rubber). Thickness of 1-6mm is produced by drum-type vulcanizing press (ROTOCURE) with shiny surface, while 7-80mm thickness is manufactured using vulcanizing press for achieving higher thickness specifications.

Key Performance Features
  • Medium hardness with high tensile strength
  • Excellent aging resistance
  • Acid and alkali resistant
  • High temperature resistant
  • Low temperature resistant
  • Ozone-resistant
  • Suitable for working in liquids containing up to 50% acid or alkali
  • Operating temperature range: -40°C to +130°C (maximum 150°C momentary)

Ideal for punching various seals, gaskets, or other custom shapes, and for covering mechanical equipment.

Product Gallery

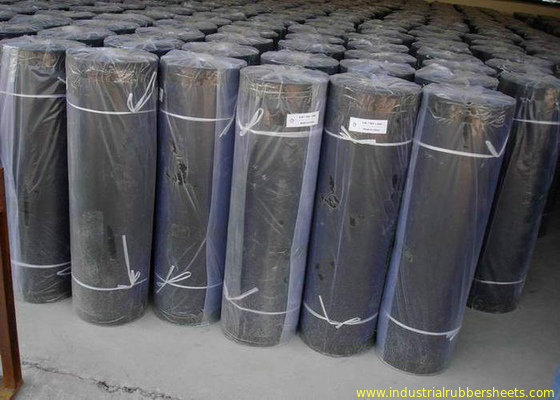

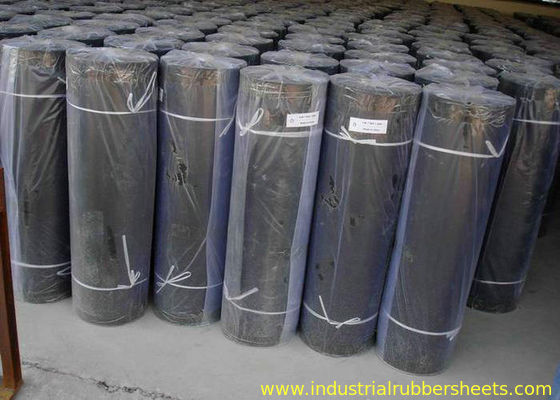

EPDM industrial rubber sheet close-up showing texture and surface finish EPDM rubber sheet roll demonstrating flexibility and material quality Industrial application of EPDM rubber sheets in machinery sealing
