8-43mm Outer Diameter 1-3mm Thickness High Resistance PTFE Gasket Sheet for Bottle Seal
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ISO9001 |
| Model Number | 3A1005 |
| Minimum Order Quantity | 1bag=50pcs |
| Price | USD10.00/100pieces |
| Packaging Details | 100pcs packing in 1bag, 100bags in 1carton |
| Delivery Time | 7-10days |
| Payment Terms | L/C,D/P,T/T,Western Union |
| Supply Ability | 10000000pieces/month |
Product Details
| Outer Diameter | 8-43mm | Elongation | 400% |
|---|---|---|---|
| Thickness | 1-3mm | Acid Resistance | Good |
| Flammability | Low | Resistance | High Resistance |
| Ph Range | 0-14 | Tensile Strtength | 8-12Mpa |
| Size | Standard OD8-43mm X T1-3mm | Density | 1.2g/cm³ |
| Surface Finish | Smooth | Temperature Range | -40 ~ +260^C |
| Temperature Resistance | Up To 500°F | App | For Bottle Seal |
| Highlight | Good Od Ptfe Gasket Sheet,1-3mm Ptfe Gasket Sheet,8-43mm Ptfe Gasket Sheet |
||
Product Description

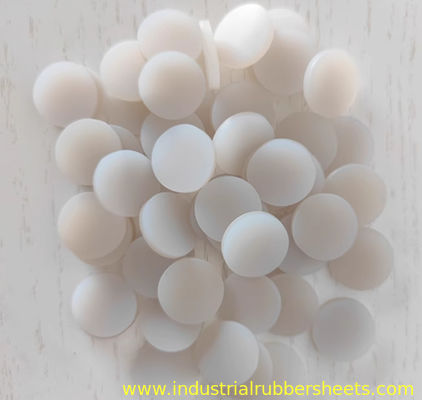

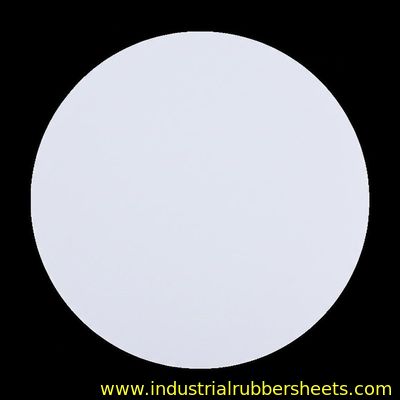

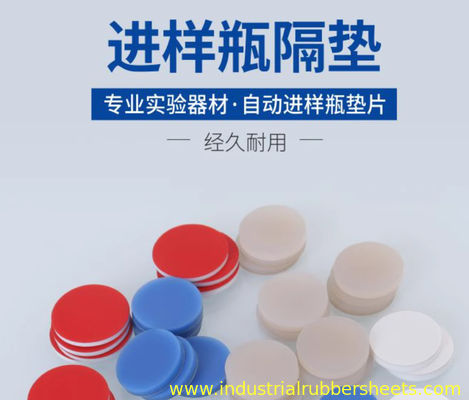

Good OD 8-43mm PTFE Gasket Sheet 1-3mm Thickness
Product Overview
High-quality silicone PTFE composite gaskets designed specifically for bottle sealing applications.
These gaskets feature a dual-material construction with silicone top and PTFE bottom layers,
providing excellent sealing performance and chemical resistance.
Material Composition
- Top Layer: Silicone material available in natural, white, blue, or red colors
- Bottom Layer: PTFE material in white or natural color
Standard Sizes
| Outer Diameter (OD) | Thickness (T) |
|---|---|
| 8.0mm | 1.5mm |
| 9.0mm | 1.0mm |

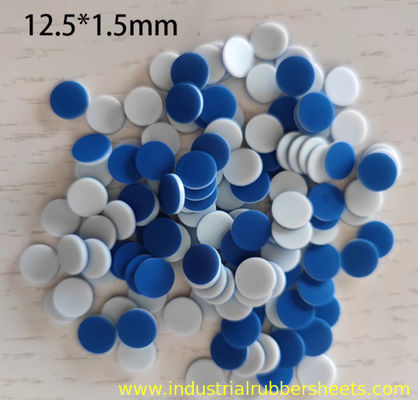

| 12.5mm | 1.5mm |
| 14.2mm | 1.3mm |
| 17.5mm | 1.5mm |
| 17.5mm | 3.0mm |
| 20.0mm | 3.0mm |

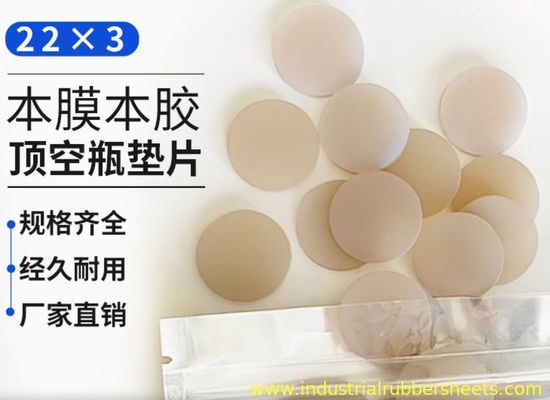

| 22.0mm | 3.0mm |
| 27.0mm | 3.0mm |
| 43.0mm | 3.0mm |
Custom Sizes: Available upon agreement

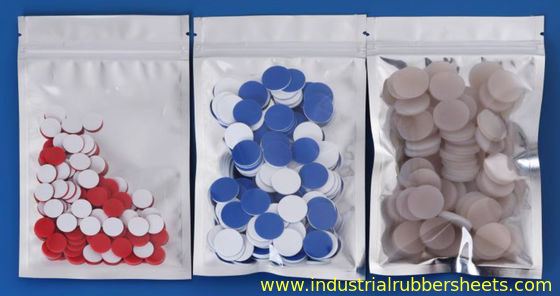

Packaging Information
100 pieces per bag, 100 bags per carton
Product Images
