Brown Aging Resistance High Temp Viton Rubber Sheet 0.5mm-10mm Thickness with 200℃-300℃ Temperature Resistance
Product Details
| Insert | Reinforce 1PLY Glassfiber Or Aramid Fabric | Name | FKM Rubber Sheet, Fluorubber Sheet, FKM Sheet, FPM Sheet |
|---|---|---|---|
| Length | 1m-20m | Width | 1m-2m |
| Aging Resistance | Good | Tear Strength | ≥20KN/m |
| Acid Resistance | Good | Hardness | 60-80 Shore A |
| Color | Brown, Black, Red, White, Etc. | Compression Set | ≤25% |
| Elongation | ≥250% | Flame Resistance | Good |
| Material | FKM, FKM, FPM, Fluorubber | Oil Resistance | Good |
| Temperature Resistance | 200℃-300℃ | Tensile Strength | ≥10MPa |
| Thickness | 0.5mm-10mm | ||
| Highlight | aging resistance high temp rubber sheet,0.5mm high temp rubber sheet,10mm thickness heat resistant rubber sheet |
||
Product Description
Brown Aging Resistance High Temp Viton Rubber Sheet 0.5mm-10mm Thickness
Product Overview
High Temperature Rubber Sheet is a superior product manufactured from Fluorubber (FKM/FPM) featuring a smooth fabric surface with excellent aging resistance and elongation rate higher than 200%. Designed for high-temperature environments, it provides exceptional protection against heat and abrasion, making it ideal for construction, industrial, and electrical applications.
Key Features
- Product Name: High Temperature Rubber Sheet
- Also Known As: FKM Rubber Sheet, Fluorubber Sheet, FKM Sheet, FPM Sheet
- Compression Set: ≤15%
- Length: 10m-20m
- Hardness: 75±5 Shore A
- Oil Resistance: Good
Technical Specifications
| Parameter | Specification |
|---|---|
| Hardness | 75±5 Shore A |
| Thickness | 0.5mm-10mm |
| Insert | Reinforce 1PLY Glassfiber Or Aramid Fabric |
| Compression Set | ≤15% |
| Available Colors | Black, White, Brown, Green, Yellow |
| Temperature Range | -60°C to +320°C |
| Tear Strength | ≥25N/mm |
| Oil Resistance | Good |
Applications
High Temperature Rubber Sheet (Model: 3A5007) is a high-temperature-resistant rubber pad with superior performance, ISO9001 certified. Suitable for manufacturing high-temperature rubber rolls, films, and sheathing in various industrial applications.
Customization & Ordering
We offer customized high-temperature rubber slab solutions to meet your specific requirements. Our products are manufactured from durable, quality materials ensuring excellent performance in challenging applications.
- Minimum Order Quantity: 100kgs
- Price Range: USD 12.80-22.80/kg
- Packaging: Rolls and Pallets
- Delivery Time: 7-15 days
- Payment Methods: T/T, L/C, D/P, Western Union, PayPal
- Monthly Supply Capacity: 200,000 kgs
Technical Support & Services
- Technical consultation for product selection
- Detailed product information and specifications
- Installation and maintenance guidance
- Troubleshooting assistance
- Replacement product support

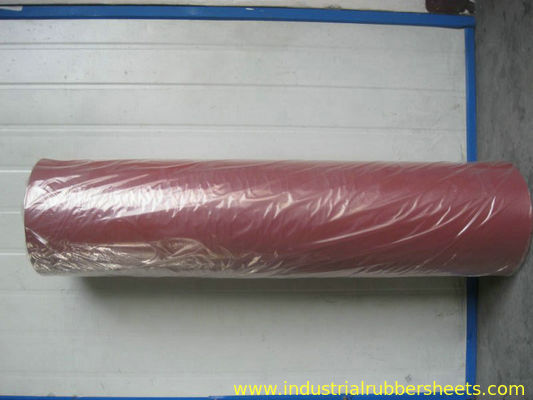

Packaging & Shipping
Our High Temperature Rubber Sheets are packaged in durable cardboard boxes with protective materials including bubble wrap and plastic sleeves. All shipments are tracked and marked with relevant product information to ensure safe delivery to your destination.
Frequently Asked Questions
Q: What is the Brand Name of this High Temperature Rubber Sheet?
A: The Brand Name is 3A Rubber.
Q: What is the Model Number of this High Temperature Rubber Sheet?
A: The Model Number is 3A5007.
Q: Where is this High Temperature Rubber Sheet manufactured?
A: This product is manufactured in China.
Q: Is this High Temperature Rubber Sheet certified?
A: Yes, it is ISO9001 certified.
Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 100kgs.
