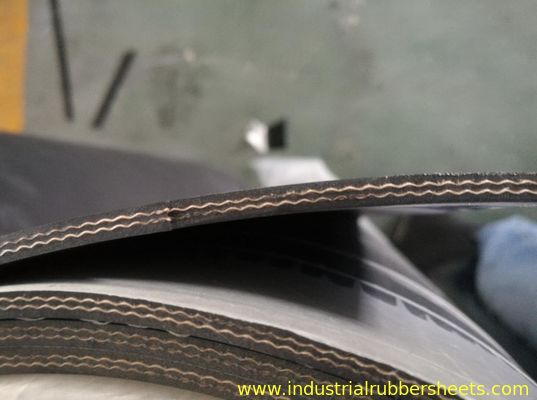

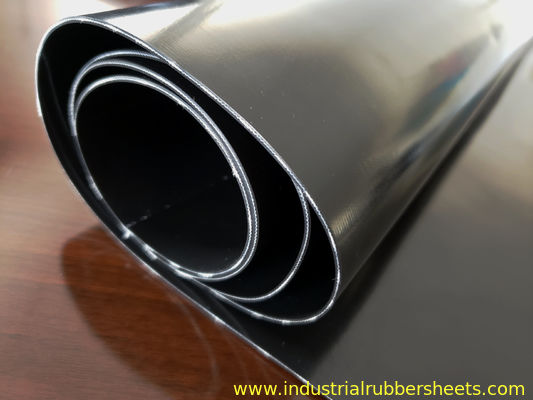

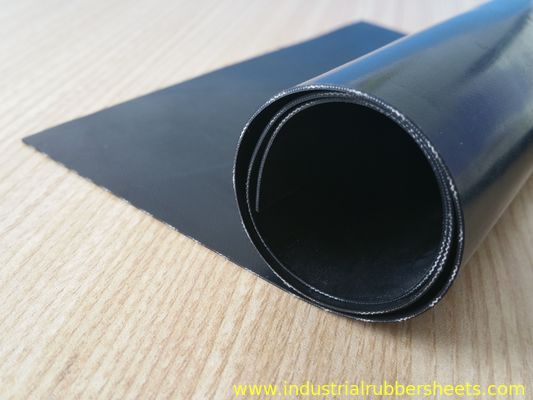

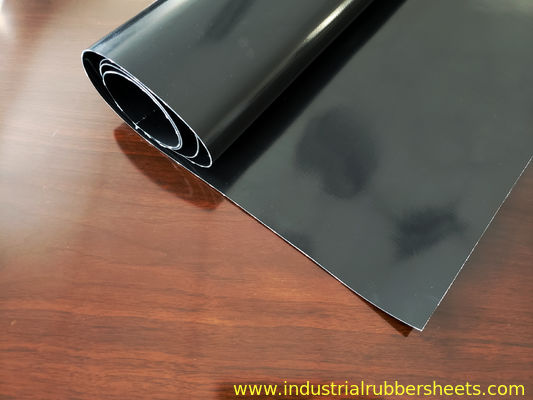

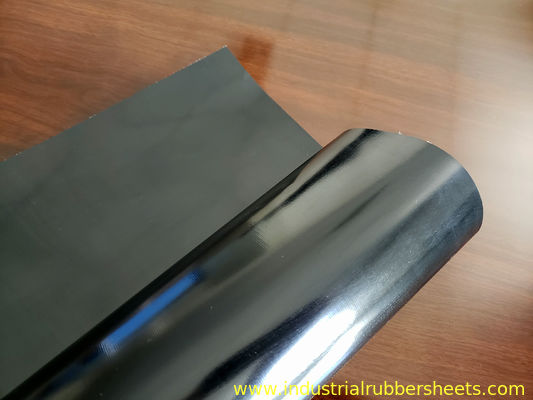

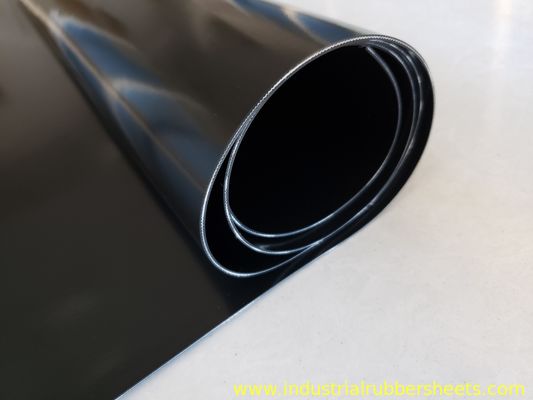

0.5-6.0mm Thickness 1.0-1.2m Width NBR Rubber Sheet with 350% Elongation for Industrial Seal
Product Details
| Material | NBR+Fabric+NBR | Color | Black |
|---|---|---|---|
| Surface | Smooth | Tensile Strength | 8Mpa |
| Hardness | 60shore A | Elongation | 350% |
| Density | 1.4g/cm3 | Size1 | 0.5-2.0mm X 1-1.2m X 10m X 1PLY |
| Size2 | 2.0-6.0mm X 1-1.2m X 10m X 2PLY | ||
| Highlight | NBR Diaphragm Rubber Sheet,10m Diaphragm Rubber Sheet,0.5mm Diaphragm Rubber Sheet |
||
Product Description
0.5 - 6.0mm X 1.0 - 1.2mm X 10m NBR Diaphragm Rubber Sheet For Industrial Seal
Product Overview
Black NBR diaphragm, NBR fabric, NBR Rubber Sheet Insert 1-2PLY Fabric for Industrial Seal
Our rubber fabric and rubber diaphragms are manufactured using specialized rotocure machines with various fabric reinforcements and rubber materials. We utilize different nylon, polyester, EP fabric, glassfiber fabric, and aramid fabric combined with rubber materials including hypalon, nitrile, neoprene, silicone, and fluorubber.
Technical Specifications
Material:
Coated hypalon, neoprene, nitrile, silicone, fluorubber, etc.
Insertion:
Reinforce and insert 1-3PLY cotton, polyester, nylon, glassfiber, aramid, EP fabric
Color:
Black, red, yellow, grey, blue, white, etc.
Surface:
Smooth or impression fabric
Tensile Strength:
8.0 MPa
Hardness:
60-70 shore A
Elongation:
350%
Density:
1.4 g/cm³
Thickness:
0.4-6.0 mm
Width:
1.0-1.5 m
Length:
10, 20, 30, 50 m
Standard Sizes - NBR Fabric
| Thickness | Width | Length | Ply |
|---|---|---|---|
| 0.5mm | 1.0m | 10m | 1PLY |
| 0.8mm | 1.0m | 10m | 1PLY |
| 1.0mm | 1.0m | 10m | 1PLY |
| 1.5mm | 1.0m | 10m | 1PLY |
| 2.0mm | 1.0m | 10m | 1PLY |
| 3.0mm | 1.0m | 10m | 2PLY |
| 4.0mm | 1.0m | 10m | 2PLY |
| 5.0mm | 1.0m | 10m | 2PLY |
| 6.0mm | 1.0m | 10m | 2PLY |
Standard Sizes - Hypalon Fabric
| Fabric Type | Dimensions | Material Combination |
|---|---|---|
| 555dtex-500deniers-710g/sqm | 0.6mm x 1.2m x 50m | hypalon/hypalon |
| 1100dtex-990deniers-1300g/sqm | 1.0mm x 1.5m x 50m | hypalon/neoprene, hypalon/hypalon |
| 1670dtex-1500deniers-1500g/sqm | 1.2mm x 1.5m x 50m | hypalon/neoprene, hypalon/hypalon |
Applications
Our coated fabrics are engineered for diverse industrial applications including:
- Inflatable boats, rafts, and life-floats
- High-speed trains and buses
- Rubber diaphragms and gaskets
- Hatch and boat covers
- Radomes and inflated structures
- Quality awnings and convertible tops
- Boating gear and consumer products
Important: OEM and customized sizes are available upon agreement. Products are packed in rolls and pallets. When making an enquiry, please confirm the rubber type, fabric, color, size, and quantity requirements.
