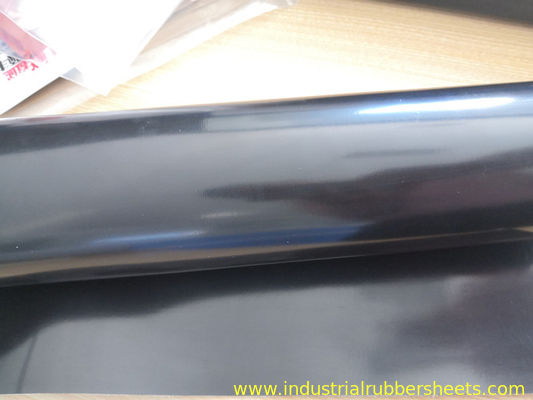

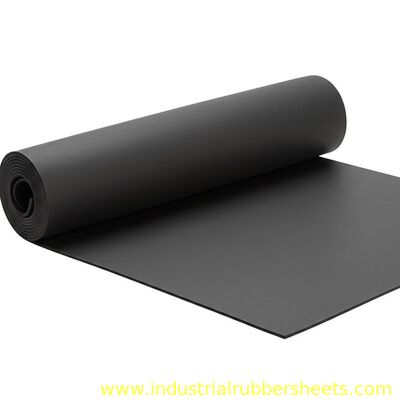

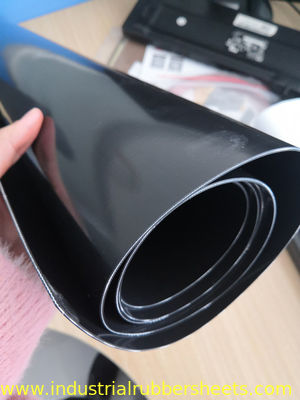

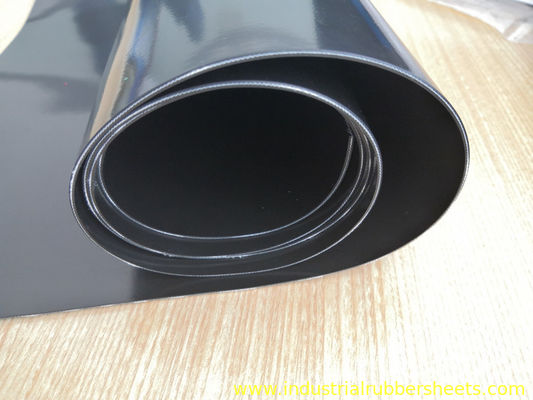

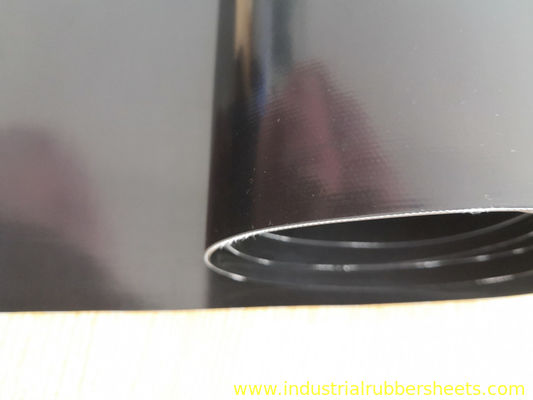

0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber

  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
  • 0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber
Place of Origin China
Brand Name 3A Rubber
Certification ROHS/FCC/SGS
Model Number 3A5004
Minimum Order Quantity 100kgs
Price neogination
Packaging Details packing in rolls
Delivery Time 5-10days after received your payment
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 10000pieces per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Virgin NBR Rubber Or NBR/SBR Quality Industrial Grade, Food Grade
Color Black, White, Red, Grey Etc. Surface Smooth/smooth, Smooth/impression Fabric, Double Impression Fabric
Tensile Strength 4-16Mpa Hardness 40, 50, 60, 70, 80+/-5shore A
Elongation 250%-380% Density 1.20-1.40g/cm3
Working Temperature -30°C - +100°C
Highlight

rubber sheet rolls

,

waterproof rubber sheet
Leave a Message
Product Description
Industrial NBR Rubber Sheet - 0.1 to 20 Meter Length
High-quality black NBR rubber fabric sheets and rolls featuring excellent moisture resistance properties for industrial applications.
Product Overview
Our NBR rubber sheets are manufactured using drum-type vulcanizing press (ROTOCURE) or plain vulcanizing press with premium nitrile butadiene rubber. These sheets offer medium hardness with high tensile strength, exceptional fuel oil and lubricating oil resistance, and are completely safe and non-toxic with no odor. Sheets from 1-6mm thickness feature a shiny surface, while 7-80mm thickness sheets are produced using vulcanizing press for enhanced thickness capabilities.
Technical Specifications
Material Virgin NBR Rubber or NBR/SBR
Quality Grade Industrial Grade, Food Grade
Available Colors Black, White, Red, Grey, and others
Surface Finish Smooth/Smooth, Smooth/Impression Fabric, Double Impression Fabric
Tensile Strength 4-16 MPa
Hardness 40, 50, 60, 70, 80 ±5 Shore A
Elongation 250%-380%
Density 1.20-1.40 g/cm³
Working Temperature -30°C to +100°C
Thickness Range 0.5-50.0 mm
Width Range 0.1-3.6 m
Length Range 0.1-20 m
Insertion Options Reinforced with 1-3 PLY cotton, polyester, or EP fabric
Performance Characteristics
Designed for optimal performance in lubricating oil, transformer oil, and gasoline environments. White NBR rubber sheets are certified for food-grade applications.
Insulation Sponge Rubber Sheet Features
Our insulation sponge rubber sheets utilize rubber-plastic sponge material with low thermal conductivity and full-closed cell structure for superior continuous heat insulation. The material provides complete vapor isolation, offering water-proof properties, anti-condensation performance, and extended service life.
  • Closed cell structure effectively prevents thermal conduction
  • Thermal conductivity: 0.034 W/m•k at 0°C
  • High surface heat emission coefficient up to 9 W/m²k
  • Excellent anti-steam permeation ability with moisture resistance rating of 5000
  • Built-in steam-proof coating provides both insulation and moisture protection
  • Superior fireproofing with oxygen index above 32
  • Easy installation with no additional accessories required
  • Free from CFC, HFC, HCFC, formaldehyde, dust, and fiber contaminants
Fire Safety Compliance
Certified according to international GB/T17794-1999 standards, meeting Chinese GB/T17794-1999 Grade "B1" difficult-flammable material requirements. Operating temperature range: -50°C to +110°C.
Application Areas
  • Refrigeration units and air-conditioning system equipment
  • Frozen water pipes
  • Condensing water pipes
  • Air ducts and hot water pipelines
Standard Dimensions
Thickness Length per Piece
10mm, 13mm, 15mm 20 meters
18mm, 20mm, 23mm, 25mm, 28mm, 30mm 10 meters
Custom Sizes Available upon request (OEM)
0.1 - 20m Length Industrial Rubber Sheet with Moisture Resistance Made from Virgin NBR Rubber 0
Important: When requesting a quotation, please specify the required tensile strength, hardness, color, dimensions, and quantity for accurate pricing and delivery information.
