White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications

  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
  • White 100% Virgin PTFE Tubing with 20Mpa Tensile Strength for Industrial Applications
Place of Origin China
Brand Name 3Arubber
Certification ROHS/FCC/SGS
Model Number 3A3003
Minimum Order Quantity 10pieces
Price neogation
Packaging Details packed in cartons
Delivery Time 10 working days after received your payment
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 100000 kgs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 100% Virgin PTFE Material Produced Moulded
Quality Industrial Grade,food Grade Color White,blak,brown
Surface Smooth Tensile Strength 20Mpa
Elongation 200% Density 2.1-2.3g/cm³
Hardness 55shore D
Highlight

ptfe tube

,

ptfe pipe
Leave a Message
Product Description

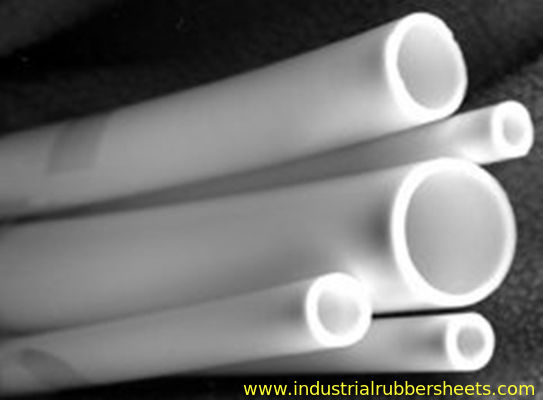

White 100% Virgin PTFE Tubing Industrial Grade 20Mpa Tensile Strength
Product Overview
Premium PTFE tubing manufactured from 100% virgin polytetrafluoroethylene material. This industrial-grade tubing offers exceptional chemical resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials.
Key Features
  • Superior chemical resistance - the best polymer material for chemical resistance among all known plastics
  • Excellent weathering resistance and dielectric properties
  • Lowest coefficient of friction in all known solid materials
  • Wax-like surface with exceptional non-stick properties
  • Wide operating temperature range: -180°C to +260°C
  • Premium electrical insulation properties for various frequency applications
Technical Specifications
Material 100% virgin PTFE, 50% virgin PTFE
Filling Options Graphite, carbon or bronze
Quality Grades Premium grade, commercial grade
Color Options White, black
Surface Finish Smooth
Tensile Strength 20Mpa
Hardness 55+/-5 shore D
Elongation at Break 200%
Density 2.1-2.3 G/cm³
Breakdown Voltage 10KV/mm
Temperature Resistance -180°C to +260°C
Available Sizes

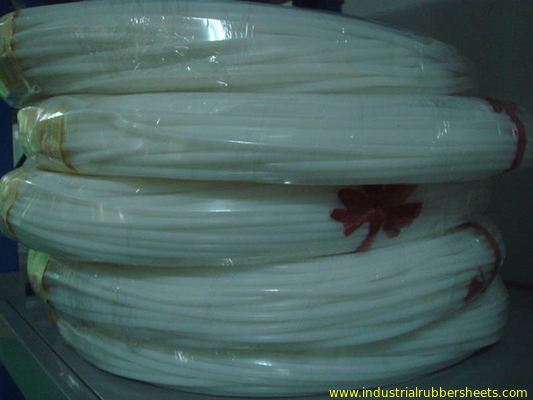

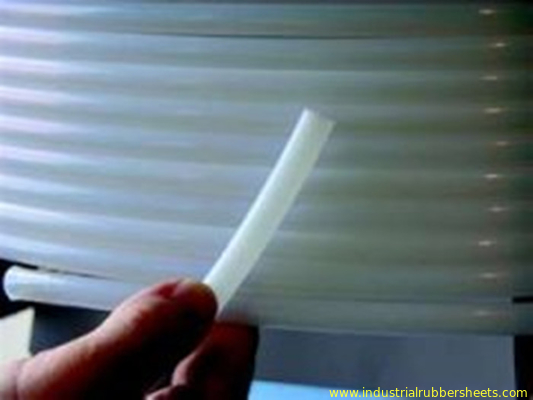

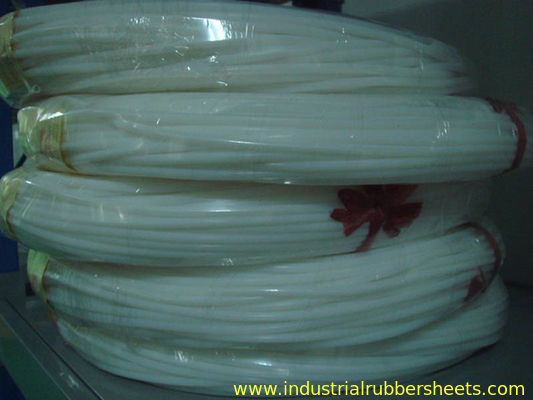

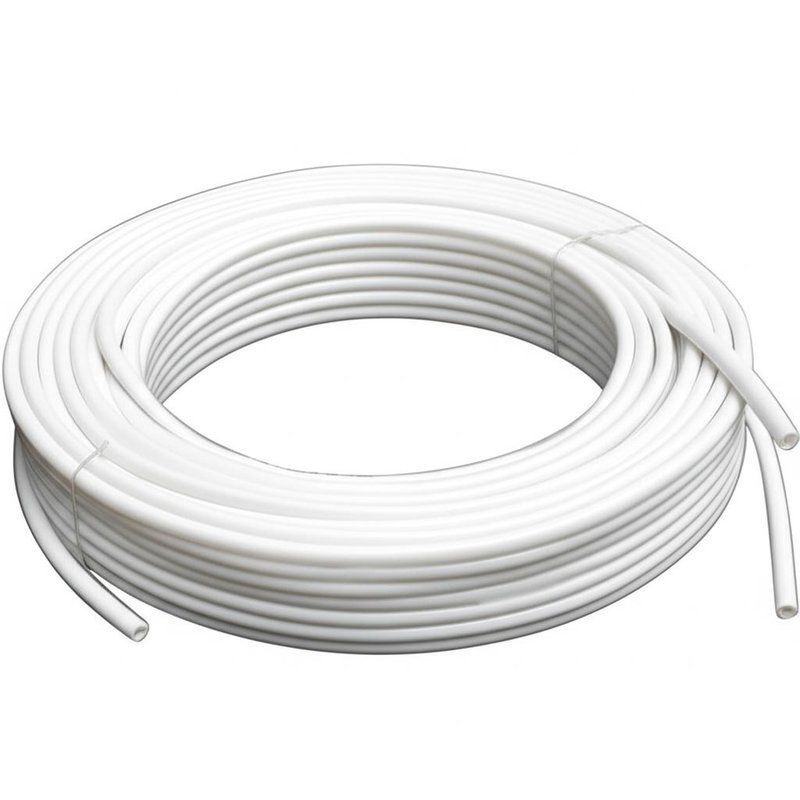

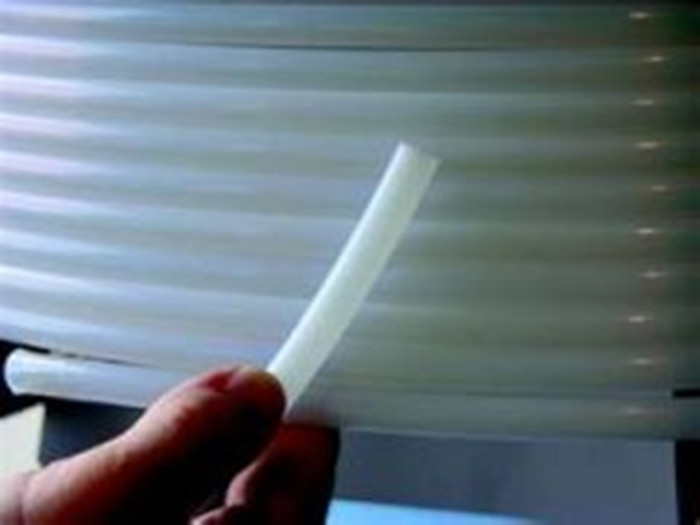

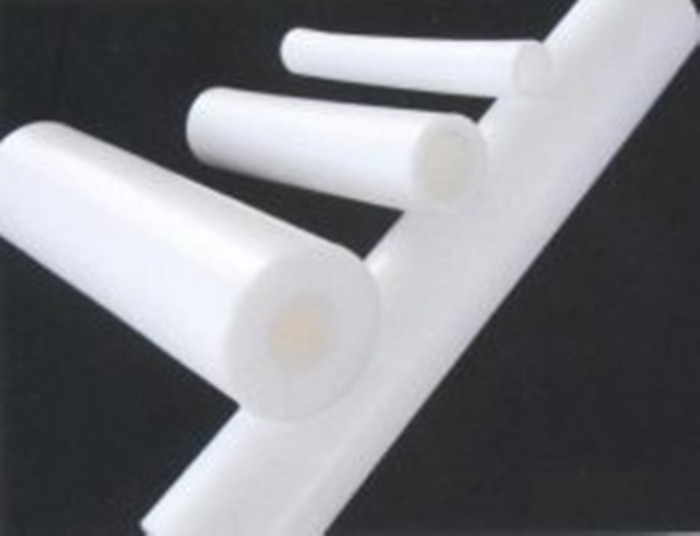

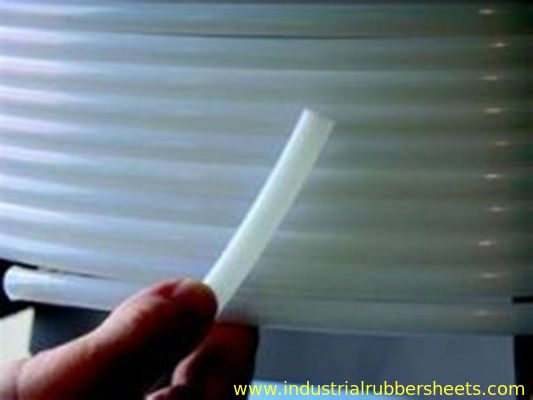

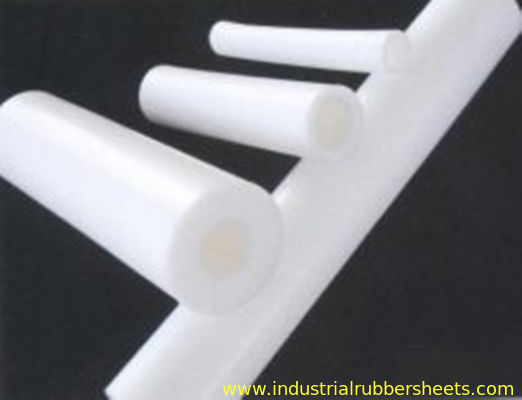

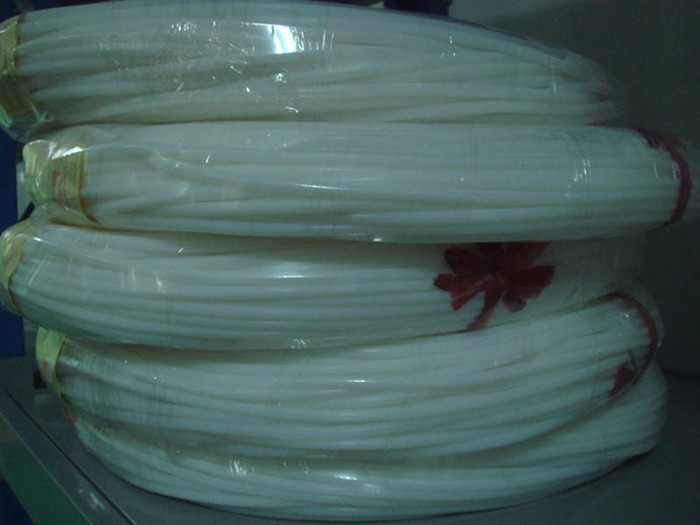

Soft PTFE Tube Ø 2-25mm × Ø 4-30mm × 10-50m length

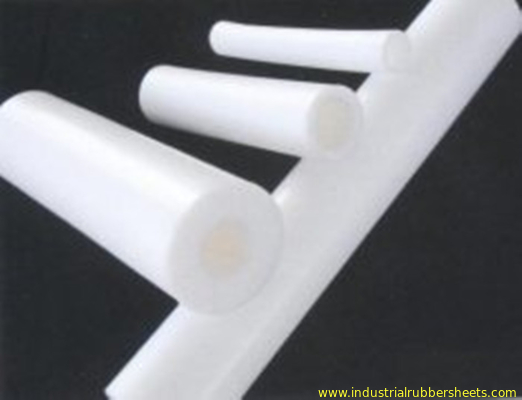

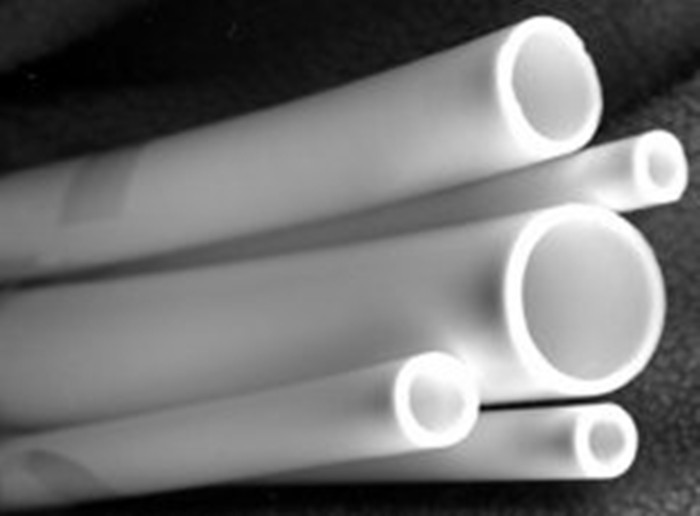

Extruded PTFE Tube Ø 24-104mm × Ø 28-110mm × 4000mm length

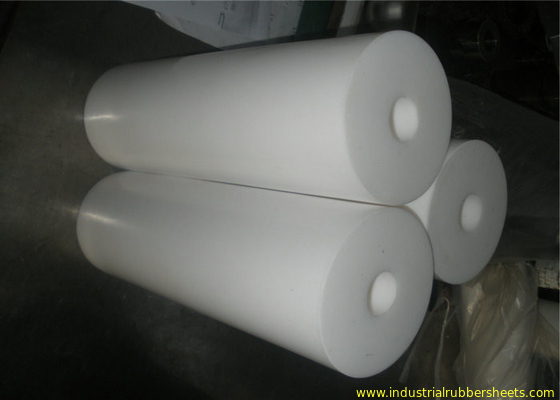

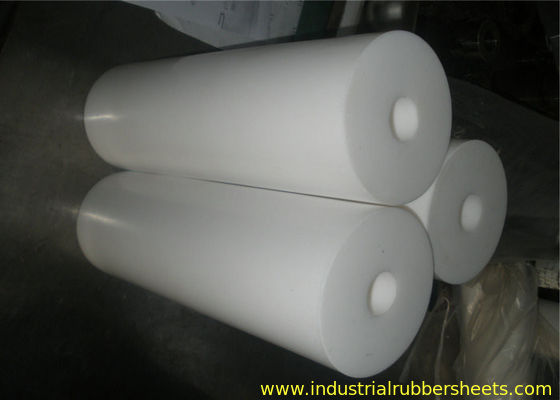

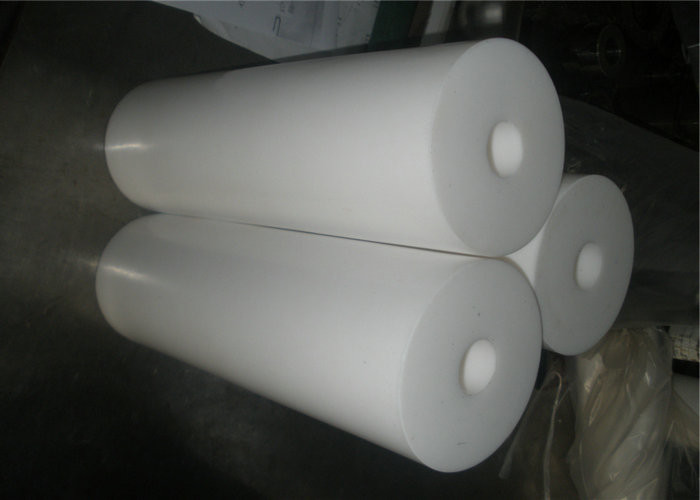

Moulded PTFE Tube Ø 20-200mm × Ø 40-400mm × 10-300mm length
Note: Black PTFE tubing is available with 3% graphite or 10% carbon filling. When requesting a quote, please specify the color, size, and quantity requirements.
