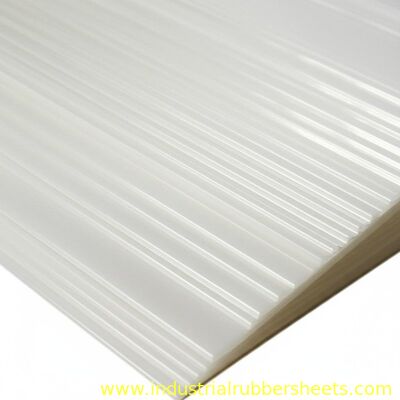

PA6 PA66 Nylon Plastic Sheet / White Nylon Sheet With 90Mpa Tensile Strength

Nylon Sheet, PA6 Sheet Casted or Extruded with 100% Virgin Nylon PA6, PA66 Material

Description: the nylon sheet, PA6 sheet are casted or extruded with 100% virgin nylon PA6, PA66 material. Nylon is recognized as the most widely used and known engineering plastic in the current market. PA6 has the best performance, very tough, even at low temperatures, and high hardness in the surface, toughness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. Its widely used in a variety of mechanical structures and spare parts. Compared to PA6, PA66 own the higher hardness, rigidity, a good resistance to wear and heat deflection temperature. Apply to Bearings, gears, wheels, roller shaft, water pump impeller, fan blades, oil delivery pipe, oil storage pipe, rope, fishing nets and transformer coil.

Specifications:
material: virgin nylon PA6, PA66
color: white, blue, black etc.
surface: smooth/smooth
tensile strength: 90Mpa
bending strength: 155Mpa
compression strength: 111.5Mpa
shear strength: 74-81Mpa
impact(no notch): 520-624Kgf.cm/cm²
hardness: R110-120M91-M88
elongation:10%-30%
density: 1.16g/cm³
surface resistivity: 1x10¹³-10¹⁵ohm
volume resistivity: 1x10¹³-10¹⁵ohm.CM
vicat heat: 160-180kg.cm/cm²
heat distortion temperature: +165°C
standard size:
8-60mm x 1000mm x 2000mm
8-60mm x 1220mm x 2440mm
OEM size is agreed
***when you enquiry, pls confirm the color, size and quantity***
