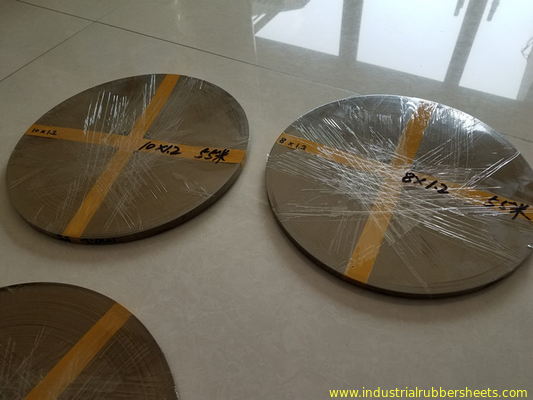

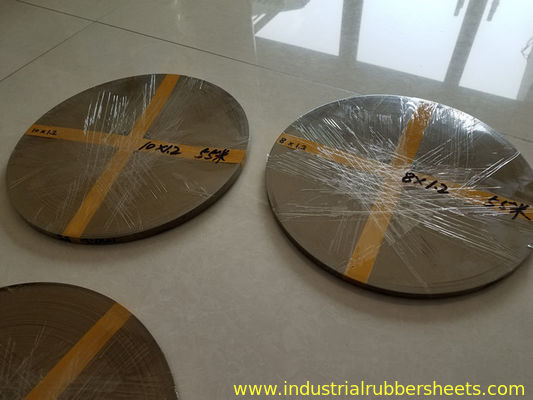

0.8mm Thickness 60%PTFE+40%Bronze Industrial Rubber Sheet PTFE Guide Tape with 15m/s Working Speed
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A3007 |
| Minimum Order Quantity | 10rolls |
| Price | negotation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 10000kgs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 60%PTFE+40%bronze | Color | Brown,green |
|---|---|---|---|
| Working Temperature | -60℃-+260℃ | Working Speed | 15m/s |
| Working Pressure | 15Mpa@25°C, 12Mpa@80°C, 8Mpa@120°C | Tensile Strength | 14-16Mpa |
| Density | 2.7-3.3g/cm³ | Elongation | 170% |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description

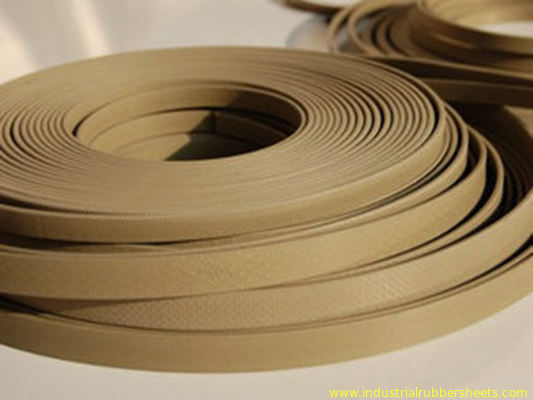

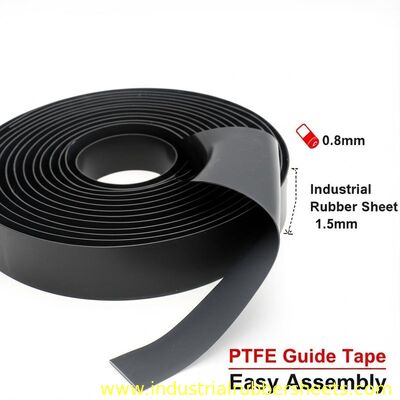

PTFE Guide Tape - Industrial Rubber Sheet with Easy Assembly
PTFE Guide Stripe Tape (GST) is a high-performance nano-polymer composite material designed for precision machine tools requiring exceptional accuracy. Available in thicknesses of 0.8mm, 1.0mm, and 1.5mm, this advanced guide tape delivers superior friction and wear properties for CNC equipment and high-end processing centers.
Product Overview
Our PTFE guide stripe tape contains rich solid lubricant particles that provide excellent friction and wearing characteristics. Through advanced nano super-fine formulation, uniform material density, and exceptional wear resistance, these soft bands are ideal for various industrial applications including common machine tools, textiles, printing, paper manufacturing, food processing, chemical engineering, woodworking, and maintenance of mechanical sliding guides.
Technical Specifications
| Material Composition | 60% PTFE + 40% Bronze |
| Pressure Rating | 15Mpa @ 25°C, 12Mpa @ 80°C, 8Mpa @ 120°C |
| Temperature Range | -60°C to +260°C |
| Maximum Speed | 15m/s |
| Wear Resistance | Approximately 10 times greater than cast iron guide, ensuring excellent accuracy maintenance |
| Friction Coefficient | <0.04 (only 1/3 of cast iron guide), significantly reducing driving energy consumption |
Key Features & Benefits
- Exceptional wear resistance for long-lasting performance
- No creeping - ensures steady, consistent movement
- Superior shock-absorbing ability improves processing accuracy
- Low friction coefficient reduces energy consumption
- Excellent lubrication suitable for dry use (depending on load)
- Outstanding temperature resistance across wide range
- Compatible with most industrial fluids
- Easy assembly and installation process
- Simplified maintenance - lower hardness than metal means friction primarily affects the bands, allowing for easy replacement while protecting machine tool body from damage
Available Dimensions
Thickness Options
0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0mm
Width Options
3.2, 4.2, 5.0, 5.6, 6.0, 6.3, 8.0, 8.1, 9.7, 10, 12, 12.7, 13, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 120, 150, 200, 300mm
Length
10-20 meters (Custom OEM sizes available upon agreement)
Special Options

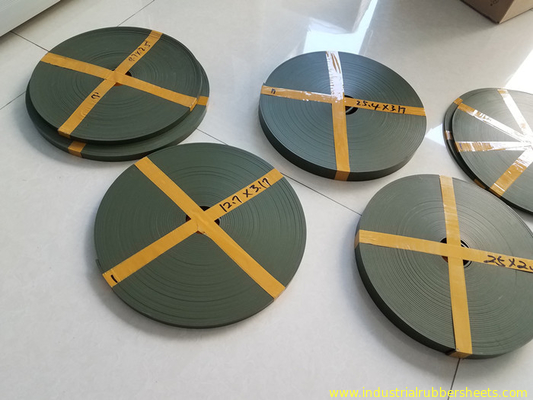

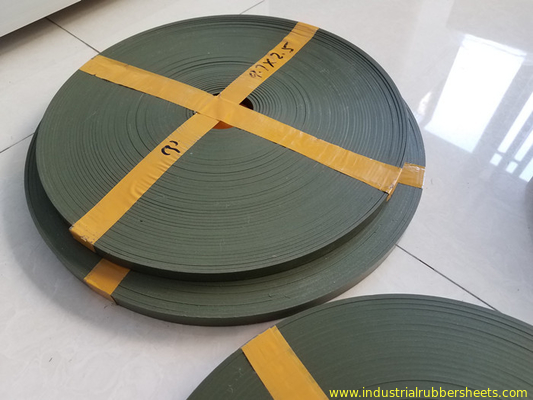

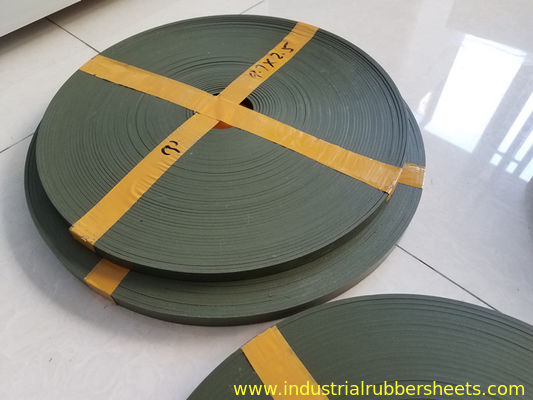

Phenolic guide tape reinforced fabric available in red and green colors
Important: When requesting a quotation, please specify the required material, color, size, and quantity for accurate pricing and availability.
