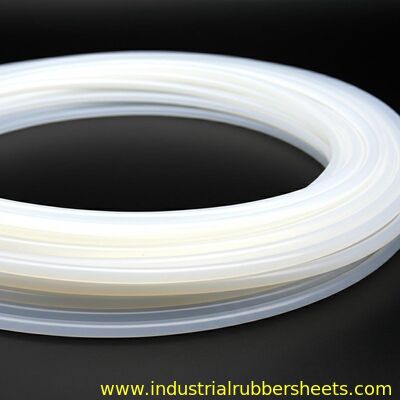

Corrosion Resistance PTFE Tubing and Teflon Tube with Translucent Density 2.1-2.3g/cm³ for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3003 |
| Minimum Order Quantity | 1 rolls |
| Price | neogation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after recieved payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 10000kgs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 100% Virgn PTFE Material | Produced | Extruded |
|---|---|---|---|
| Quality | Industrial Grade,food Grade | Color | White,transparent,black |
| Surface | Smooth | Working Temperature | -180℃-+260℃ |
| Hardness | 55shore D | Density | 2.1-2.3g/cm³ |
| Highlight | ptfe tube,ptfe pipe |
||
Product Description
Corrosion Resistant PTFE Tubing with Translucent Density 2.1-2.3g/cm³
High-performance PTFE tubing, hose, and Teflon tube solutions featuring excellent corrosion resistance and translucent properties with density range of 2.1-2.3g/cm³.
Product Specifications
| Material | 100% virgin PTFE, 50% virgin PTFE |
|---|---|
| Filling | Graphite, carbon or bronze |
| Quality | Premium grade, commercial grade |
| Color | White, black |
| Surface | Smooth |
| Tensile strength | 20Mpa |
| Hardness | 55+/-5 shore D |
| Elongation | 200% |
| Density | 2.1-2.3G/cm³ |
| Break down voltage | 10KV/mm |
| Temperature resistance | -180°C to +260°C |
| Soft PTFE tube size | Ø 2-25mm × Ø 4-30mm × 10-50m length |
| Extruded PTFE tube size | Ø 24-104mm × Ø 28-110mm × 4000mm length |
| Moulded PTFE tube size | Ø 20-200mm × Ø 40-400mm × 10-300mm length |
Note: Black color available with 3% graphite or 10% carbon filling. When inquiring, please confirm color, size, and quantity requirements.
Physical Characteristics
Manufactured through moulding or extrusion processes using high-quality polytetrafluoroethylene (PTFE) material. PTFE represents the most chemically resistant polymer among all known plastic materials. Features exceptional corrosion resistance, weathering resistance, dielectric properties, and the lowest coefficient of friction among all known solid materials. Operates effectively across a wide temperature range from -180°C to +260°C with a wax-like surface that resists adhesion.
Manufacturing Process
Ø 2-9mm tubes are produced via paste extrusion, Ø 10-50mm tubes through RAM extrusion, and Ø 50-300mm tubes via moulding processes. PTFE maintains the best electrical properties of all plastics, making it ideal for electrical insulation across various frequencies, corrosive medium seal liners, anti-sticking applications, and lubrication requirements.
Key Features
- Flat and tidy surface with no defects, crevices, or separations
- Low minimum order quantity requirements
- Comprehensive customer service support
- Superior chemical resistance among all known plastics
- Excellent electrical insulation properties
Applications
PTFE tubes are widely utilized across multiple industries including chemical processing, electrical and electronic components, machinery manufacturing, automotive systems, air conditioning, aviation, national defense, textile production, petroleum refining, and telecommunications.
