Premium Grade Red Color Smooth Impression Fabric Industrial Rubber Sheet Natural Gum Rubber Sheet
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Natural Rubber | Surface | Smooth/Impression |
|---|---|---|---|
| Color | Red | Tensile Strength | 22-24Mpa |
| Hardness | 40Shore A | Elongation | 760% |
| Density | 1.05g/cm3 | ||
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description
Smooth / Impression Fabric Industrial Rubber Sheet Red Color With Premium Grade
Premium Natural Rubber Sheet made from pure natural rubber with smooth or impression fabric surface. Manufactured using ROTOCURE vulcanizing press for superior quality and performance.
Product Overview
Our natural rubber sheets are produced from high-quality natural rubber (NR) sourced from rubber trees. These sheets feature medium hardness with exceptional tensile strength, high elongation, excellent abrasion resistance, superior elasticity, and are completely safe and non-toxic without any odor. Also known as gum rubber sheet or PARA rubber sheet.
Key Features
- Available in thicknesses 1-6mm (ROTOCURE press with shiny surface) and 7-80mm (standard vulcanizing press)
- Operates effectively in temperatures from -35°C to +85°C in air or water
- Excellent performance under high pressure conditions
- Superior wear resistance properties
- Food grade lining capabilities
- Ideal for punching seals, gaskets, and various industrial applications
- Perfect for truck lining, drinking water lining, and PVC vacuum laminating press membranes
Standard Specifications
| Parameter | Specifications |
|---|---|
| Material | Pure Natural Rubber or NR/SBR |
| Quality Grade | Industrial Grade, Food Grade |
| Available Colors | Black, White, Brown, Beige, Red, Green, etc. |
| Surface Finish | Smooth/Smooth, Smooth/Impression Fabric, Double Impression Fabric |
| Tensile Strength | 2-24 Mpa |
| Hardness | 35, 40, 50, 60, 70, 80 +/-5 Shore A |
| Elongation | 170%-760% |
| Density | 1.05-1.70 g/cm³ |
| Working Temperature | -35°C to +85°C |
| Thickness Range | 1.0-50.0 mm |
| Width Range | 0.1-3.6 m |
| Length Range | 1.0-20 m |
| Insertion | Reinforce to insert 1-3PLY fabric |
Natural Rubber Lining Sheet Specifications
| Parameter | Specifications |
|---|---|
| Top Layer | Cured natural rubber with red or black |
| Bottom Layer | Uncured neoprene rubber with light yellow |
| Quality Grade | Industrial Grade, Food Grade |
| Surface Finish | Smooth/Smooth |
| Tensile Strength | 13-18 Mpa |
| Hardness | 35, 40, 65 +/-5 Shore A |
| Elongation | 400%-650% |
| Density | 1.05-1.15 g/cm³ |
| Working Temperature | -35°C to +85°C |
| Thickness Range | 1.0-25.4 mm |
| Width Range | 1-1.5 m |
| Length Range | 10-20 m |
Important: When requesting a quote, please specify tensile strength, hardness, color, dimensions, and quantity requirements.

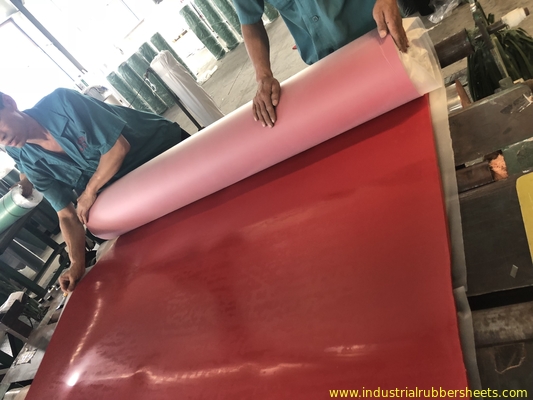

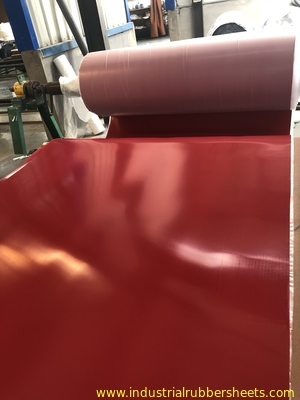

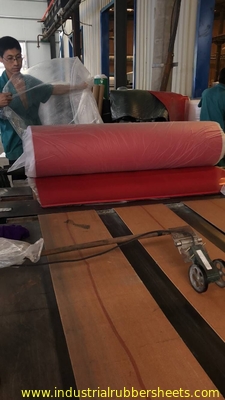

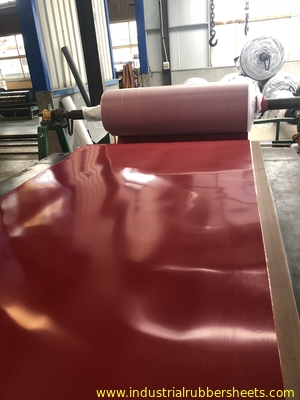

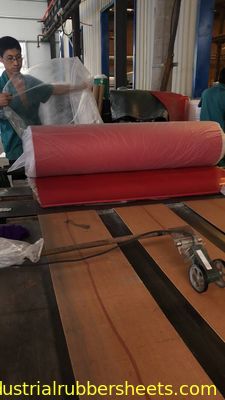

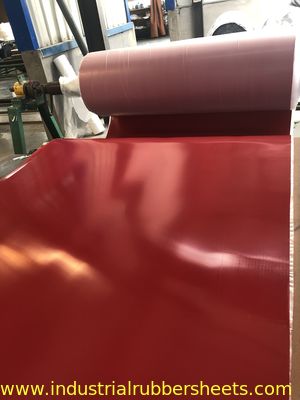

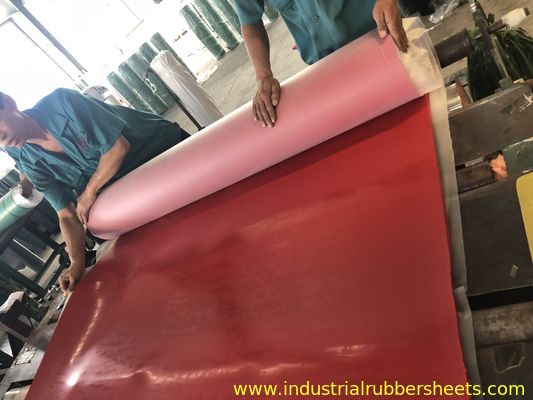

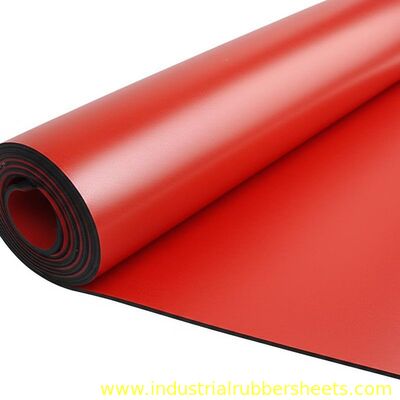

Product Images
