NBR Rubber Industrial ESD Antistatic Rubber Sheet with 2-3mm Thickness for Electro-Static Discharge Protection
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5011 |
| Minimum Order Quantity | 10rolls |
| Price | neogation |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 1000000SQM per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | NBR Rubber | Quality | Industrial Quality |
|---|---|---|---|
| Color | Green,black,blue,grey | Surface | Smooth,sand |
| Thickness | 2.0,3.0mm | Width | 1-1.2m |
| Length | 1-10m | ||
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description

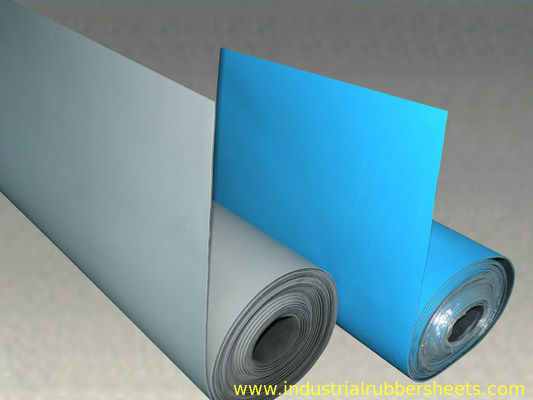

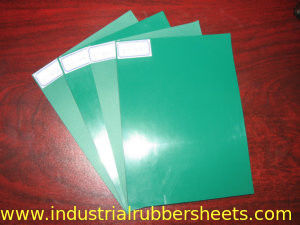

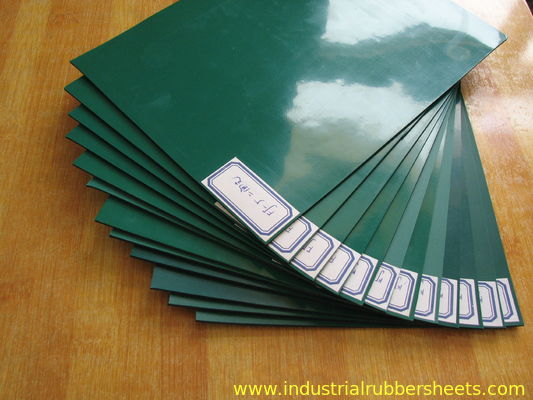

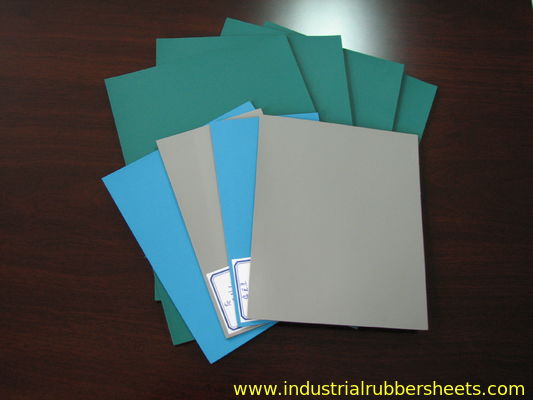

Antistatic ESD Industrial Rubber Sheet Rolls
Premium ESD Protection Solutions
High-quality ESD rubber sheets available in green, blue, grey, and black colors.
Our antistatic rubber sheets provide superior electrostatic discharge protection
for demanding industrial applications.
Product Characteristics
Manufactured using drum-type vulcanizing press (ROTOCURE) technology with premium
nitrile-butadiene rubber (NBR). Our specialized formulation and production process
deliver exceptional antistatic performance. ESD rubber sheets feature moderate hardness
with high tensile strength, odor-free composition, excellent abrasion resistance,
oil resistance, and superior elasticity. Designed to operate in medium pressure
conditions within a temperature range of -35°C to +100°C in air. Ideal for electronics,
textile, printing, dyeing, and other industries with similar or higher requirements.
Technical Specifications
| Material | 100% virgin NBR Rubber |
|---|---|
| Color | Green/black, blue/black, grey/black |
| Surface | Shiny/smooth or sand/smooth |
| Top Resistance | 10^7-10^9 ohm |
| Bottom Resistance | 10^3-10^5 ohm |
| Electrostatic Pressure Attenuation | 0.1S |
| Tensile Strength | 6-8 MPa |
| Hardness | 65+/-5 shore A |
| Elongation | 300% |
| Density | 1.4 G/cm³ |
| Working Temperature | -35°C to +100°C |
| Thickness | 2-3 mm |
| Width | 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2 m |
| Length | 10-20 m |
Important: When requesting a quote, please specify your required color, size, and quantity.
