Weathering / Chemical Resistance Moulded PTFE Tubing / White PTFE Hose
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3003 |
| Minimum Order Quantity | 10pieces |
| Price | neogation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | L/C, T/T, Western Union,Paypal |
| Supply Ability | 100000 kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 100% Virgin PTFE Material | Produced | Moulded |
|---|---|---|---|
| Quality | Industrial Grade,food Grade | Color | White,blak,brown |
| Surface | Smooth | Tensile Strength | 20Mpa |
| Elongation | 200% | Density | 2.1-2.3g/cm³ |
| Hardness | 55shore D | ||
| Highlight | ptfe tube,ptfe pipe |
||
Product Description

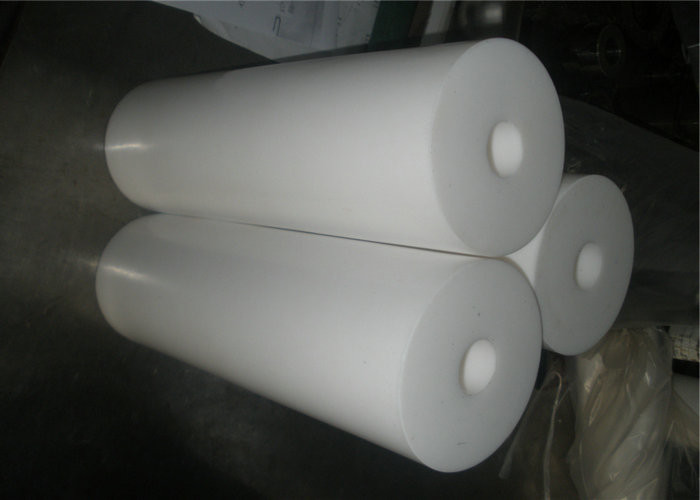

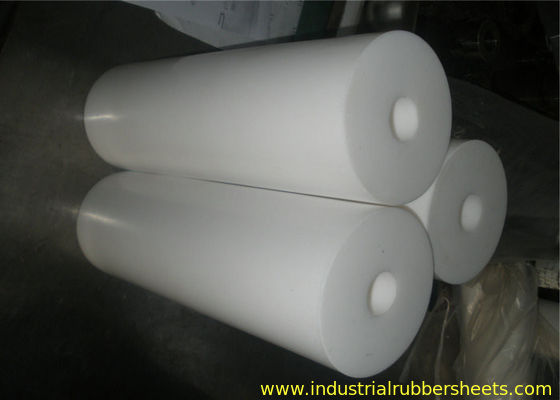

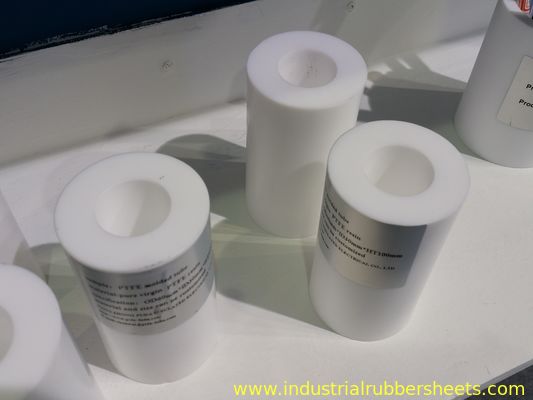

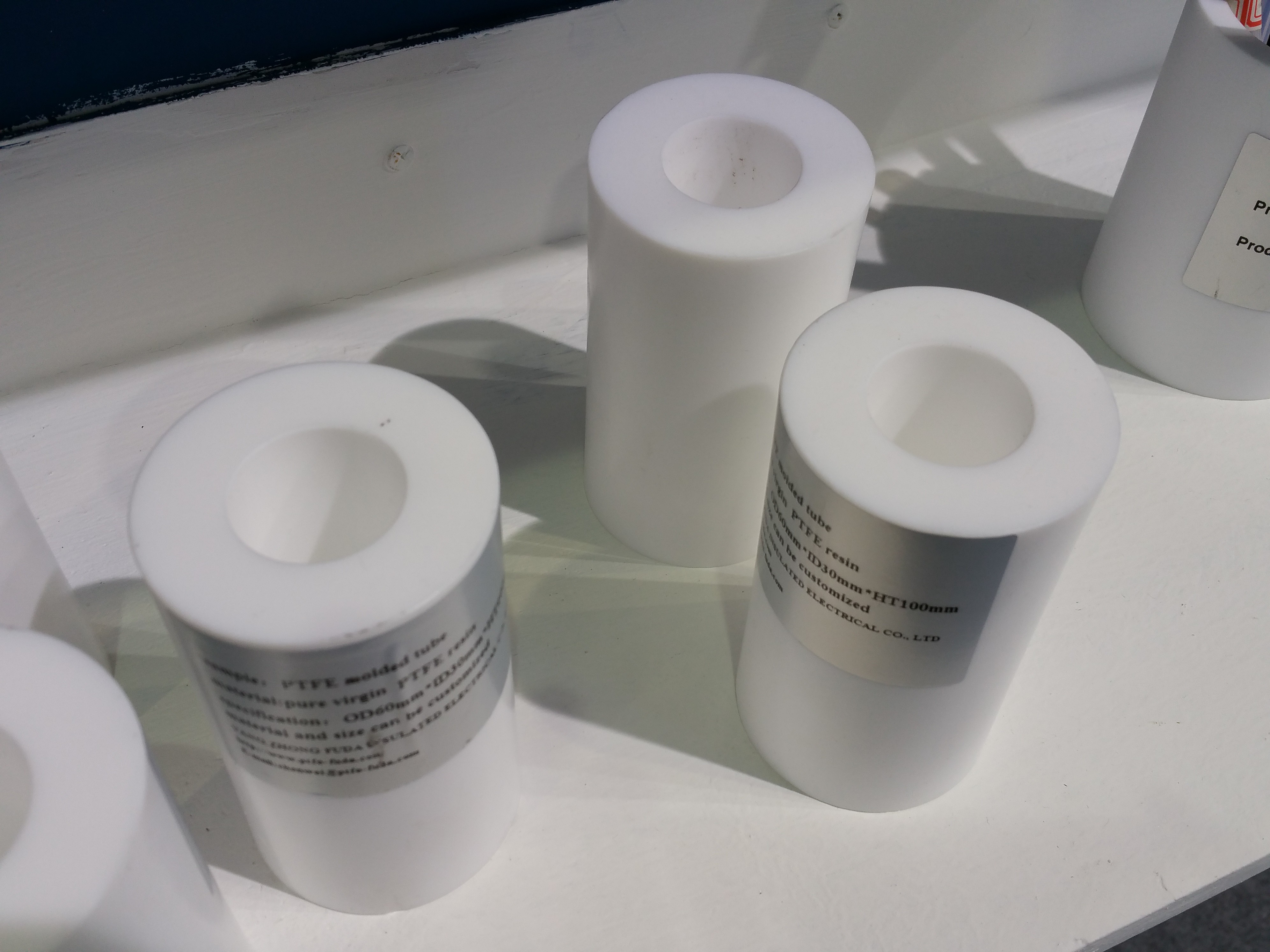

PTFE Tube, PTFE Hose, PTFE Tubing, PTFE Pipe Made with 100% Virgin PTFE
Physical character: Made by moulded or extruded with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180° C - +260° C and a wax-like surface to which anything hardly sticks. Ø 2-9mm is made by paste extruded, Ø 10-50mm is made by RAM extruded, Ø 50-300mm is made by moulded. It has the best electrical properties of all plastics. The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosively medium, anti-sticking materials, lubrication material.
Specifications:
| Material | 100% virgin PTFE, 50% virgin PTFE |
| Filling | Graphite, carbon or bronze |
| Quality | Premium grade, commercial grade |
| Color | White, black |
| Surface | Smooth |
| Tensile strength | 20Mpa |
| Hardness | 55+/-5shore D |
| Elongation at break | 200% |
| Density | 2.1-2.3G/cm3 |
| Break down voltage | 10KV/mm |
| Temp resist | -180° C - +260° C |

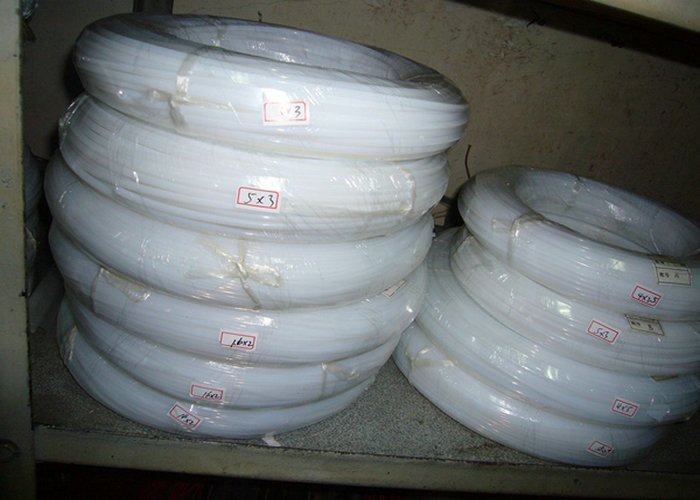

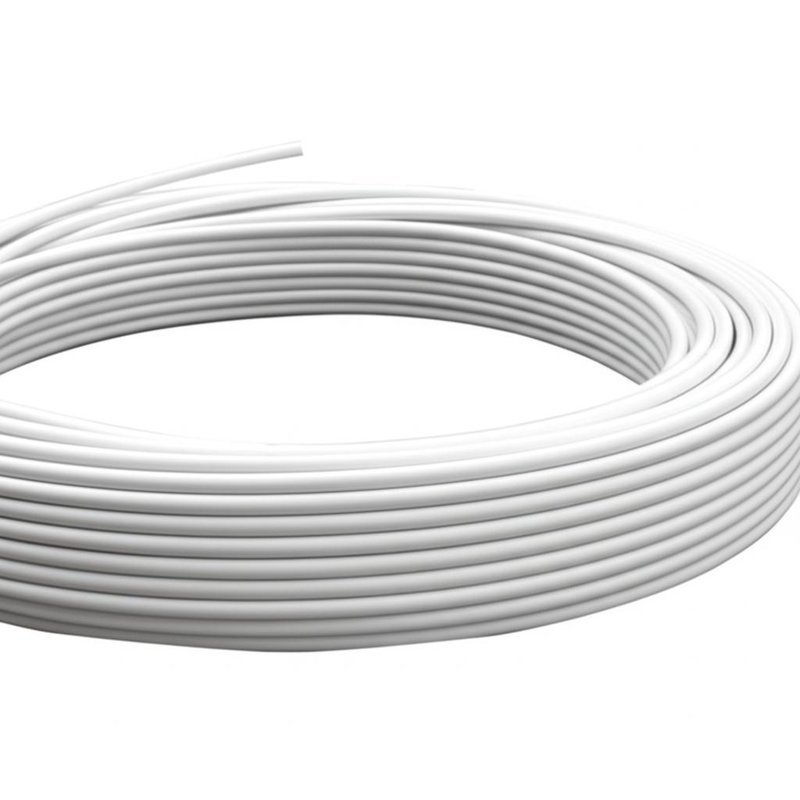

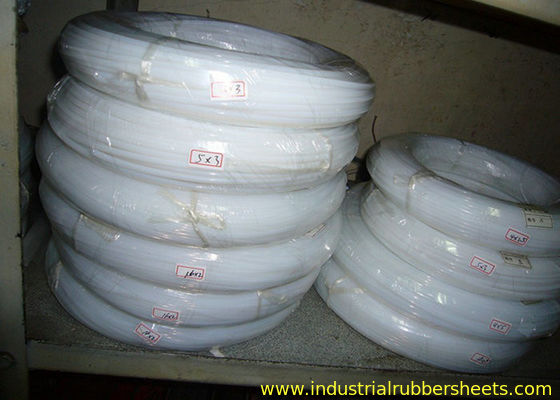

| Size for soft PTFE tube | Ø 2-25mm X Ø 4-30mm X 10-50m length |
| Size for extrude PTFE tube | Ø 24-104mm X Ø 28-110mm X 4000mm length |
| Size for moulded PTFE tube | Ø 20-200mm X Ø 40-400mm X 10-300mm length |
Black available to fill 3% graphite or 10% carbon
***when you enquiry, pls confirm the color, size and quantity***
