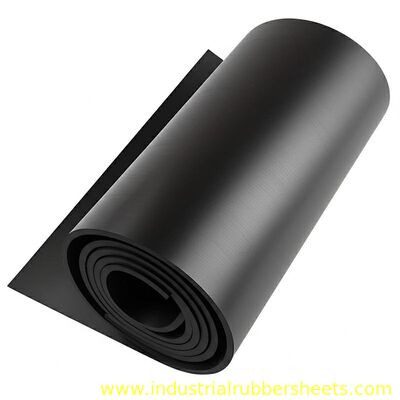

Industrial Grade 100% Virgin Neoprene Rubber Sheet - Chemical Corrosion Resistant Neoprene Lining
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5003 |
| Minimum Order Quantity | 100kgs |
| Price | neogation |
| Packaging Details | packing in rolls |
| Delivery Time | 5-10days after received your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000pieces per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 100% Virgin Neoprene Or CR/SBR | Quality | Premium Grade, Industrial Grade, Commercial Grade |
|---|---|---|---|
| Color | Black, White, Red, Grey Etc. | Surface | Smooth/smooth, Smooth/impression Fabric, Double Impression Fabric |
| Tensile Strength | 4-16Mpa | Hardness | 40, 50, 60, 70, 80+/-5shore A |
| Elongation | 250%-380% | Density | 1.40-1.55g/cm3 |
| 1.40-1.55g/cm3 | -30°C - +120°C | ||
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description
Black 100% Virgin Neoprene Rubber Sheet / Industrial Grade Neoprene Lining
High-quality black neoprene rubber sheets and linings designed for various sealing applications, gaskets, and mechanical equipment components.
Product Overview
Our neoprene rubber sheets and linings are manufactured using drum-type vulcanizing press (ROTOCURE) or plain vulcanizing press with premium neoprene rubber (CR synthetic rubber). These sheets feature medium hardness with high tensile strength and deliver exceptional performance in resisting acids, alkalis, ozone, aging, chemical corrosion, and seawater. The material is odor-free and operates effectively in liquids containing up to 20% acid or alkali at temperatures ranging from -30°C to +120°C.
Sheets with 1-6mm thickness are produced using drum-type vulcanizing press with a shiny surface, while 7-80mm thickness sheets are manufactured using vulcanizing press for achieving higher thickness requirements.
General Specifications
| Material | 100% virgin neoprene or CR/SBR |
| Quality Grades | Premium grade, industrial grade, commercial grade |
| Available Colors | Black, white, red, grey, and others |
| Surface Types | Smooth/smooth, smooth/impression fabric, double impression fabric |
| Tensile Strength | 4-16 MPa |
| Hardness | 40, 50, 60, 70, 80 ±5 Shore A |
| Elongation | 250%-380% |
| Density | 1.40-1.55 g/cm³ |
| Working Temperature | -30°C to +120°C |
| Thickness Range | 0.5-50.0 mm |
| Width Range | 0.1-3.6 m |
| Length Range | 0.1-20 m |
| Insertion Options | Reinforce and insert 1-3PLY cotton, polyester or EP fabric |
Neoprene Rubber Lining Sheet Specifications
| Construction | Top: cured neoprene rubber (black) Bottom: uncured neoprene rubber (light yellow) |
| Quality Grade | Industrial grade |
| Surface Type | Smooth/smooth |
| Tensile Strength | 9 MPa |
| Hardness | 65 ±5 Shore A |
| Elongation | 400% |
| Density | 1.5 g/cm³ |
| Working Temperature | -35°C to +120°C |
| Thickness Range | 1.0-25.4 mm |
| Width Range | 1-1.5 m |
| Length Range | 10-20 m |
Important: When submitting an inquiry, please confirm the required tensile strength, hardness, color, dimensions, and quantity specifications.

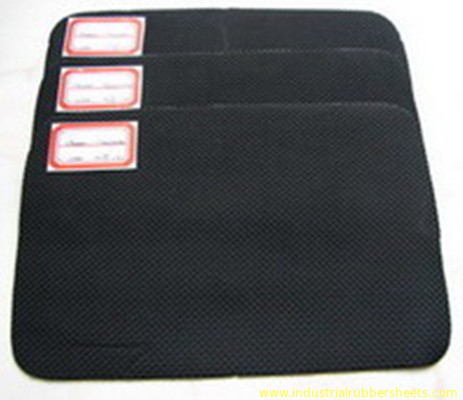

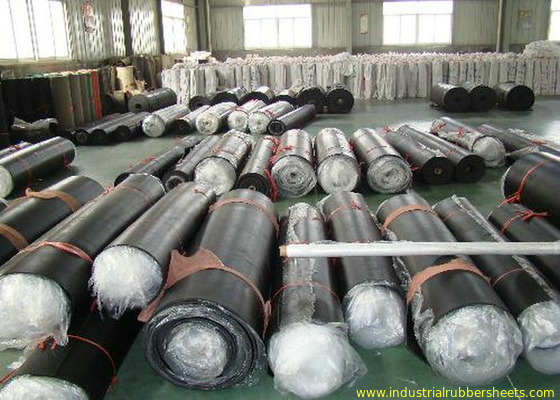

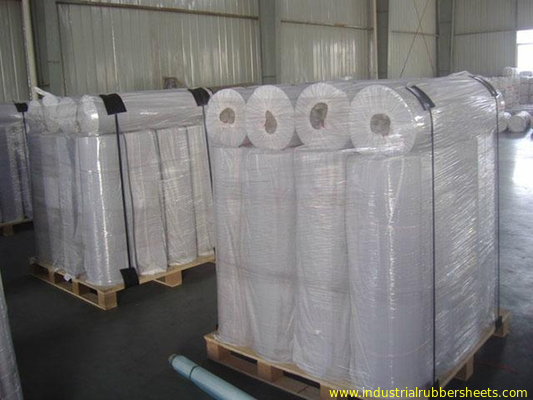

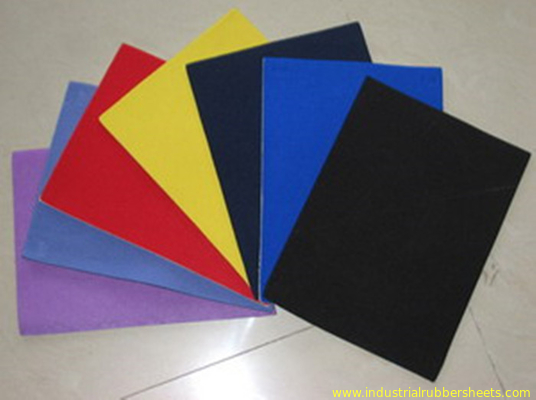

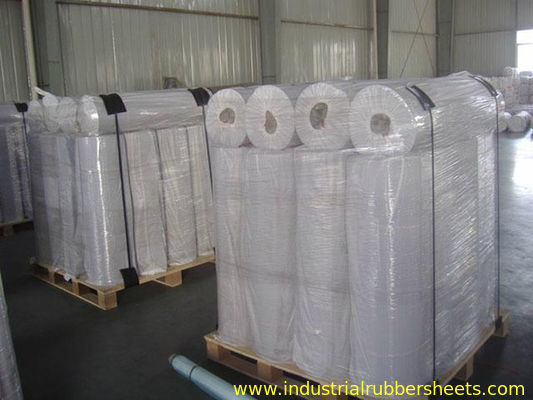

Product Images
