High Temperature Resistant FKM Rubber Sheet with Tensile Strength 6-12Mpa and Hardness 60-80 Shore A for Industrial Use
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A5007 |
| Minimum Order Quantity | 200kgs |
| Price | negotiation |
| Packaging Details | Packed in rolls and pallets |
| Delivery Time | 10-20 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 100000kgs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Virgin FKM Rubber | Quality | Premium Grade, Economic Grade, Commercial Grade |
|---|---|---|---|
| Color | Black, White, Red, Green Etc. | Surface | Smooth Or Impression Fabric |
| Tensile Strength | 6-12Mpa | Hardness | 60, 70, 80+/-5shore A |
| Elongation | 200% | Density | 1.9-2.1g/cm3 |
| Working Temperature | -40°C - +320°C | Thickness | 0.5-20mm |
| Width | 1-3.6m | Length | 1-20m |
| Highlight | rubber sheet rolls,waterproof rubber sheet |
||
Product Description

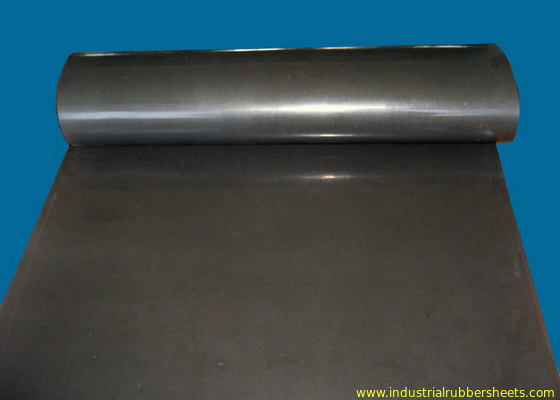

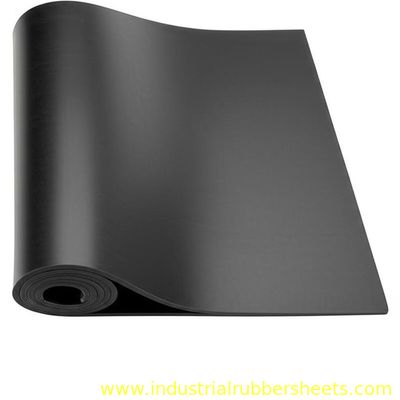

Oil Resistant FKM Industrial Rubber Sheet
Thickness Range: 0.5 - 20.0mm
High-performance FKM rubber sheets (fluorubber) designed for demanding industrial applications requiring exceptional resistance to oils, chemicals, and extreme temperatures.
Key Features
- Excellent oil, chemical, and temperature resistance
- Available in multiple grades including industrial and FDA compliant
- Wide range of thicknesses, colors, and surface finishes
- Superior mechanical properties for sealing applications
- Customizable with fabric or metal mesh reinforcements
Technical Specifications
| Property | Value |
|---|---|
| Material | Virgin fluorubber |
| Quality Grades | Industrial grade, FDA grade (postcure) |
| Available Colors | Black, grey, brown, red, green, etc. |
| Surface Options | Smooth/smooth, smooth/impression fabric, double impression fabric |
| Tensile Strength | 7-12 MPa |
| Hardness | 60, 70±5 Shore A |
| Elongation | 200% |
| Density | 1.9-2.1 g/cm³ |
| Temperature Range | -40°C to +320°C |
| Thickness Range | 0.5-20.0 mm |
| Width Range | 0.1-2.0 m |
| Length Range | 0.1-20 m |
Manufacturing Process

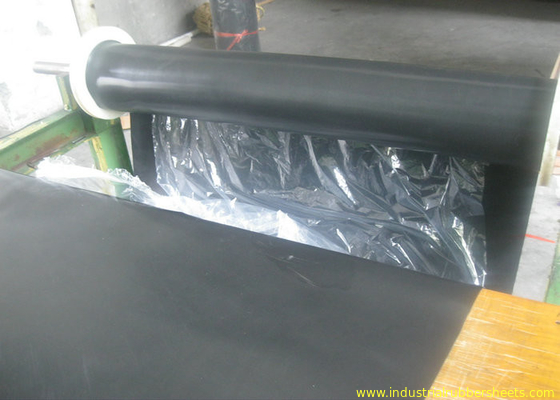

Our FKM rubber sheets are produced using either drum-type vulcanizing press (ROTOCURE) for thicknesses 1-6mm (providing a shiny surface) or standard vulcanizing press for thicker sheets (7-20mm).
Performance Characteristics
- High heat aging resistance
- Excellent temperature stability
- Ozone resistant
- Superior oil and chemical resistance
- Vacuum resistant
- Acid and alkali resistant
- Chemical corrosion resistant
These sheets maintain excellent performance in air, oil, acid, alkali, and various chemical solutions containing 100% corrosive materials within the specified temperature range.
Applications
Ideal for manufacturing seals, gaskets, and other components in demanding industries including:
- Military and aerospace
- Chemical processing
- High-tech manufacturing
- Oil and gas
- Pharmaceutical
Customization Options
We can accommodate special technical requirements including:
- Insulation properties
- Textile or fabric insertion
- Metal mesh reinforcement
- Mat surface finishes
Please specify your required size and quantity when inquiring. We also supply FKM cord, hose, gasket, rings, and other related products.
