Anti-Water Flame Resistant PTFE Coated Fiberglass Fabric Sheet with Chemical Resistance
| Place of Origin | China |
|---|---|
| Brand Name | 3A Rubber |
| Certification | ROHS/FCC/SGS |
| Model Number | 3A3008 |
| Minimum Order Quantity | 1roll |
| Price | negotiation |
| Packaging Details | Packed in rolls |
| Delivery Time | 10 working days after received your payment |
| Payment Terms | T/T,L/C,Paypal,Western Union |
| Supply Ability | 10000rolls per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicone+glassfiber+silicone | Color | Dark Red |
|---|---|---|---|
| Working Tempature | Maximum 260°C | Thickness | 0.25-0.8mm |
| Width | 1.25-1.50m | Length | 20-100m |
| Highlight | ptfe coated fiberglass cloth,silicone coated fiberglass fabric |
||
Product Description

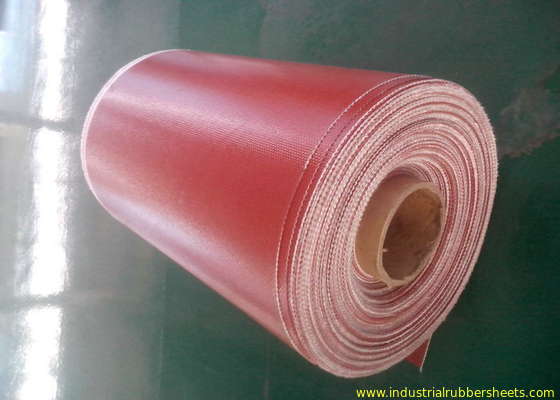

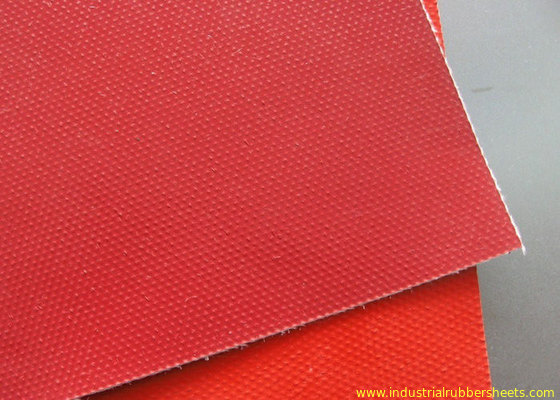

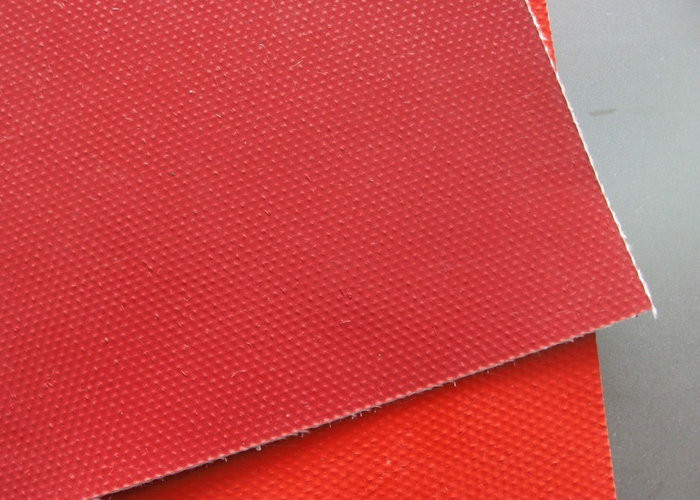

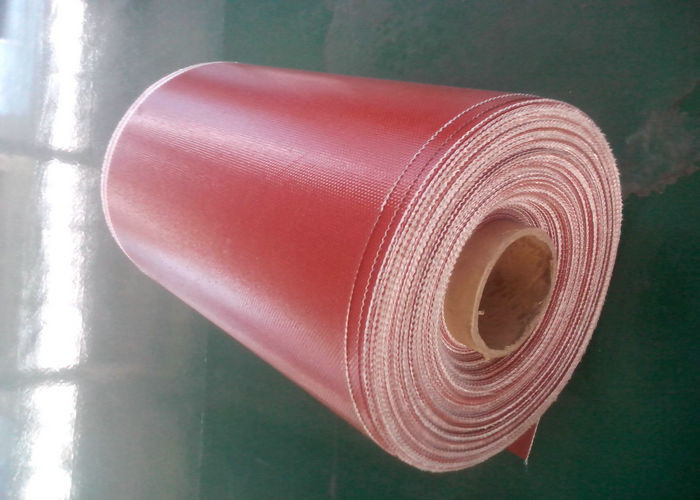

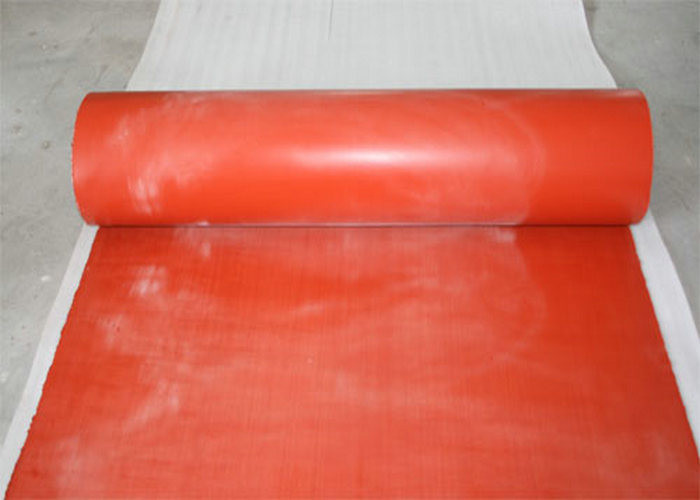

Anti-Water PTFE Coated Fiberglass Fabric Sheet, Flame Resistant Fabric
High Temperature Single Side Silicone Coated Fiberglass Fabric and Cloth
Key Properties
- Superb electric insulation
- Excellent heat and cold resistance
- Effective sealing properties
- Resistant to most chemical reagents
- Water and oil repellent
- Soft, pliable, and easy to tailor with good processing performance
- Working temperature up to 1000°C with high silica fiberglass fabric substrate
Product Description
Silicone coated fabric is a high-performance, multifunctional thermal insulation material. With its chemical stability, high temperature resistance, and ablation resistance, it is widely used in fireproof applications (including fireproof protective cloth, fireproof curtains, and welding blankets), as well as for pipe thermal insulation and anticorrosion.
TYCM is a specialized manufacturer of silica fiberglass in China with proprietary technology. Our products are supplied to major state-owned industrial enterprises in China and exported internationally. We offer both single-sided and double-sided silicone coated fiberglass fabric in various coating weights and colors for diverse applications.
Technical Specifications
| ITEM | STANDARD | TEST DATA |
|---|---|---|
| PRODUCT CODE | DRS-46 | DRS-46 |
| BASE FABRIC | HS-1100 | HS-1100 |
| WIDTH, CM | 92±1 | 92.00 |
| WEAVE STYLE | Satin 12HS | Satin 12HS |
| WARP COUNTS, ends/cm | ≥18 | 21.11 |
| FILL COUNTS, ends/cm | ≥13 | 15.05 |
| MD BRK STRN, N/inch | ≥ 1000 | 1021 |
| CD BRK STRN,N/inch | ≥ 750 | 793 |
| WEIGHT, G/M² | 1400±20 | 1389 |
| STD ROLL, Y/roll | 50.0 | 50.0 |
| THICKNESS, mm | 1.3 ± 0.05 | 1.4 |
| SILICA CONTENT % | ≥ 96 | 97.04 |
| LINEAR SHRINKAGE % | 5-10 | 6.1 |
| L.0.I % | 7-12 | 8.4 |
| WORKING TEMPERATURE | 1000 ℃ | 1000 ℃ |
| SILICON WEIGHT, warp side | 300G/M² | 300G/M² |
| COLOR | DER,GREY... | DER,GREY... |
