White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade

China White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade supplier
White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade supplier White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade supplier

Large Image :  White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade

Product Details:

Place of Origin: China
Brand Name: 3Arubber
Certification: RoHS/FCC/SGS
Model Number: 3A3005

Payment & Shipping Terms:

Minimum Order Quantity: 10rolls
Price: neogation
Packaging Details: packed in cartons
Delivery Time: 10 working days after recieved your payment
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100000rolls per month
Contact Now
Detailed Product Description
Material: Pure PTFE Dispersion Resin Color: White
Quality: Food Grade Adhesive: One Side Adhesive Or Not
Cross: Rectangle Or Round Hardness: 30-70 Shore A
Working Temperature: -168℃-+280℃(maximum+135℃)

White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape with Food Grade ,Hardness 30-70shore A



Description:

Made from import Dakin PTFE material, the expanded PTFE joint sealant tape with self-adhesivehas have very good flexibility, compression resilience, creep resistance, high/low temperature resistance, excellent corrosion resistance, non-aging property and self-lubricity.



Application Range:

For sealing various enameled linings, glass linings, plastic linings, rubber linings, graphite linings, and the flange faces of stainless/titanium steel towers, heat exchangers, reactors, etc.;

For sealing the flange faces of various pipelines and pipe fittings;

For sealing the flange faces of large-diameter equipment with bad surface machining accuracy, large uneven area, irregular shape and bolt fastening force difficult to be enough or unsuitable to be too big;

For sealing strongly corrosive media and fluid protected against any pollution.





Specifications:

material pure PTFE dispersion resin
color white, FDA grade
adhesive backing adhesive or not
surface smooth
cross section rectangle, round
tensile strength 8Mpa
hardness 30-70shore A
density 0.7-1.0g/cm3
creep relaxation 70%
volatility 1.0%
PH 0-14
working pressure 1.6Mpa in gas, 6.4Mpa in liquid
working temperature -168°C ~ +280°C(maximum +315°C)
thickness 1.5-7.0mm
width 2.0-1500mm


standard size for square type:




3mm x 1.5/2.0mm x 25/50m
5mm x 2.0/3.0mm x 25/50m
7mm x 2.0/3.0mm x 15/25m
10mm x 3.0/5.0/7.0mm x 15/25m
12mm x 3.0/5.0/7.0mm x 10/15/25m
15mm x 3.0/5.0/7.0mm x 10/15/25m
17mm x 3.0/5.0/7.0mm x 10/15/25m
20mm x 3.0/5.0/7.0mm x 10/15/25m
25mm x 3.0/5.0/7.0mm x 10/15/25m
30mm x 3.0/5.0mm x 5/10m
35mm x 3.0/5.0mm x 5/10m
40mm x 3.0/5.0mm x 5/10m
45mm x 3.0/5.0mm x 5/10m
50mm x 3.0/5.0mm x 5/10m




standard size for round type:
Ø2.4mm, Ø3.0mm, Ø4.0mm up to Ø25.0mm
standard size for PTFE expand sheet:
1.5mm x 1500mm x 1500mm
2.0mm x 1500mm x 1500mm
3.0mm x 1500mm x 1500mm
5.0mm x 1500mm x 1500mm
OEM sizes agreed

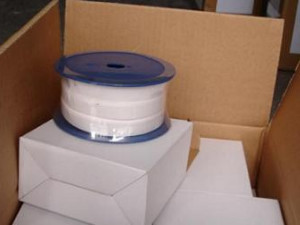

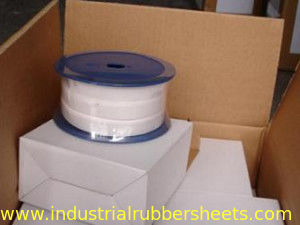

packing in round spool and cartons
***when you enquiry, pls confirm the size and quantity***Specifications:

White Backing Adhesive PTFE Expand Tape , PTFE Expand Tape Food Grade
