Our company production with PTFE tape for 12 years, Please be assured that our quality.
We can assure you that material is 100%, all new PTFE,(There is absolutely no reworked material)

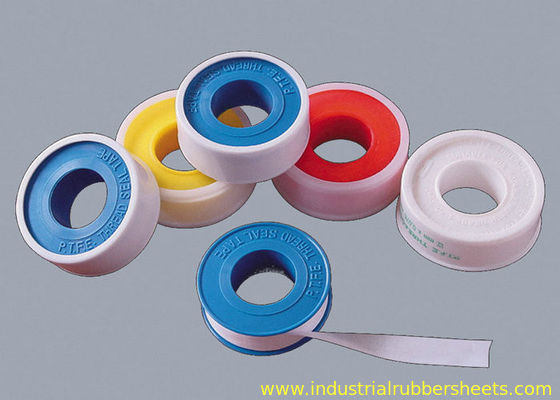

100% PTFE THREAD SEAL TAPE is an ideal material for sealing,which is widly applied in pipe linking systems and other areas.
Product Description
P. T. F. E thread seal tape is an ideal tape for sealing, which is widely applied in construction machinery, chemical industry and other areas, especially in pipe linking systems such as building sealing tape.
With excellent characteristics of our tape such as sealing insulativity, acid-resistance, and corrosion-resistance, it can be widely used under all conditions for a long term.
Specifications of ptfe tape:
1) density: 0.15 - 2.0g/cm.
2) width: 3 - 100mm.
3) length: 5 - 50m.
4) thickness: 0.075 - 0.2mm.
5) color: white or colorful.
6) heat-resistance: +370oc.
7) cold-resistance: -190oc
8) high pressure resistance: 150 - 200kg/cm2
9) tensile strength: =8mpa or according to the demand.
10) percentage elongation: =25%
11) completive prices
12) OEM orders are welcome
inner packing:
10pcs tape wrapped in transparent shrink foil or small box.
outer packing:
100 - 250 spools/carton, 4 cartons/master carton, or as per customer's request or as per customers' requests
Technical Indexes |
|
| Heat resistance | +370°C |
| Cold Resistance | -190°C |
| High-pressure resistance | 250kg/cm2 |
| Tensile strength | 10mm2 |
| Elongation | ≥25% |
Product specification |
||||
| NO. | Width | Thickness | Length | Density |
| 1 | 12mm | 0.075mm | 5m | 0.18g/cm3-1.2g/cm3 |
| 2 | 12mm | 0.075mm | 10m | |
| 3 | 12mm | 0.075mm | 12m | |
| 4 | 12mm | 0.1mm | 10m | |
| 5 | 12mm | 0.1mm | 12m | |
| 6 | 1/2" | 0.075mm | 260" | |
| 7 | 1/2" | 0.075mm | 520" | |
| 8 | 13mm | 0.1mm | 15m | |
| 9 | 19mm | 0.075mm | 10m | |
| 10 | 19mm | 0.075mm | 20m | |
| 11 | 19mm | 0.1mm | 50m | |
| 12 | 19mm | 0.2mm | 15m | |
| 13 | 3/4" | 0.075mm | 260" | |
| 14 | 3/4" | 0.075mm | 520" | |
| 15 | 25mm | 0.075mm | 10m | |
| 16 | 25mm | 0.075mm | 20m | |
| 17 | 25mm | 0.1mm | 50m | |
| According to the buyers requirements production | ||||
