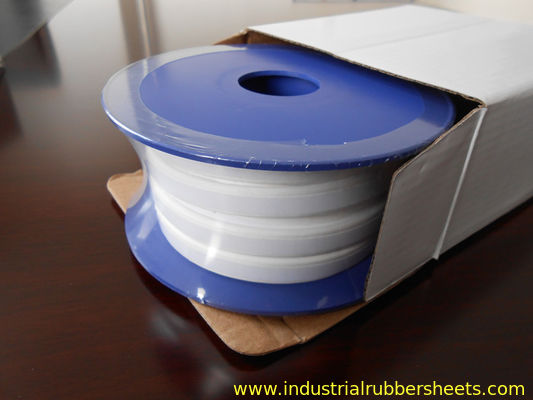

Food Grade PTFE Gasket Tape with Smooth Surface and High Temperature Resistance for Industrial Sealing
| Place of Origin | China |
|---|---|
| Brand Name | 3Arubber |
| Certification | RoHS/FCC/SGS |
| Model Number | 3A3005 |
| Minimum Order Quantity | 10rolls |
| Price | neogation |
| Packaging Details | packed in cartons |
| Delivery Time | 10 working days after recieved your payment |
| Payment Terms | L/C,T/T,Western Union,Paypal |
| Supply Ability | 100000rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure PTFE Dispersion Resin | Color | White |
|---|---|---|---|
| Quality | Food Grade | Adhesive | One Side Adhesive Or Not |
| Cross | Rectangle Or Round | Hardness | 30-70 Shore A |
| Working Temperature | -168℃-+280℃（maximum+135℃） | ||
| Highlight | ptfe thread sealant,ptfe thread seal tape |
||
Product Description
Food Grade PTFE Seal Tape with Smooth Surface

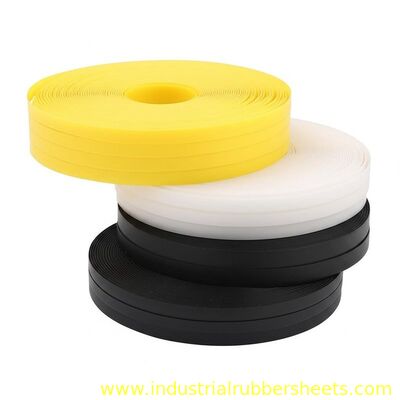

Premium PTFE packing seal tape available in white, black, and yellow colors. Manufactured using imported Daikin PTFE material, this expanded PTFE joint sealant tape features excellent flexibility, compression resilience, creep resistance, and outstanding performance across extreme temperature ranges.
Key Features
- Excellent corrosion resistance and non-aging properties
- Superior self-lubrication characteristics
- High and low temperature resistance (-168°C to +280°C)
- Available with or without backing adhesive
- FDA grade white color option available
- Exceptional creep resistance and compression resilience
Application Range
- Sealing various enameled, glass, plastic, rubber, and graphite linings
- Flange faces of stainless/titanium steel towers, heat exchangers, and reactors
- Pipeline and pipe fitting flange connections
- Large-diameter equipment with irregular surfaces or limited bolt fastening
- Strongly corrosive media and contamination-sensitive fluid systems
Technical Specifications
| Material | Pure PTFE Dispersion Resin |
|---|---|
| Color Options | White (FDA Grade), Black, Yellow |
| Adhesive | Available with or without backing adhesive |
| Surface | Smooth |
| Cross Section | Rectangle, Round |
| Tensile Strength | 8 MPa |
| Hardness | 30-70 Shore A |
| Density | 0.7-1.0 g/cm³ |
| Creep Relaxation | 70% |
| Volatility | 1.0% |
| PH Range | 0-14 |
| Working Pressure | 1.6 MPa (gas), 6.4 MPa (liquid) |
| Working Temperature | -168°C to +280°C (maximum +315°C) |
| Thickness Range | 1.5-7.0 mm |
| Width Range | 2.0-1500 mm |
Standard Sizes
Square Type
| Dimensions (Width x Thickness x Length) |
|---|
| 3mm x 1.5/2.0mm x 25/50m |
| 5mm x 2.0/3.0mm x 25/50m |
| 7mm x 2.0/3.0mm x 15/25m |
| 10mm x 3.0/5.0/7.0mm x 15/25m |
| 12mm x 3.0/5.0/7.0mm x 10/15/25m |
| 15mm x 3.0/5.0/7.0mm x 10/15/25m |
| 17mm x 3.0/5.0/7.0mm x 10/15/25m |
| 20mm x 3.0/5.0/7.0mm x 10/15/25m |
| 25mm x 3.0/5.0/7.0mm x 10/15/25m |
| 30mm x 3.0/5.0mm x 5/10m |
| 35mm x 3.0/5.0mm x 5/10m |
| 40mm x 3.0/5.0mm x 5/10m |
| 45mm x 3.0/5.0mm x 5/10m |
| 50mm x 3.0/5.0mm x 5/10m |
Round Type
Available diameters: Ø2.4mm, Ø3.0mm, Ø4.0mm up to Ø25.0mm
PTFE Expand Sheet
Standard sheet sizes: 1.5mm x 1500mm x 1500mm, 2.0mm x 1500mm x 1500mm, 3.0mm x 1500mm x 1500mm, 5.0mm x 1500mm x 1500mm

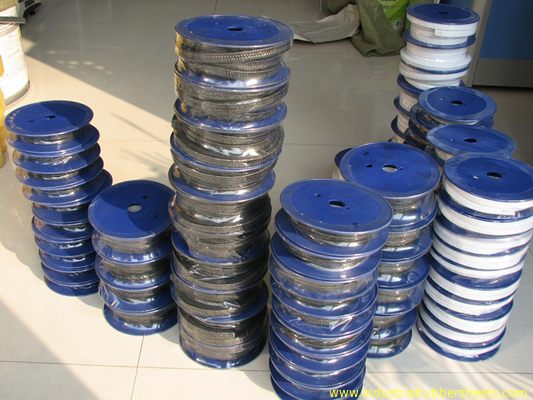

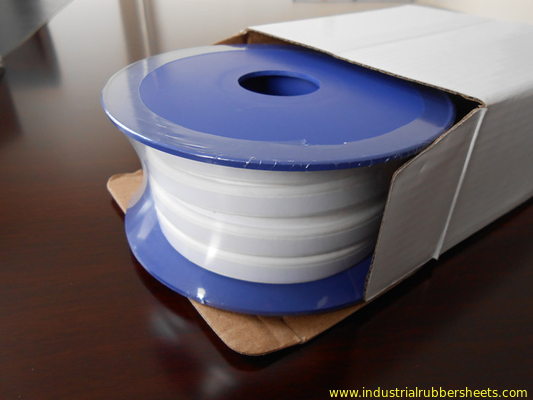

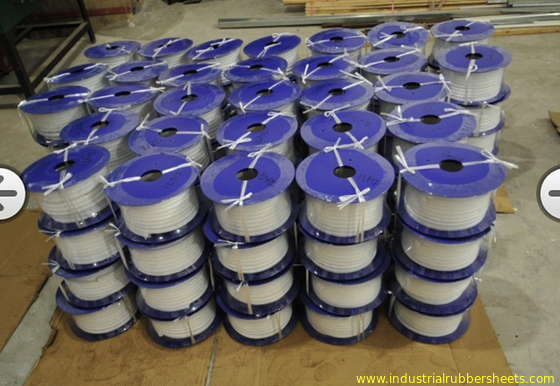

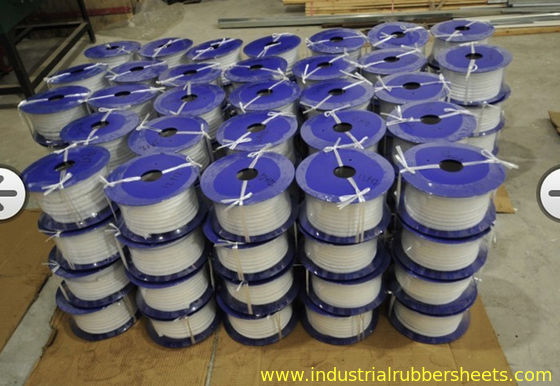

Custom OEM sizes available upon agreement. All products are packed in round spools and cartons.
Please specify required size and quantity when submitting your inquiry.
