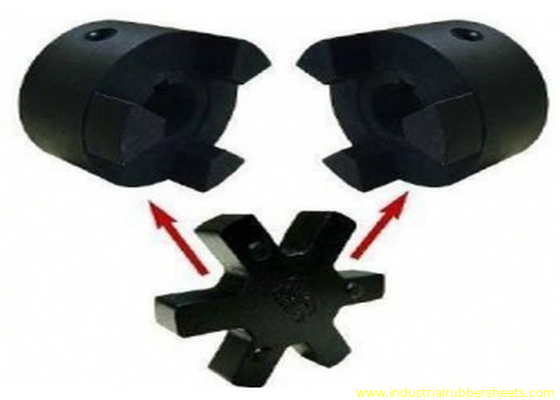

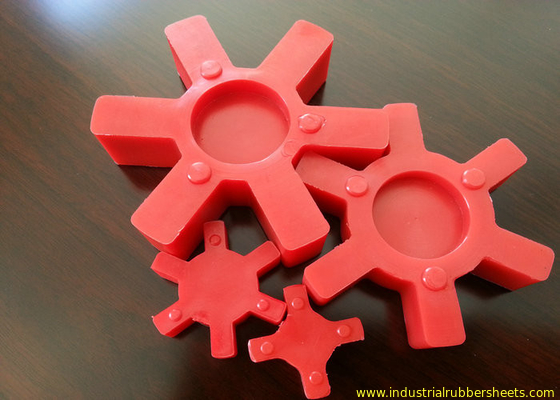

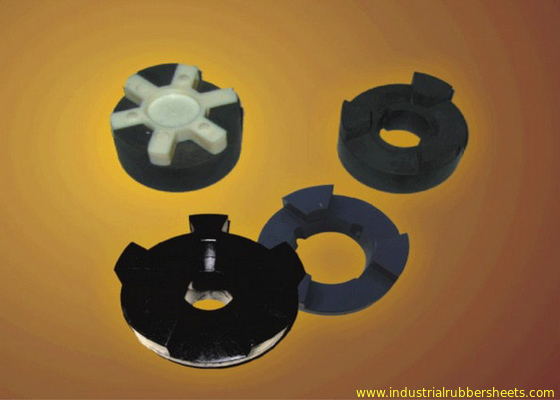

L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling

L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling
L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling

Large Image :  L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling

Product Details:
Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A2006
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Detailed Product Description
Material: NBR, CSM/SBR Or TPU Color: Black, Red
Hardness: 80-98shore A Size: L035-225
Working Temperature: -20oC - +100oC
High Light:

pu coupling

,

flexible jaw coupling

L type rubber coupling , L polyurethane coupling , L PU coupling

Specifications

1. Material :Cast iron GG25
2. Good stability
3. Easy to maintain
4. ISO9001-2000 certificate



Coupling:

1. Jaw coupling/ HRC coupling / KC coupling / FL coupling

2. Flange cast iron, Insert Bubber

3. Taper bore universal series

4. Keyway dimensions conform to DIN6885,GB1095-1979 standards.

L Type Flange Cast Iron Polyurethane Coupling , Flexible Jaw Coupling 0

Size Type A B D E Standard Metric Bore Inch Bore
Bore Min Max Min Max
L035 1 16 20.5 6.6 -- 3 3 8 1/8" 3/8"
L050 1 28 43.2 15.6 -- 6 6 15 3/16" 5/8"
L070 1 35 50.8 19 -- 9 9 19 3/16" 3/4"
L075 1 45 54.7 21 -- 9 9 25 3/16" 1"
L090 1 54 54.7 21 -- 9 9 28 3/16" 1 1/8"
L095 1 54 63.7 25.5 -- 9 9 28 3/8" 1 1/8"
L099 1 64.5 72.5 27 -- 12 12 35 7/16" 1 3/8"
L100 1 64.5 88.5 35 -- 12 12 35 7/16" 1 3/8"
L110 1 85 108 43 -- 15 15 48 1/2" 1 7/8"
L150 1 96 115.4 45 -- 15 15 48 5/8" 1 7/8"
L190 1 115 133.4 54 101.6 19 19 55 5/8" 2 1/4"
L225 1 127 153.4 64 108 19 19 65 3/4" 2 5/8"



Others standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R


standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
