Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color

China Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color supplier
Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color supplier Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color supplier

Large Image :  Economic HRC Polyurethane Coupling For Buffering Effect Of Torque With High Quality,Black Color

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ROHS/FCC/SGS
Model Number: 3A2006

Payment & Shipping Terms:

Minimum Order Quantity: 10pieces
Price: negotiation
Packaging Details: Packed in cartons
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, L/C, Paypal, Western Union
Supply Ability: 10000kgs per month
Contact Now
Detailed Product Description
Material: TPU, NBR Or CSM/SBR Color: Black
Hardness: 80-98shore A Size: HRC70-280
Working Temperature: -20oC - +100oC

HRC rubber coupling , HRC polyurethane coupling , HRC PU coupling

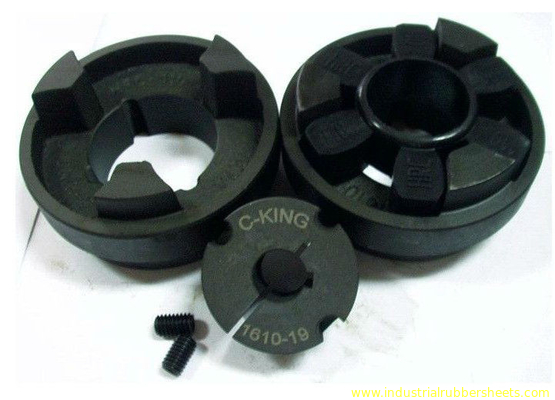

HRC Flexible Coupling

1) Body material:H igh quality cast iron

2) Rubber Material:NBR

3) Easy to install

4) High Torque,Long Life



HRC Flexible Coupling

Features:

1) Maintenance, actually HRC coupling doesn't need maintenance, also does not need lubricant

2) Environmental, elastic components make HRC coupling applies to a variety of working conditions.

3) Reliable transmission, in case of elastic component is damaged, the dog segment whichcasted siamesedly still keep the transmission processing reliably.

4) Economic, HRC couplings have already been made of optimization design, which make transmission power match the transmission shaft diameter.

5) Good recovery capacity, elastic components can reduce the load at the peak moments, and the deviation is a major consideration when designing.

6) Adaptability of misalignment, HRC can coupling contains parallel shift, angle shift and axis shift which happen some times.

7) Taper sleeve, push-pull type taper sleeve is standard for HRC coupling.





Specifications

HRC rubber coupling
1. Good buffer
2. Easy to Installation and dismantling
3. Long life
4. OEM



HRC rubber coupling  advantage :

1. It is easy to maintain ,no need the toole can install

2. Can undertake high torque

3. Have the good buffer .

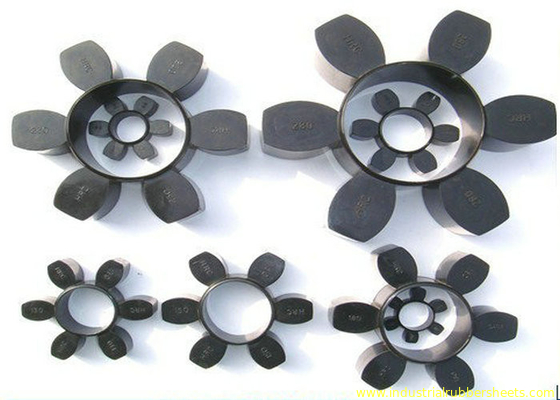

HRC polyurethane coupling, rubber coupling parameters and data :



No. OD(mm) ID(mm) Thickness1(mm) Thickness2(mm) Fins Qty Hardness Color
HRC70 59 30 13 16 6 92/88SH A Yellow
HRC90 72 31 18 22 6 92/88SH A Yellow
HRC110 96 45 22 29 6 92/88SH A Yellow
HRC130 116 50 30 36 6 92/88SH A Yellow
HRC150 134 62 33 40 6 92/88SH A Yellow
HRC180 160 76 40 48 6 92/88SH A Yellow
HRC230 203 95 50 60 6 92/88SH A Yellow
HRC280 252 120 64 74 6 92/88SH A Yellow





Others standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R


standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
