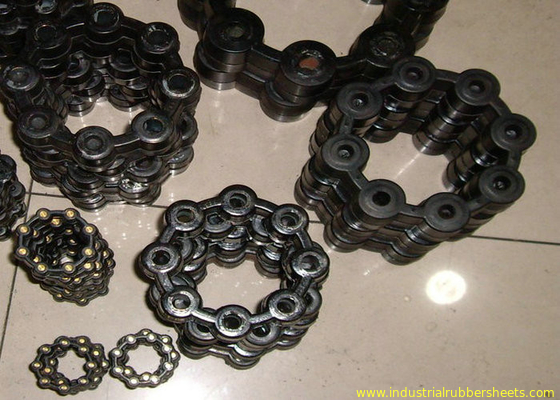

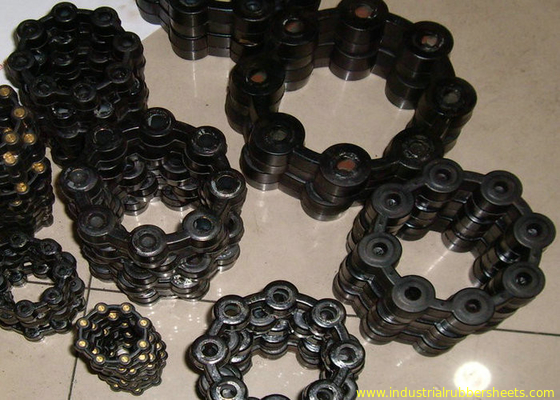

Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200

Certification
Good quality Silicone Rubber Sheet for sales
Good quality Silicone Rubber Sheet for sales
I'm Online Chat Now

Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200

China Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200 supplier
Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200 supplier Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200 supplier Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200 supplier

Large Image :  Black MH Polyurethane Coupling Of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200

Product Details:

Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A2006

Payment & Shipping Terms:

Minimum Order Quantity: 10pieces
Price: connect with us
Packaging Details: packing in cartons
Delivery Time: 10-20days
Payment Terms: D/P, Western Union, MoneyGram, Paypal
Supply Ability: 100000pieces/month
Contact Now
Detailed Product Description
Type: MH45-200 Material: NBR, Polyurethane
Hardness: 70, 90, 95, 98shore A Color: Black, Yellow, Red
Size: MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200 Packing: In Cartons

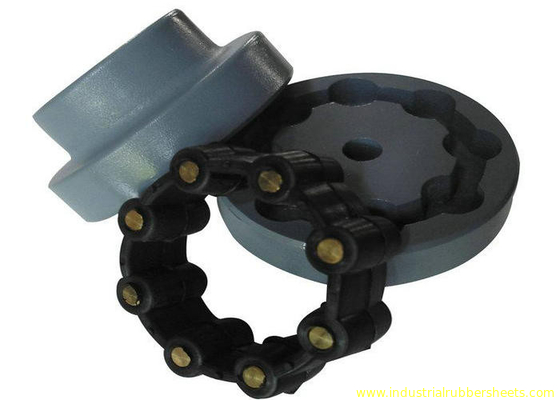

MH Rubber Coupling , MH Polyurethane Coupling of MH45 , 55 , 65 , 80 , 90 , 115 , 130 , 145 , 175 , 200

Specifications

MH Coupling,mh flexible coupling
Cast iron, Rubber material
Standard and non-standard coupling available

We are the leading top Chinese coupling manufacturer, and are specializing in various high quality MH Coupling,mh flexible coupling

1. Material: Cast iron, Rubber.

2. OEM and ODM are available

3. High efficient in transmission

4. Finishing: Blacken,Painted.

5. High quality with competitive price

6. Different models suitable for your different demands

7. Stock for different bore size on both sides available.

8. Application in wide range of environment.

9. Quick and easy mounting and disassembly.

10. Resistant to oil and electrical insulation.

11. Identical clockwise and anticlockwise rotational characteristics.

12. Small dimension, low weight, high transmitted torque.

13. It has good performance on compensating the misalignment.

14.Coupling Type :MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200



Applications:

MH couplings are offered in the industry’s largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.  Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.





MH No. OD(mm) ID(mm) Petal Diameter(mm) Thickness(mm) Petal Qty
45 39 21 8 15 8
55 47 25 11 16.5 8
65 57 33 12 19 8
80 73 40 16 24 8
90 83 47 18 24 8
115 105 60 23 32 8
130 115 60 26 35 8
145 125 69 28 40 8
175 155 87 34 47 8
200 178 98 40 53 8






made by injection with high quality polyester or mould CSM/SBR. It is designing and special for all kinds of metal shaft coupling with very good performance of high tensile strength, high wear resistant, high elastic resilience, water resistant, oil resistant and excellent fatigue resilience, high impact resistant etc. We have full sets moulds and supply full range of GR, GS, MT, ML, MH, Hb, HRC, L, T, NM and Gear J series couplings with high quality and excellent experience. Apply to all kinds of industrial metal shaft coupling.



Specifications:
material: polyester, CSM/SBR, NBR, nylon
color: yellow, red, purple, green, black, beige etc.
surface: smooth
tensile strength: 12-55Mpa
hardness: 80-98Shore A
elongation: 400%-650%
density: 1.25g/cm3
elasticity impact: >25%
tear strength: 35-155KN/m
akron abrasion loss: <0.05cm3/1.61km
compression set (22h*70oC): <10%
working temperature: 120oC
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings

standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
