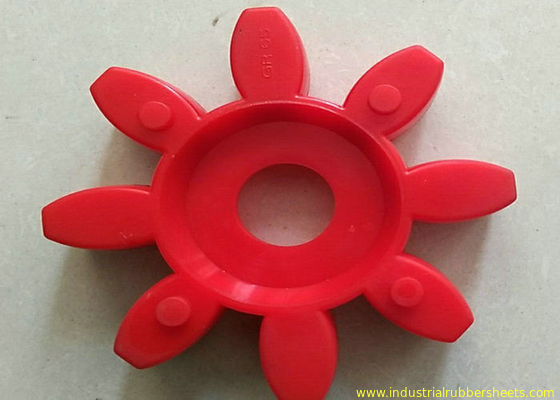

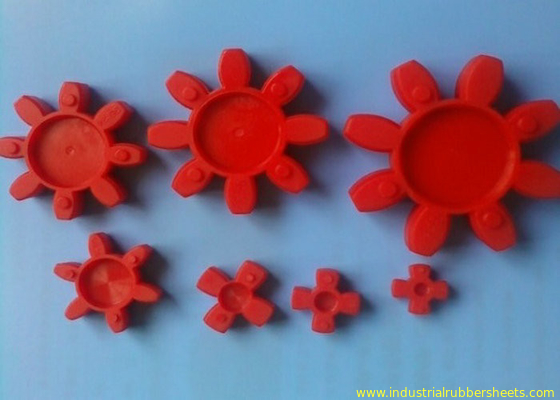

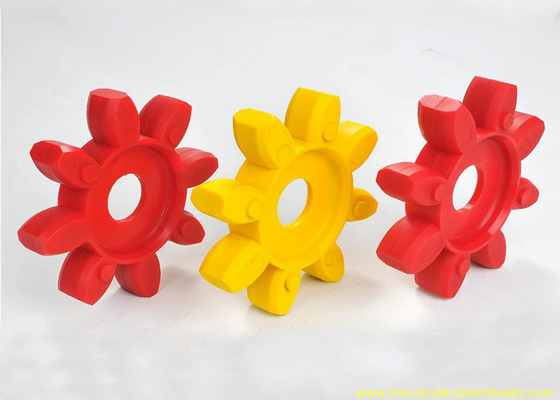

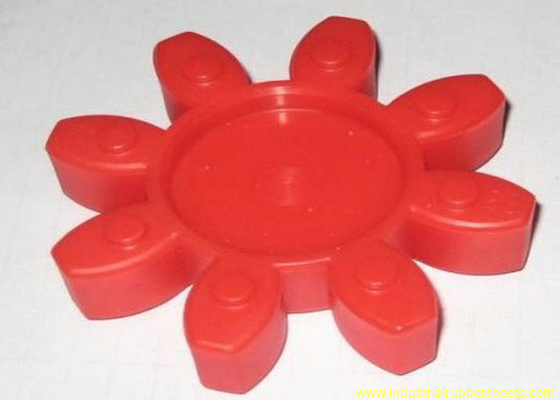

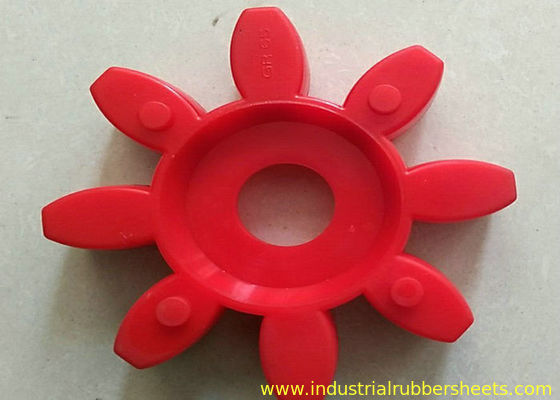

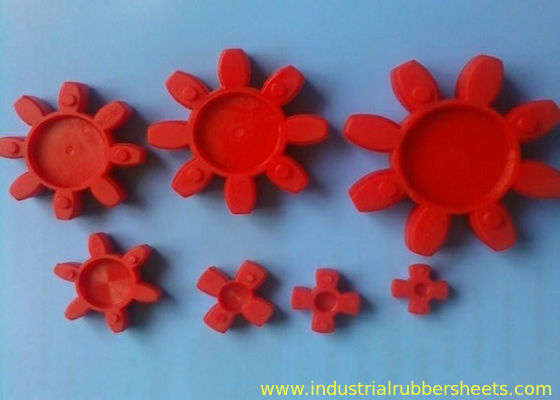

GS Shaft PU Elastic Spider Polyurethane Coupling For Air Compressor

10pieces
MOQ
connect with us
Price
GS Shaft PU Elastic Spider Polyurethane Coupling For Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Type: GS Type
Material: Virgin Polyurethane
Color: Red, Yellow
Hardness: 98, 95, 90shore A
Tensile Strength: 30-55Mpa
Elongation: 690% Maximum
Density: 1.25g/cm3
Size: Standard Size For GS Type
High Light:

rubber coupling

,

pu coupling

Basic Infomation
Place of Origin: China
Brand Name: 3A Rubber
Certification: ISO9001
Model Number: 3A2006
Payment & Shipping Terms
Packaging Details: packing in cartons
Delivery Time: 10-20days after receive prepayment
Payment Terms: L/C, , D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000pieces/month
Product Description



GS Elastic Spider , GS Shaft Coupling , PU Elastic Spider , Polyurethane Coupling for air compressor



GS Shaft PU Elastic Spider Polyurethane Coupling For Air Compressor 0

Packaging & Delivery

Packaging Details: Woven Bags, Carton, Pallet, Veneer, Wooden Case, as per customer's requests
Delivery Detail: 10-20 days after receiving the deposit money





Type No. OD(mm) ID(mm) Thickness1(mm) Thickness2(mm) Petal Qty
GS14 30 10 13 10 4
GS19 40 18 16 12 6
GS24 55 27 18 14 8
GS28 65 30 20 15 8
GS38 80 38 24 18 8
GS42 95 46 26 20 8
GS48 105 51 28 21 8
GS55 120 60 30 22 8
GS65 135 68 35 26 8
GS75 160 80 40 30 10
GS90 200 100 15 34 10
GS100 225 113 50 38 10
GS110 255 127 55 42 10
GS125 290 147 60 46 10
GS140 320 165 65 50 10
GS160 370 190 75 57 12
GS180 420 22 85 64 12



Specifications

GS Shaft coupling PU elastic spider for air compressor
1) High performance quality
2) Direct supplier
3) Competitive

GS Shaft coupling PU elastic spider for air compressor



Product Information:


Applications:


1. Rubber star coupling is used for connecting the two different institution shaft make common rotation in transmission torque of mechanical parts.

2. Different of kinds Flexible Couplings can be made ,such as Rubber, Nylon.

3. Various Couplings  can be produced when you offer drawings.

4. Zero clearance, can turn in synchronicity.





Features:


1) Outstanding abrasion resistance
2) High tensile and tear strength
3) Resistance to oils, fuels, and oxygen
4) Fabulous weatherability and high impact resistance
5) Low compression set





Packing: Woven Bags, Carton, Pallet, Veneer, Wooden Case, as per customer's requests

Delivery: 10-20 days after payment



Shipment:

1) Small order: By express DHL, TNT, UPS, EMS, SHUNFENG
2) Large order: By sea or by air
3) Choose the best and convenient way for your need



Payment:

1) We accept T/T, L/C, D/P, Paypal, Western Union
2) For small account, we suggest pay by Western Union





II Other Information:


 Our Advantages:

1) 10 years Verified Supplier
2) Consistent with ISO9001
3) Complete varieties
4) High performance
5) Excellent quality
6) Quality service
7) Direct supplier
8) Competitive price



Other Services:

1) Size, Hardness and Color alterable
2) Custom Design Available
3) OEM, ODM Acceptable





standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210

standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings

standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
